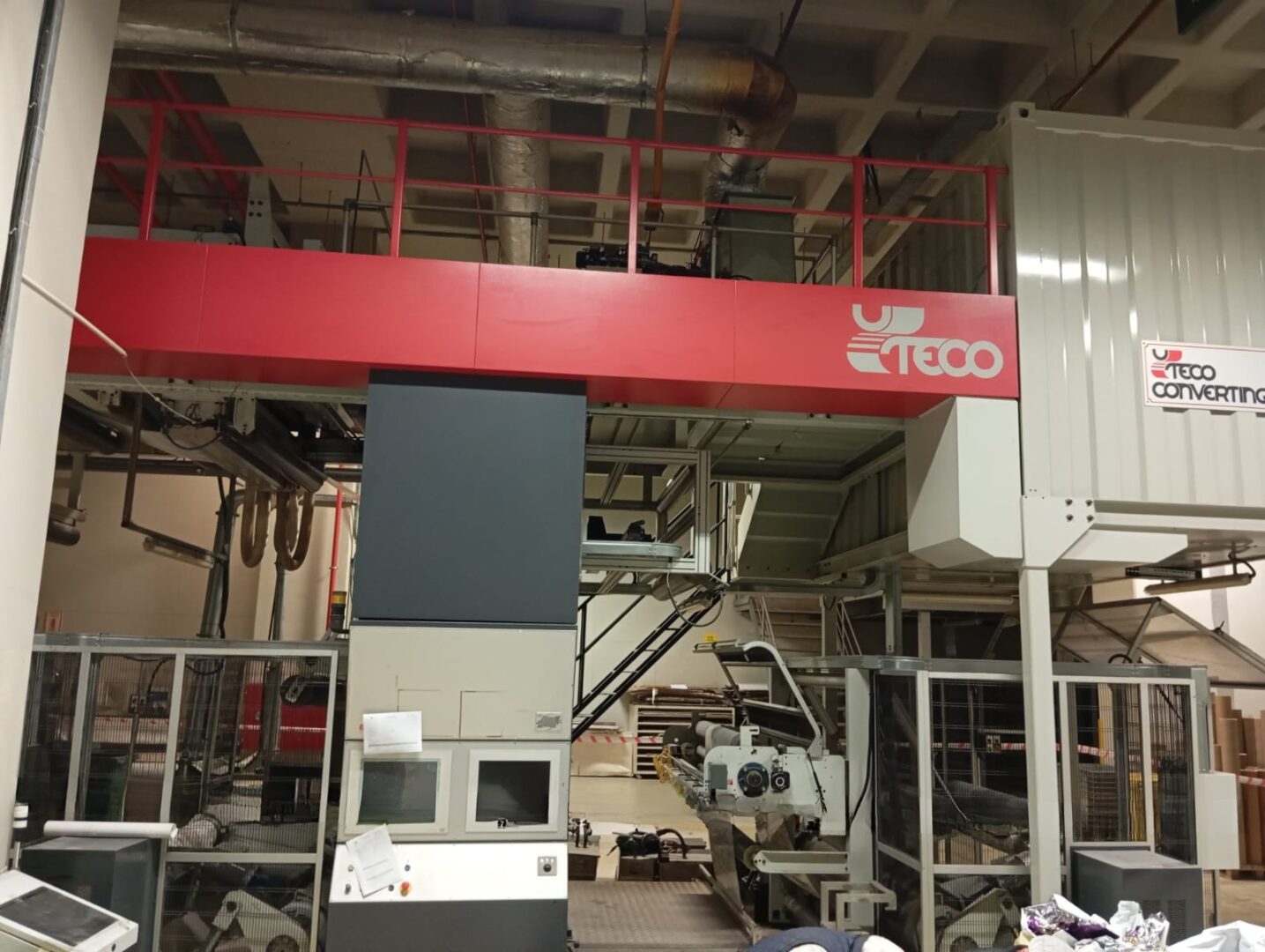

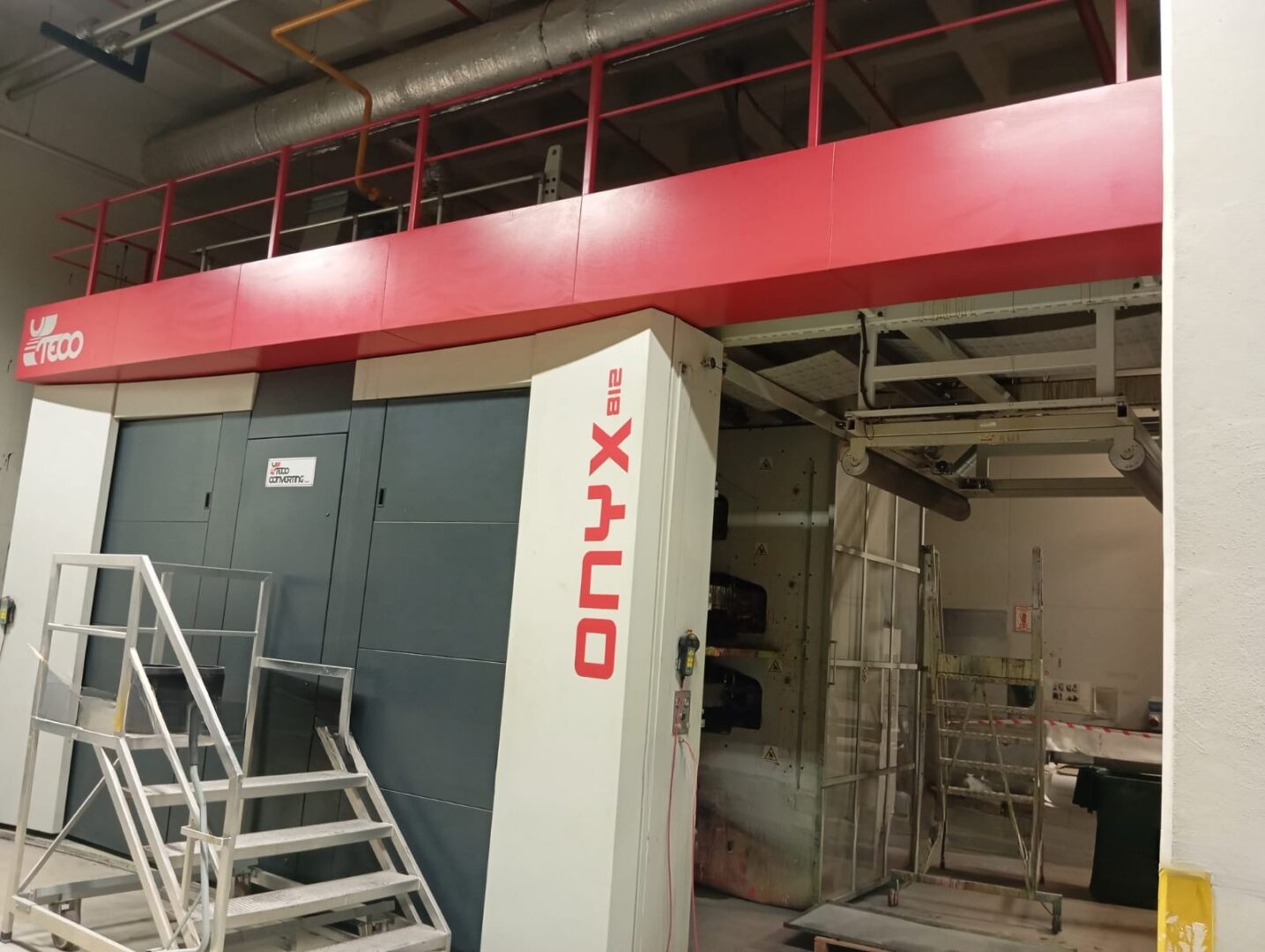

UTECO ONYX 812 – 8 Colour CI Flexographic Printing Press

UTECO ONYX 812 central impression flexographic printing press with a maximum printing width of 1,800 mm and a maximum print repeat of 1,250 mm. Configured for 8 colours or 7 colours plus varnish, with automatic impression pressure and register control and a maximum mechanical speed of 400 m/min.

Technical Specifications

• Maximum printing width: 1,800 mm
• Maximum print repeat: 1,250 mm
• Number of colours: 8 colours, or 7 colours + varnish
• Coating type: conventional
• Maximum unwinder reel diameter: 1,500 mm
• Maximum rewinder reel diameter: 1,500 mm
• Maximum mechanical speed: 400 m/min

Equipment

• Automatic impression pressure and register control
• Automatic washing system
• UTECO camera system

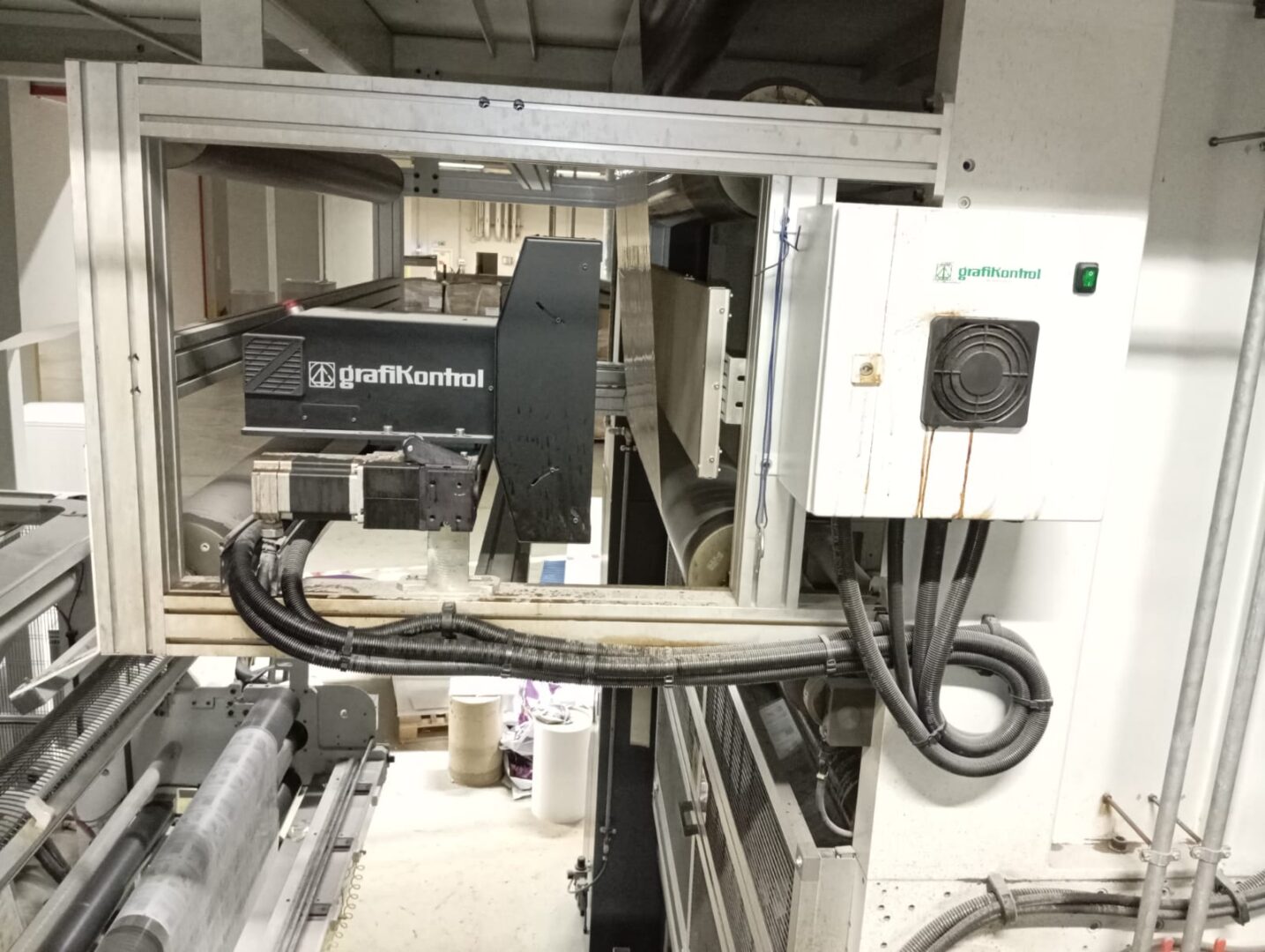

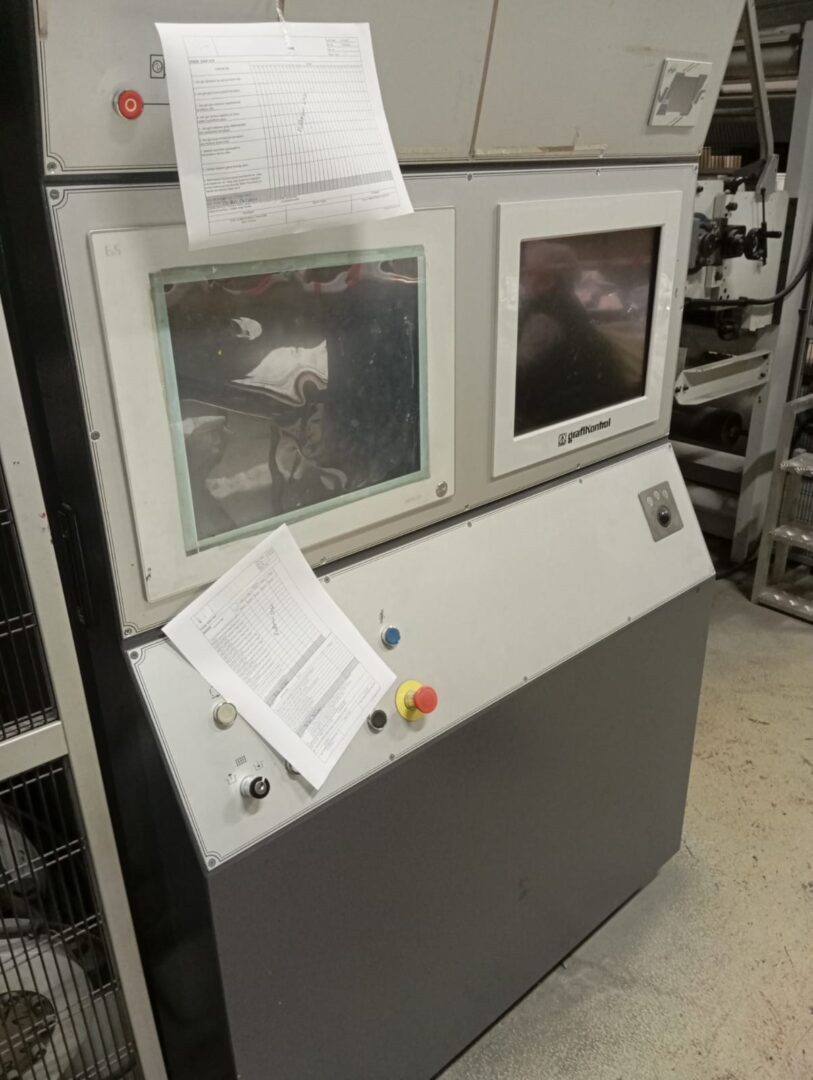

• Grafi-Kontrol quality control system
• Central impression drum cleaning system
• KISS & GO system
• Plate mounting unit

Included Sleeves

8 sleeves in each of the following sizes: 400, 600, 680, 790, 800, 855, 960, 1,000, 1,070 and 1,140 mm (80 sleeves in total).

Included Anilox Rolls

• 4 × 340 V5
• 2 × 240 V8
• 1 × 140 V10
• 1 × 100 V12
