• Machine Type: Central Impression (CI) Flexographic Printing Press
• Gearless Drive: Yes
• Number of Printing Colors: 8
• Ink Type: Solvent-Based
• Machine Status: In Production
• Available From: August 2026
• Latest Removal Date: December 2026

Technical Specifications

• Maximum Web Width: 1,300 mm
• Maximum Printing Width: 1,250 mm
• Printing Repeat Range: 320 – 800 mm
• Maximum Mechanical Speed: 400 m/min

Suitable Materials

The machine is suitable for printing on: PE, OPP, CPP, PA, PET and Paper

• Material Thickness Range:
  • Minimum: 12 micron
  • Maximum: 200 micron

Unwinder

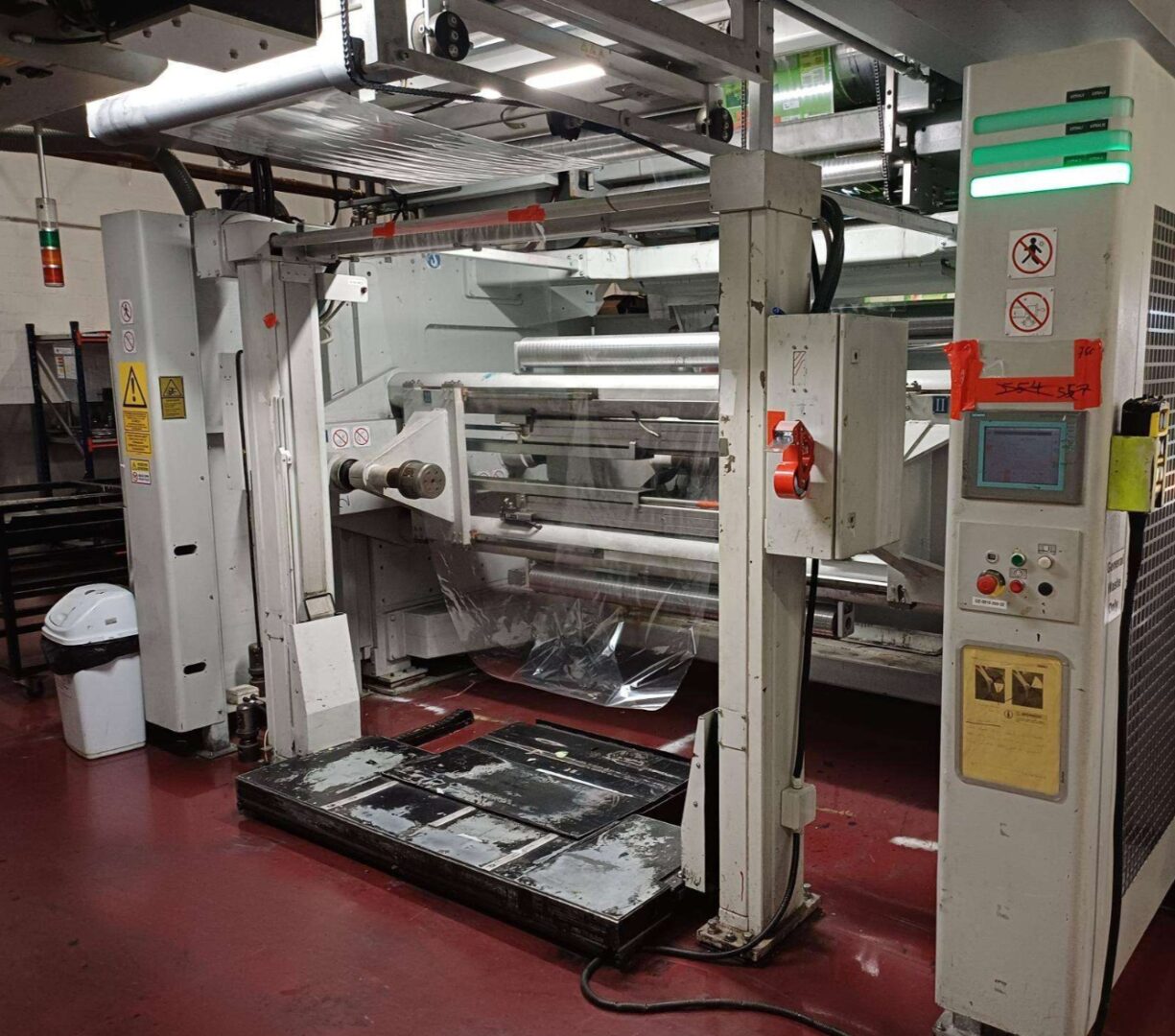

• Automatic Turret Unwind
• Shafted & Shaftless Operation
• Maximum Reel Diameter: 1,000 mm

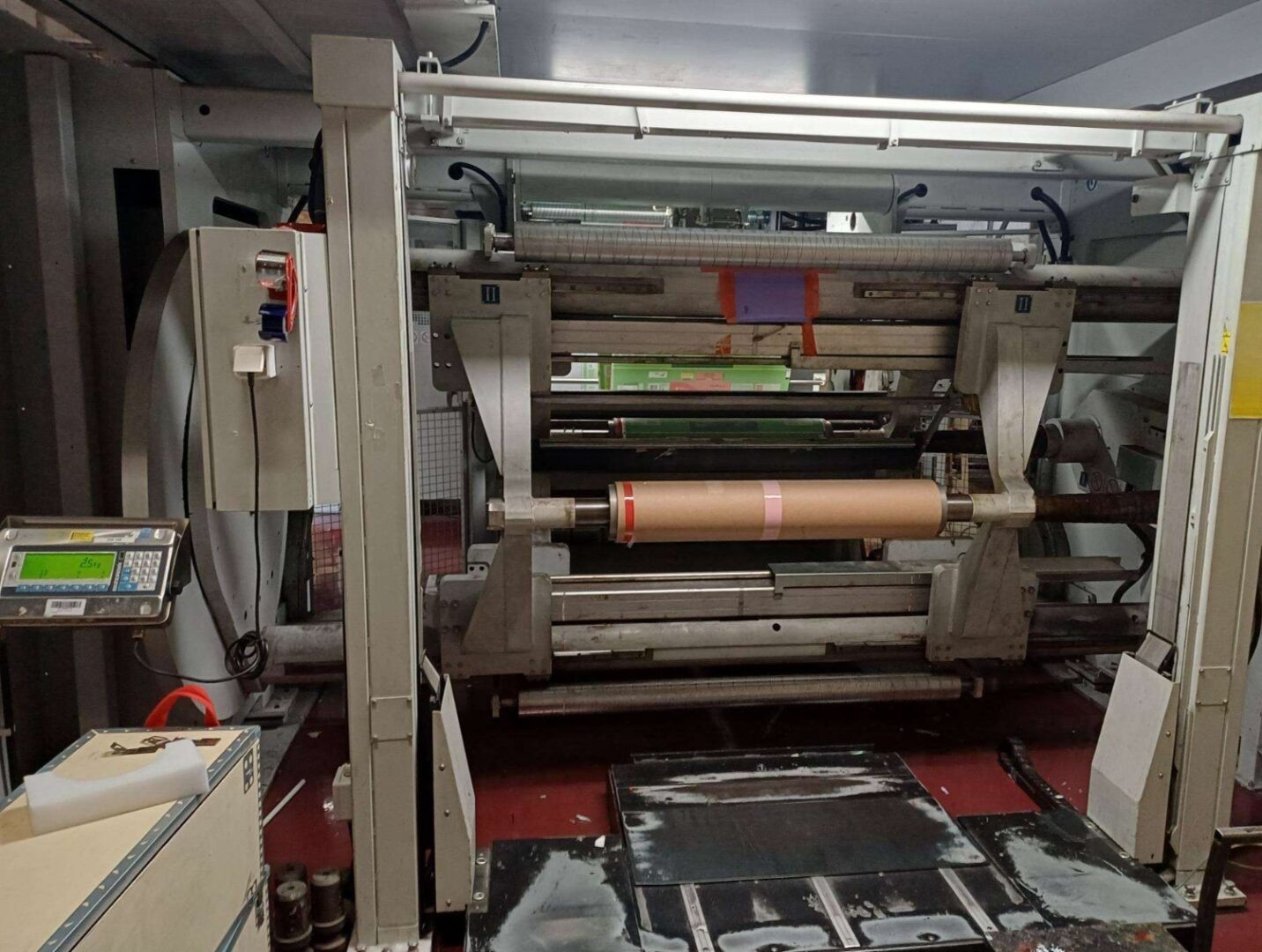

Rewinder

• Automatic Turret Rewind
• Shafted & Shaftless Operation
• Maximum Reel Diameter: 1,000 mm
• 2 Air Shafts (Ø150 mm)

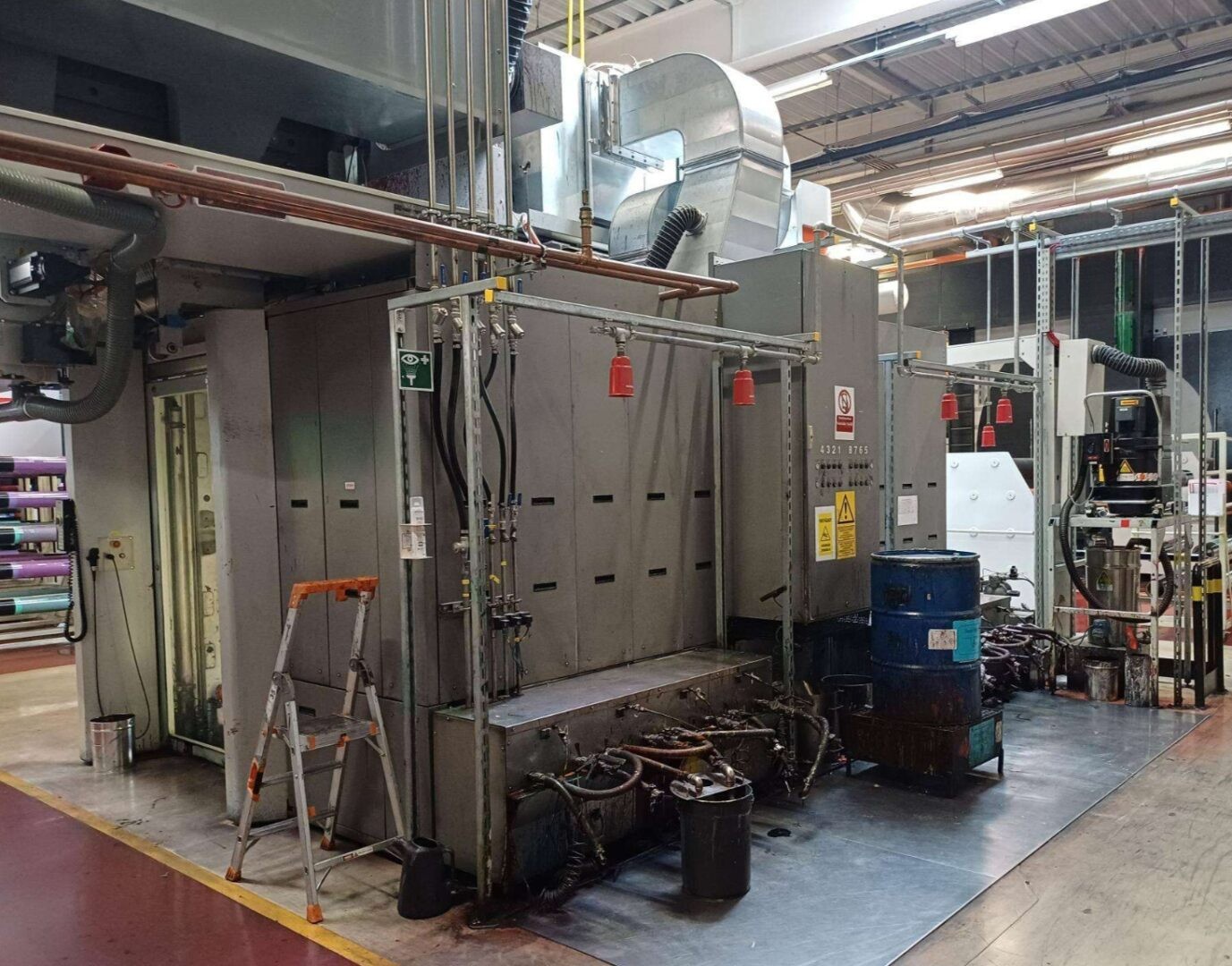

Drying System

• Gas Drying System

Machine Equipment

• Web Guide System
• Video Camera Inspection
• AFS Single Side 6 kW Corona Treater
• Automatic Cleaning System
• INKSPEC Viscosity Control (3 Solvents)
• Medium Cut Inline Slitting
• Mounting Device Included

Included Accessories

• 38 Anilox Rollers
• 649 Printing Sleeves
• 36 Intermediate Sleeves (4 Different Sizes)
• Set of Sleeves & Anilox Rollers
• Basic Trolleys
• High-Pressure CO₂ System
• Basic Spare Parts
• Machine Manuals

Printing Tool Inventory

Sleeves:

• Total Quantity: 649 pcs
• Various Repeat Sizes Available

Anilox Rollers:

• Total Quantity: 38 pcs
• Multiple Cell Volumes Available

Adapters:

• 370 mm, 450 mm, 500 mm, 540 mm, 600 mm (9 pcs of each size)

Doctor Blade Chambers:

• 12 pcs

Machine Highlights

• 8-Color Gearless CI Flexographic Printing Press
• High-Speed Production up to 400 m/min
• Solvent-Based Printing
• Automatic Turret Unwind & Rewind
• Fully Equipped with Corona Treatment
• Automatic Cleaning System
• Camera Inspection System
• Comprehensive Sleeve & Anilox Package Included
• Machine Available for Inspection in Production
