• HHS two guns C200 system and glueing wheel; straight line folding and gluing,
• Automatic crash-lock bottom,
• 3-point (automatic bottom) and 4-corner option,
• Complete glue application system included.

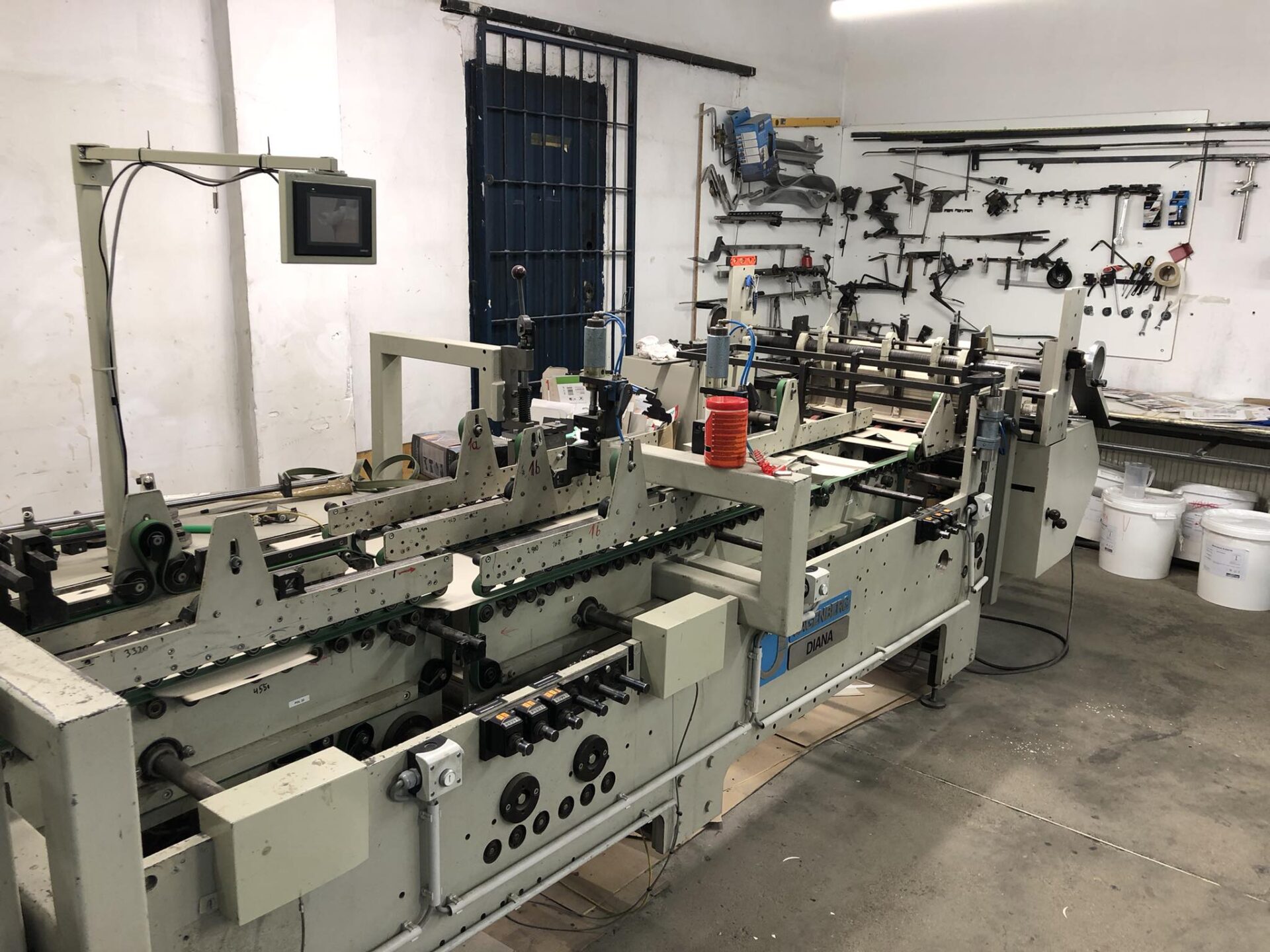

JAGENBERG DIANA 105-2 FOLDER GLUER

General Information

• Manufacturer: Jagenberg
• Model: Diana 105-2
• Machine Type: Folder Gluer
• Suitable Applications: Folding Cartons, Straight Line Boxes, Crash Lock Bottom Boxes, Double Wall Boxes and Specialty Cartons

Box Styles

The Diana 105-2 is designed for the production of:

• Straight Line Boxes
• Crash Lock Bottom Boxes
• Double Wall Boxes
• 4-Corner Boxes
• 4-Corner Boxes with Lid
• 6-Corner Boxes
• Specialty Folding Cartons

Machine Capacity

• Manual Set-Up
• JAGSET-2 Automatic Set-Up Available
• Wide Range of Carton Sizes
• High Production Efficiency

Materials

Suitable for processing:

• Folding Boxboard
• Solid Board
• Corrugated Board
• Single Wall Corrugated Board
• Double Wall Corrugated Board

Board Thickness

Suitable for:

• Paperboard up to 250 g/m²
• Corrugated Board up to 900 g/m²
• Heavy Board Applications

Gluing System

• Multiple Glue Pattern Capability
• Microprocessor Controlled Glue Application
• HHS C-500 Glue Control System
• Programmable Glue Patterns
• Electronic Glue Monitoring

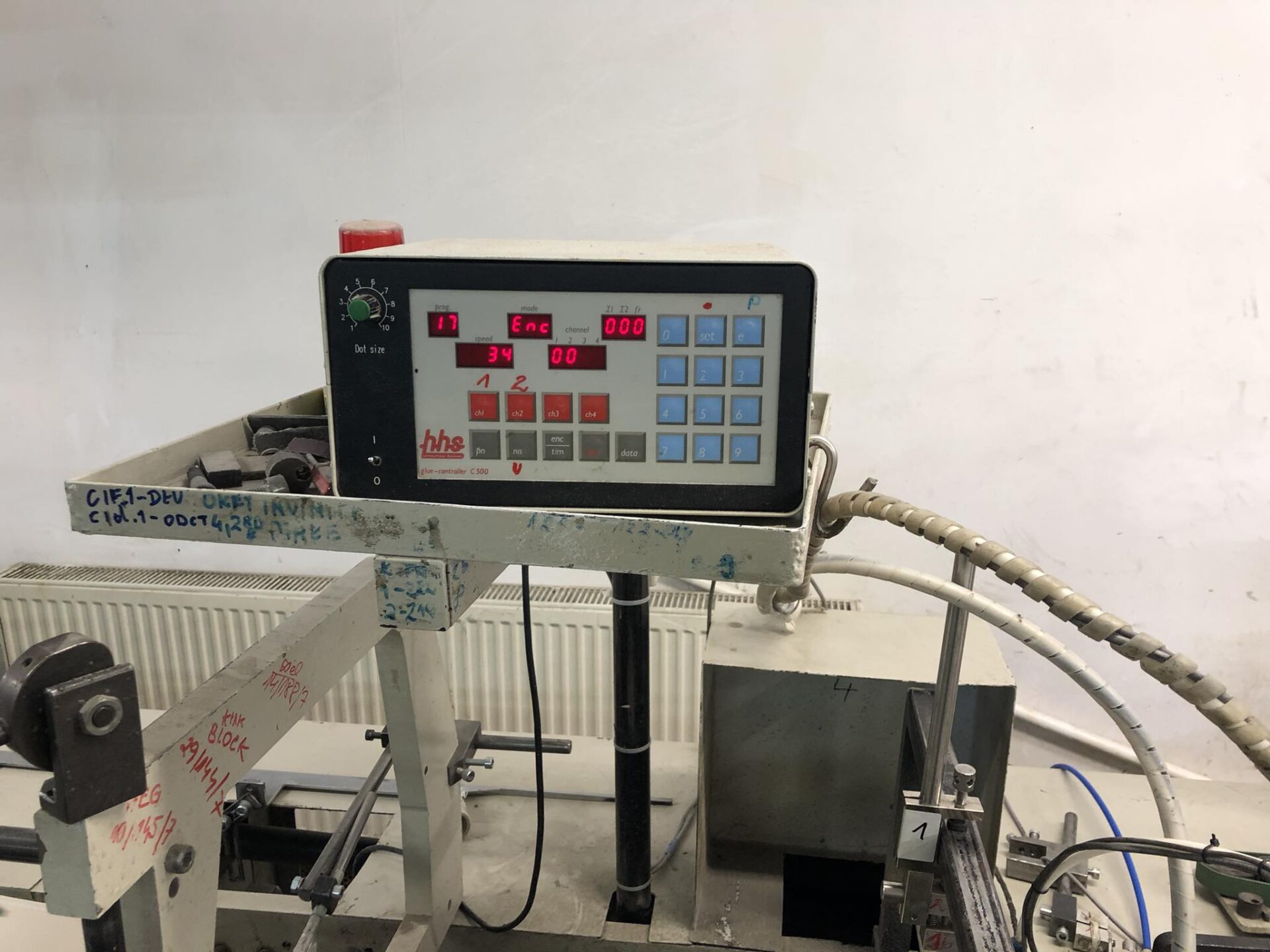

HHS Glue Controller

• HHS C-500 Microprocessor Controller
• Software Version 1.3
• Programmable Glue Jobs
• Up to 99 Stored Glue Programs
• Maximum Machine Speed:
  300 m/min
• Maximum Blank Length:
  999.9 mm

Electrical Specifications

• Power Supply:
  220 V
• Frequency:
  50 / 60 Hz
• Protection Class:
  IP40

Machine Features

• Fast Job Change
• Electronic Glue Monitoring
• Automatic Glue Pattern Storage
• Encoder Controlled Glue Application
• Digital Parameter Setting
• Precision Folding
• High Accuracy Carton Production

Machine Highlights

• Reliable High-Speed Folder Gluer
• Suitable for a Wide Variety of Folding Cartons
• HHS Electronic Glue Control System
• Programmable Glue Patterns
• Heavy Duty Construction
• Ideal for Commercial Folding Carton Production

Typical Products

This machine is suitable for manufacturing:

• Pharmaceutical Cartons
• Food Packaging
• Cosmetic Boxes
• Confectionery Boxes
• Beverage Packaging
• Electronics Packaging
• Healthcare Packaging
• Consumer Goods Cartons
• Folding Cartons
• Retail Packaging
• Luxury Packaging
• Promotional Boxes

,
