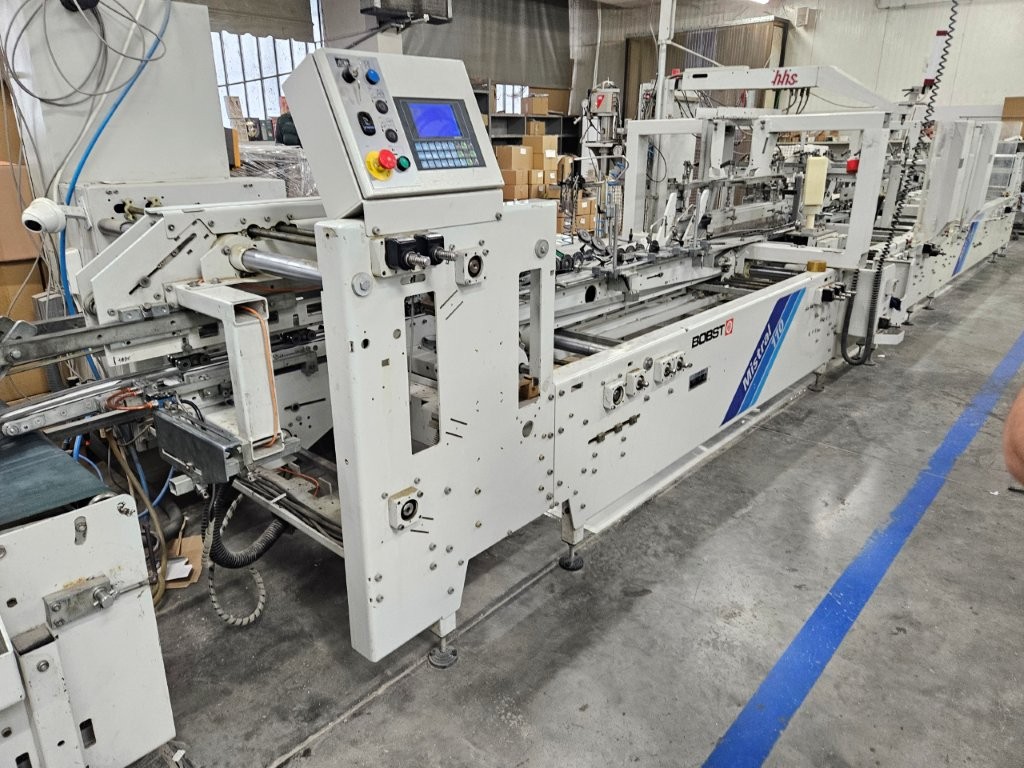

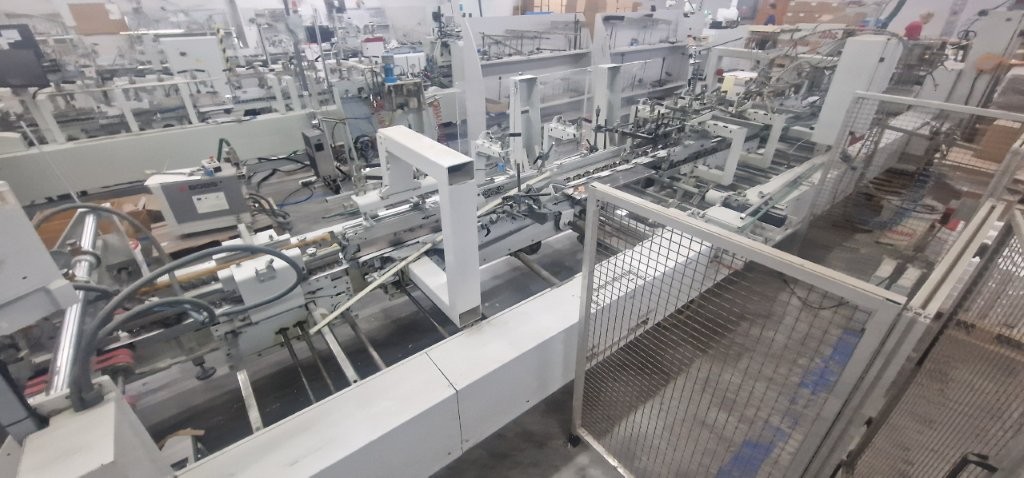

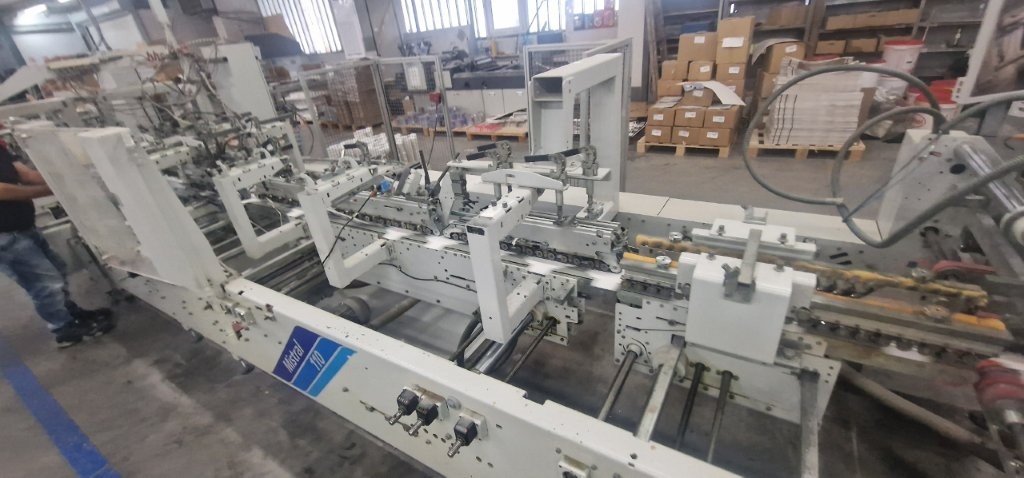

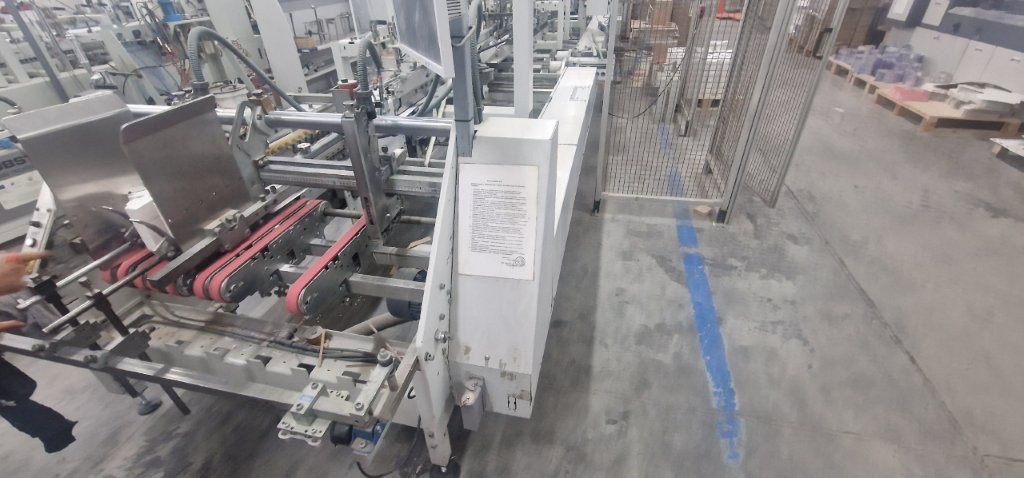

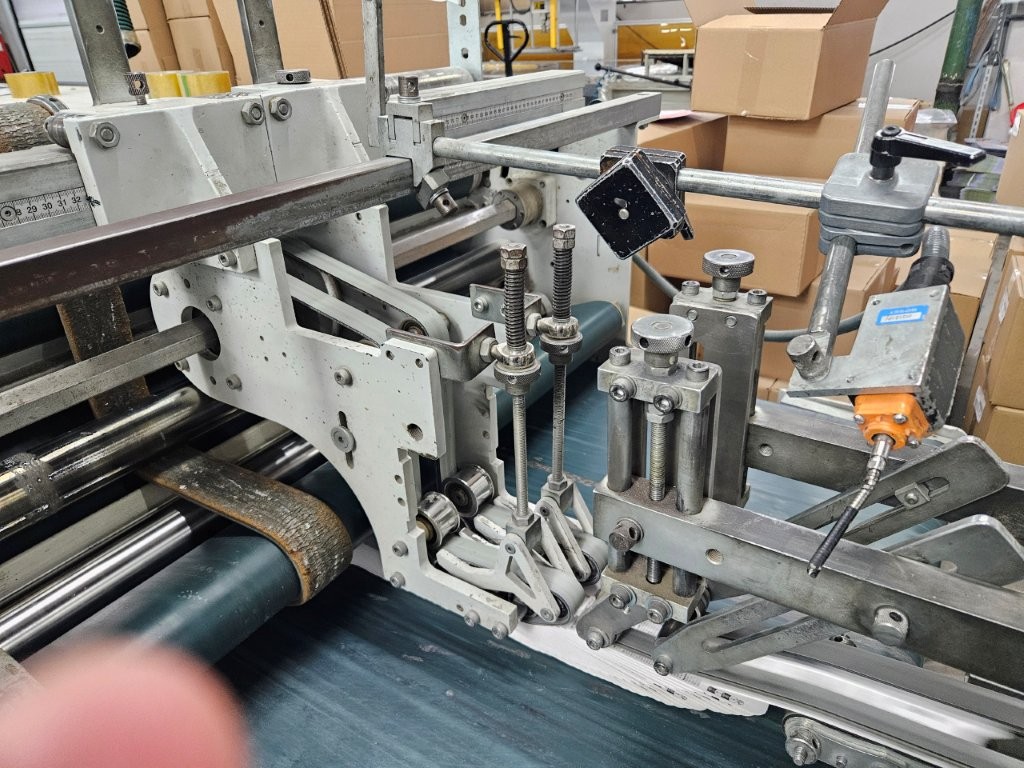

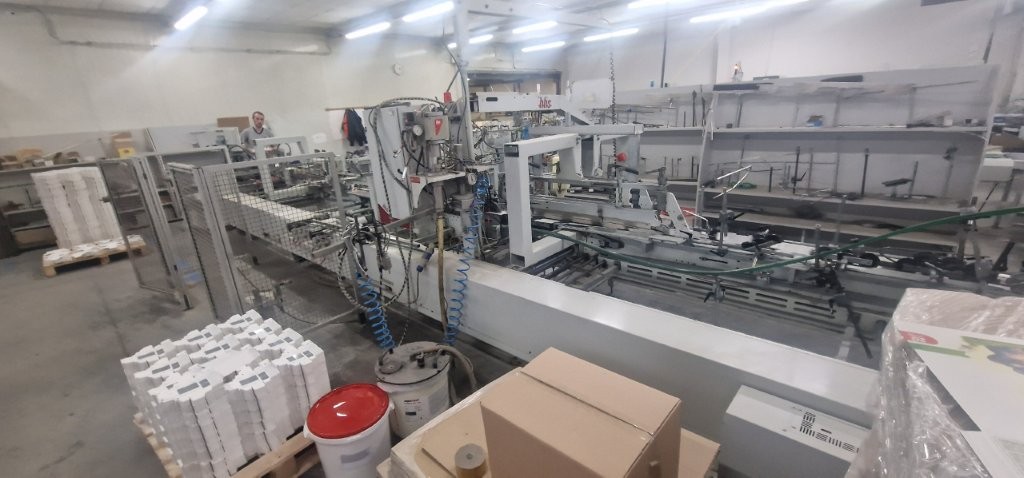

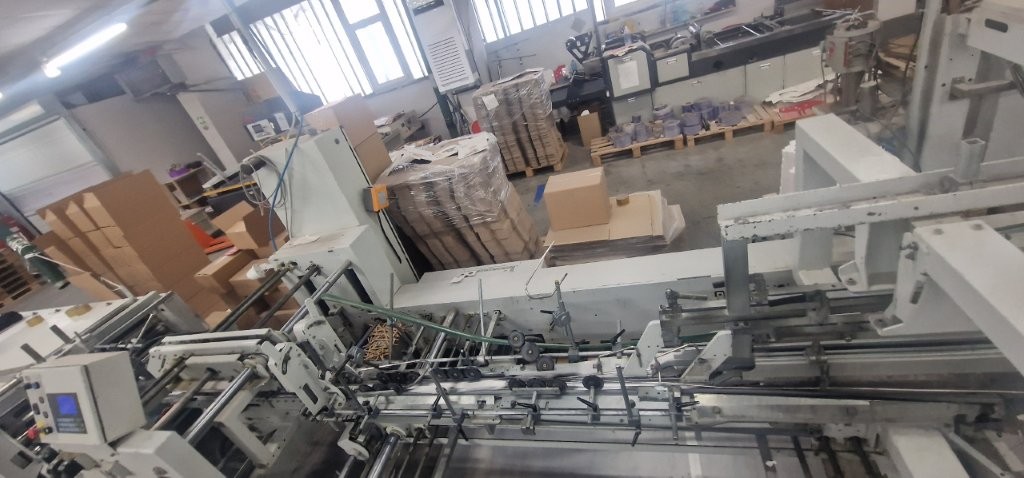

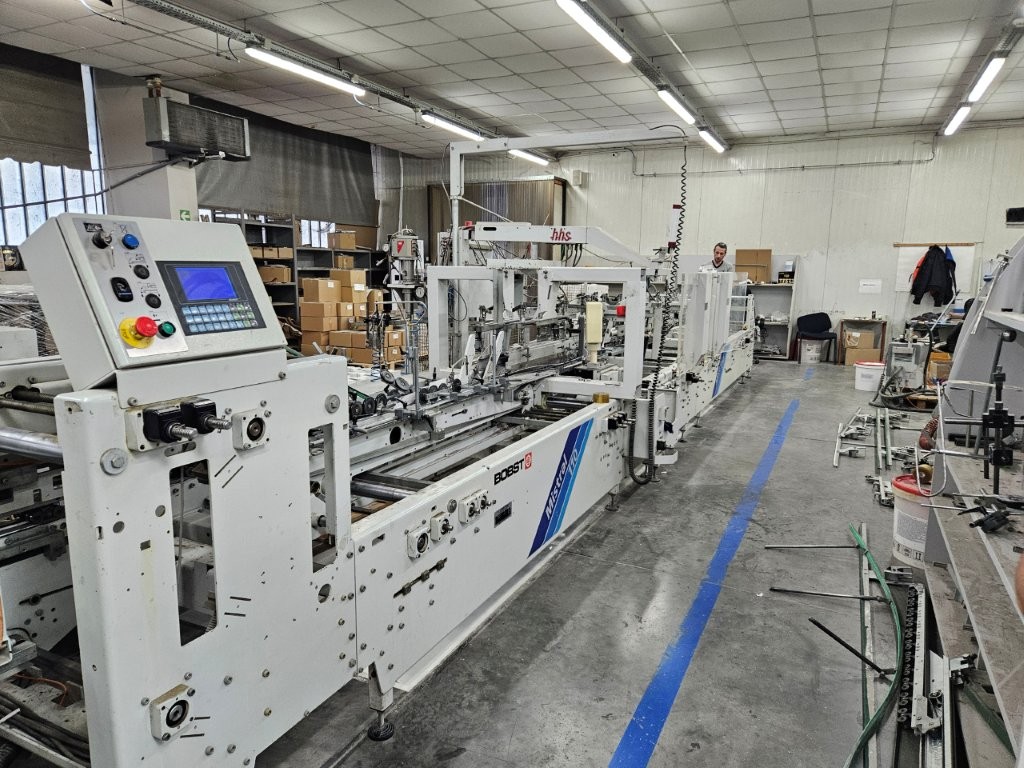

• The BOBST Mistral 110 A2 is a high-performance folder gluer designed for various folding carton and corrugated board applications.
• 6 gluing points
• HSS glue control system
• 4 cold glue nozzles
• Lower left gluing system with glue disc and double scraper
• Removable glue tank
• Automatic glue level control system
• Kurandt lower glue trace detector
• Kurandt Compact Series code reader
• BOBST rotary ejector with box advancement device
• Left alignment conveyor
• Main gauge with lateral and longitudinal adjustment
• Gauge blade with blower
• Electric pile vibrator
• Lower central conveyor
• Upper central conveyor
• Central lower and upper conveyors
• Motorized longitudinal adjustment of the lower transport arms
• Left and right introducer
• Upper pressure belt
• Delivery inspection mirror
• Left and right introducer / rectifier system
• Pneumatically operated correcting pegs for box squaring
• Pre-breaking / bending device
• Reinforced crash-lock bottom tooling
• Automatic lateral correction system for upper and lower belts
• Automatic belt tensioning system
• Pneumatic pressure system
• Frequency-controlled drives
• Digital position indicators
• Folding belt lifting devices
• Equipment for boxes with protruding flaps
• Glue presence and glue trace monitoring
• Automatic rejection of non-conforming boxes

Confirmed BOBST / Accessory Codes

• B-5 – Pre-breaking / bending device
• B-13 – Additional tooling for reinforced crash-lock bottom
• EA-6 – Main gauge with lateral and longitudinal adjustment
• EA-8 – Gauge blade with blower
• EA-15 – Electric pile vibrator
• EA-80 – Left alignment conveyor
• FA-001 – Lower central conveyor
• F-5 – Upper central conveyor
• G-15 – Central conveyors
• HB-6 – Motorization of conveyors
• J-1 – Left and right introducer
• J-10 – Upper pressure belt
• J-15 – Mirror for delivery monitoring
• J-025 – Left and right introducer / rectifier
• K-3 – Kurandt code reader
• K-5 – Kurandt glue trace detector
• K-10 – BOBST rotary ejector
• K-15 – Automatic glue level control device

Optional / To Be Confirmed

The following features or applications should be confirmed during inspection or directly with the machine owner before being stated as guaranteed specifications:

• Suitability for B-flute corrugated board
• Maximum corrugated board thickness
• Full range of double-wall box applications
• Exact box styles supported by the installed tooling
• Exact minimum and maximum box dimensions
• Exact production speed for each box type
• Exact number and configuration of all gluing heads currently installed

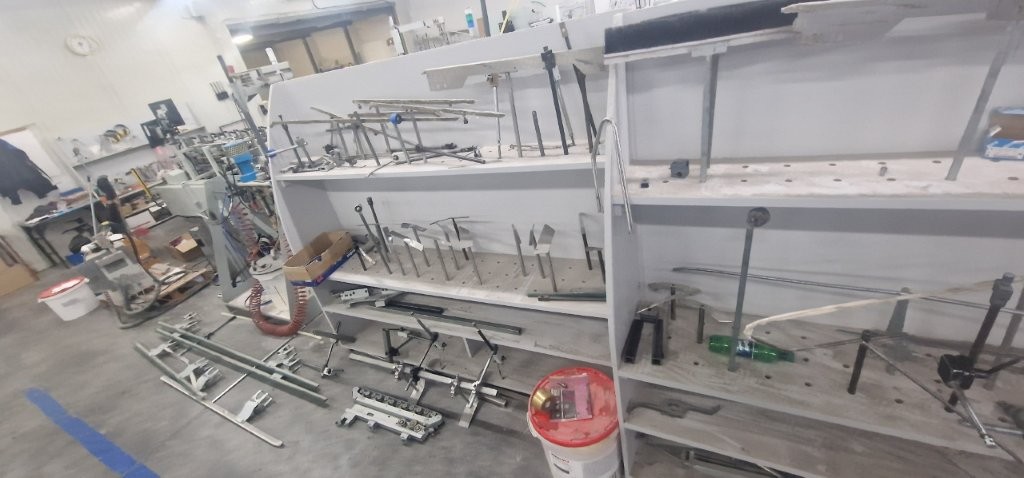

• Condition and completeness of all crash-lock tooling
• Condition and completeness of all squaring / rectifier components
• Availability of all original BOBST accessories and spare parts
• Compatibility with specific customer box samples
