LMC PP3 (FFG) Complete Box Production Line

• Prefeeder FAVALESSA REVOLVER 250

• LMC PP3-004 1225 FFG

• Strapping Machine SIGNODE ISB 1300 MONO

• Palletizing System FANUC M-410iB/160

Machine Configuration:

• Feeder
• 3-color printing
• Rotary die-cutting
• Double slotter
• Folding line with bundle separator
• Strapping
• Palletizing

Prefeeder FAVALESSA REVOLVER 250

• Year of Manufacture: 2005

• Total Weight: 8,000 kg

• Installed Power: 24 kW

• Air Pressure Required: 6 bar

• Air Consumption: 150 l/min

• Oil Pressure: 65 bar

• Oil Volume: 40 liters

• Max. Format: 2500 x 1600 mm

• Mim. Format: 600 x 280 mm

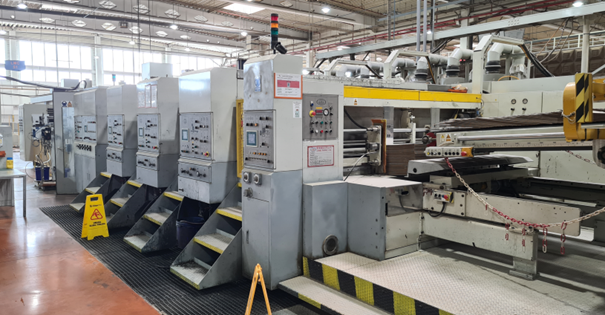

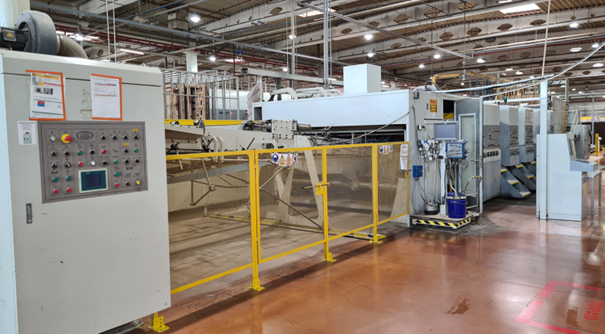

LMC PP3-004 1225 FFG

Manufactured in 2005, this LMC machine includes:

• Automatic feeder with SUN Automation lead edge feeder

• Three printing units

• Double slotter

• Rotary die-cutter

• Folding line with bundle separator

• Equipped with a NORDSON automatic gluing system with glue path detection

Technical Capabilities:

• Max. Sheet Size: 1200 x 2500 mm

• Board Thickness: Up to 9 mm

• Max. Speed: 220 sheets/minute

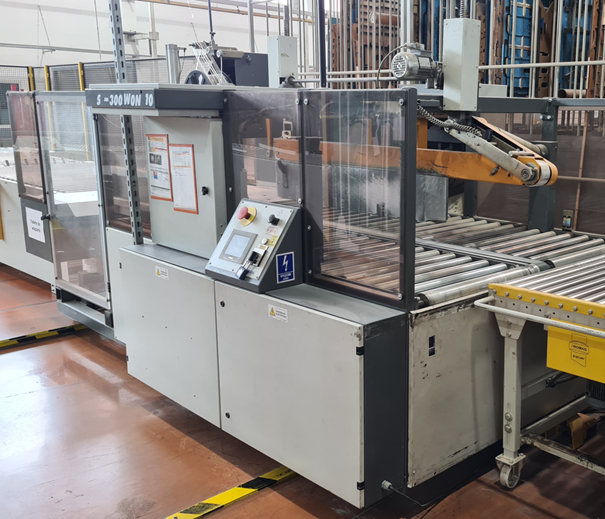

Strapping Machine SIGNODE ISB 1300 MONO

• Year of Manufacture: 2005

• Total Weight: 1,750 kg

• Power Supply:

  • 400V, 3-phase, 50 Hz

  • 460V, 3-phase, 60 Hz

• Installed Power: 3–5 kVA

• Air Supply: 5–7 bar

Package Size Range:

• Minimum: 170 x 170 x 50 mm (W x L x H)

• Maximum: 1300 x 1400 x 350 mm (W x L x H)

• Max. Output: 30 packages/min

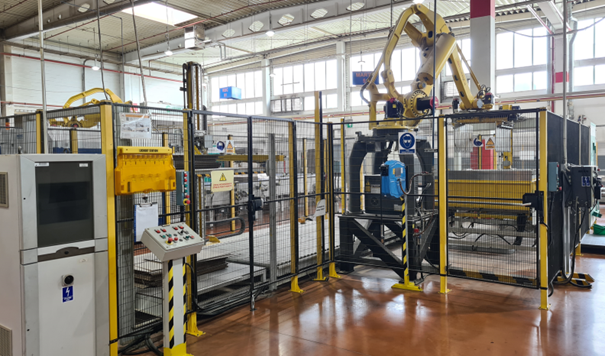

Palletizing System FANUC M-410iB/160

Installed by NE Engineering in 2005, this robotic palletizing system includes:

• Horizontal turntable

• Superposition station

• FANUC robot with gripper head

Palletizing Capacity:

• Max. Stack Height: 2200 mm

• Max. Stack Footprint: 1650 x 1100 mm

• Configurable stacking patterns

The machine is connected, can be inspected and test-run at any time, and is immediately available.
