- CONTROL AND AUTOMATION
- PQC-S central control console with remote register, ink and dampening adjustment
- KMS-IV management system with job memory, production planning, production monitoring, fault and maintenance information
- KHS makeready system
- Semi-APC semi-automatic plate changing system
- Remote plate cylinder cocking adjustment
- Automatic sheet-size, substrate-thickness and impression-pressure presetting
- Automatic feed-board brush and wheel presetting
- Feeder side-blower presetting
- Remote sucker-head height adjustment
- PC, keyboard and printer excluded from the KMS-IV specification in the documentation.
- PCC 2.2 software, JDF-compatible, with CIP3 prepress data transfer to the press console; PC excluded in the documentation
2. AUTOMATIC WASHING SYSTEMS
- Komori automatic ink roller washing system with twin spray bars
- Komori automatic blanket washing system, cloth-type
- Komori automatic impression cylinder washing system, cloth-type.
3. FEEDER
- Anti-static bars at feeder and delivery
- Anti-static side blowers
- Ultrasonic double-sheet detector
- Suction-tape sheet feeding system
- Pneumatic side lays.

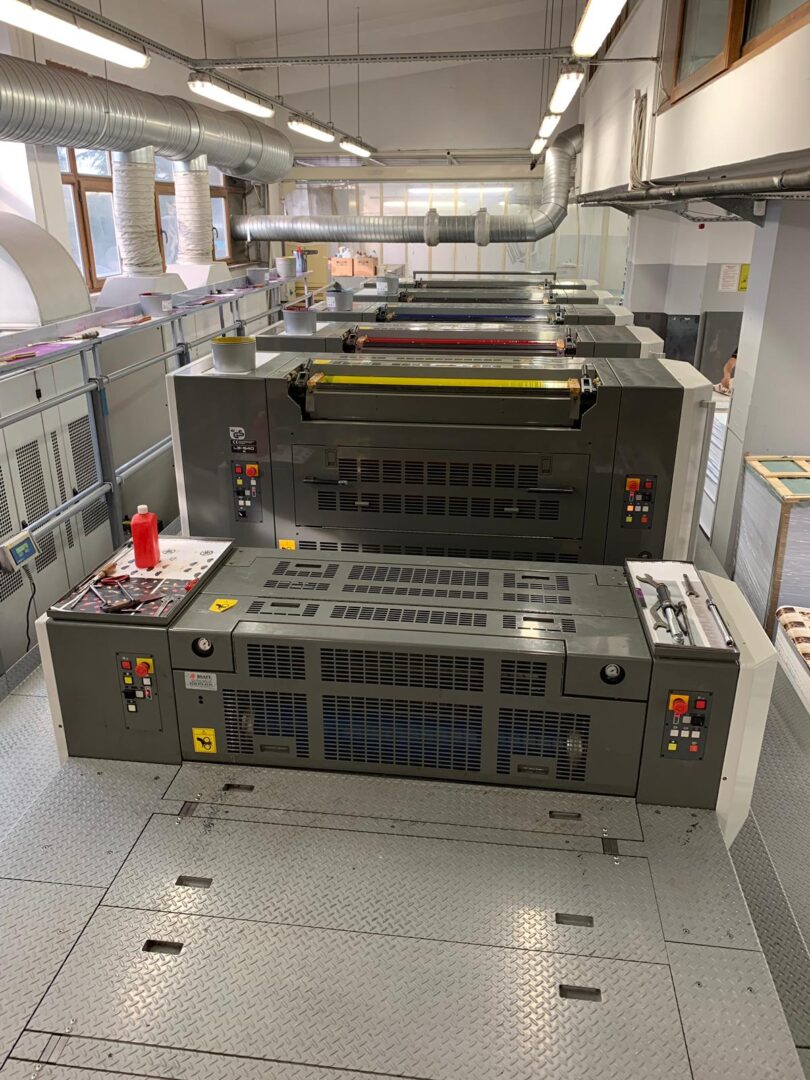

4. PRINTING UNITS
- Anti-corrosion treatment for plate cylinders with thermal stainless-steel spray coating
- Anti-corrosion treatment for blanket cylinders with chrome/thermal stainless-steel spray coating
- Chrome-plated impression cylinders
- Air blowers above the impression cylinders.
5. INKING SYSTEM
- Motor-driven ink fountain roller
- Spring-loaded ink roller nip follower
- Anti-ghosting rollers: A, B, C and D
- Remote ink ductor timing adjustment.
- Inking unit disengagement on the first and last printing units.
6. DAMPENING SYSTEM
- Komorimatic continuous dampening system
- Oscillating dampening bridge roller
- Dampening form roller speed reduction
- Dampening solution level sensor.
- Technotrans Beta C 170L circulation unit with Combi Control 4.4 for water, alcohol and pH control. The accompanying description specifies 170L-5; the exact designation should be confirmed.
7. COATING UNIT AND DRYING SYSTEM
- Type V aqueous coating unit with 2,000 mm extended delivery
- Tresu chamber doctor blade system for anilox coating application
- Two Apex ceramic anilox rollers; roller specifications not stated
- Tool-free coating plate clamping system
- Technotrans Alpha V coating pump for aqueous varnish
- Baldwin IVT Graphiset 4 IR and hot-air dryer; the handwritten note indicates two modules, subject to confirmation.
8. DELIVERY
- Preset and stacking counter
- Heat-resistant delivery
- Automatic lubrication of delivery chain guides
- Sheet decurler
- Delivery-panel control for engaging and disengaging all dampening units
- Delivery-panel control for engaging and disengaging all ink form rollers.
- Grafix Megatronic powder spray device.
