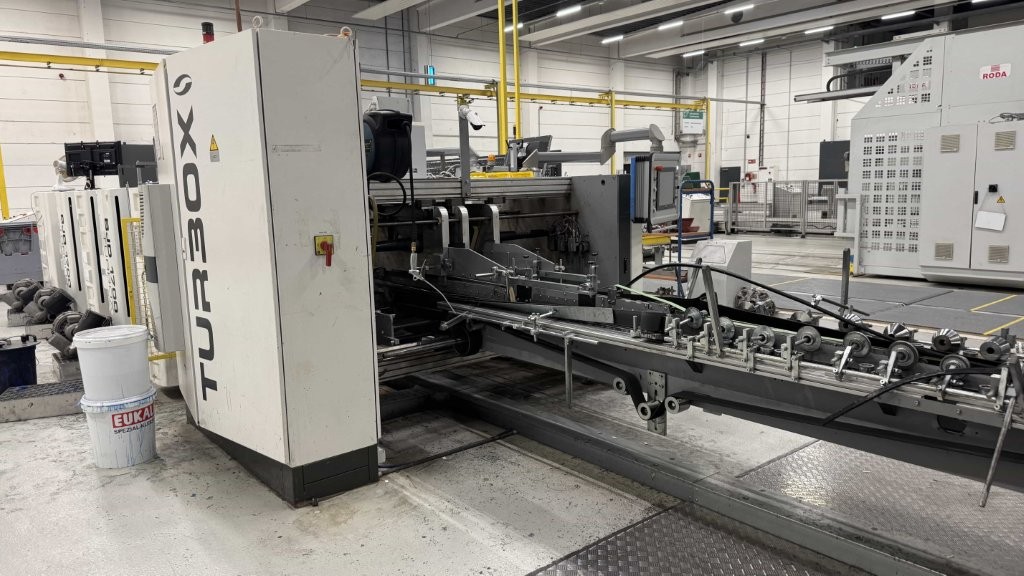

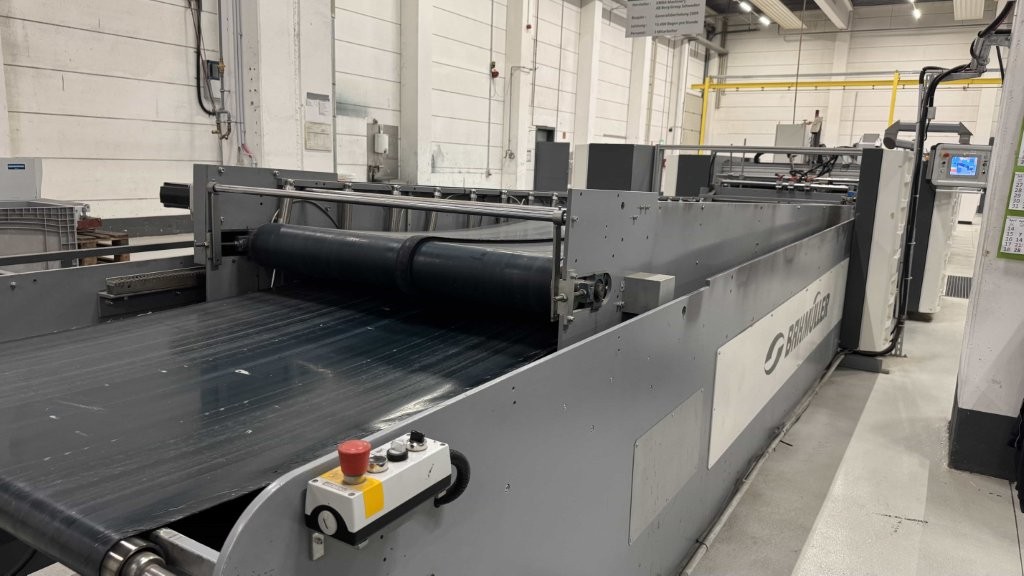

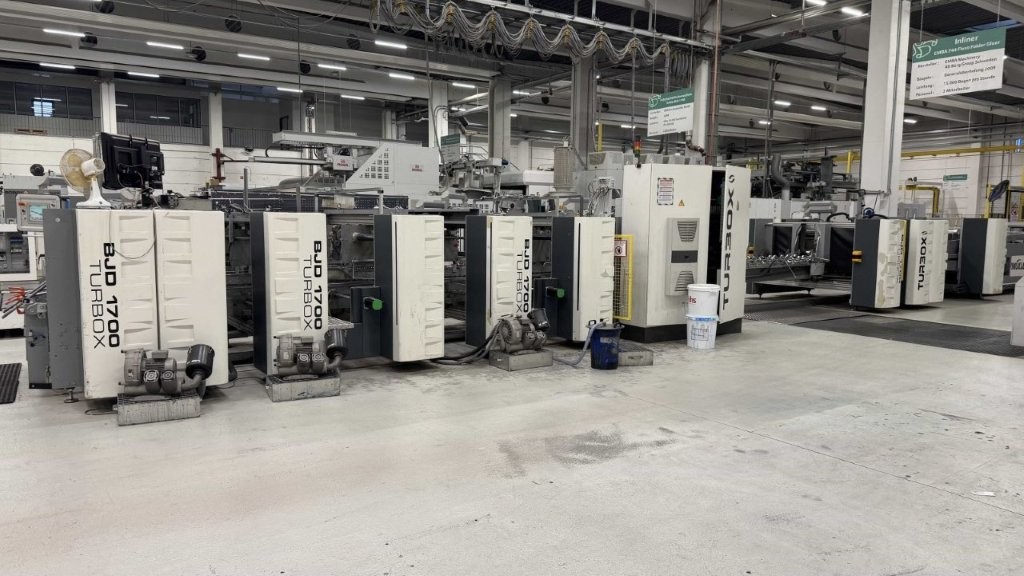

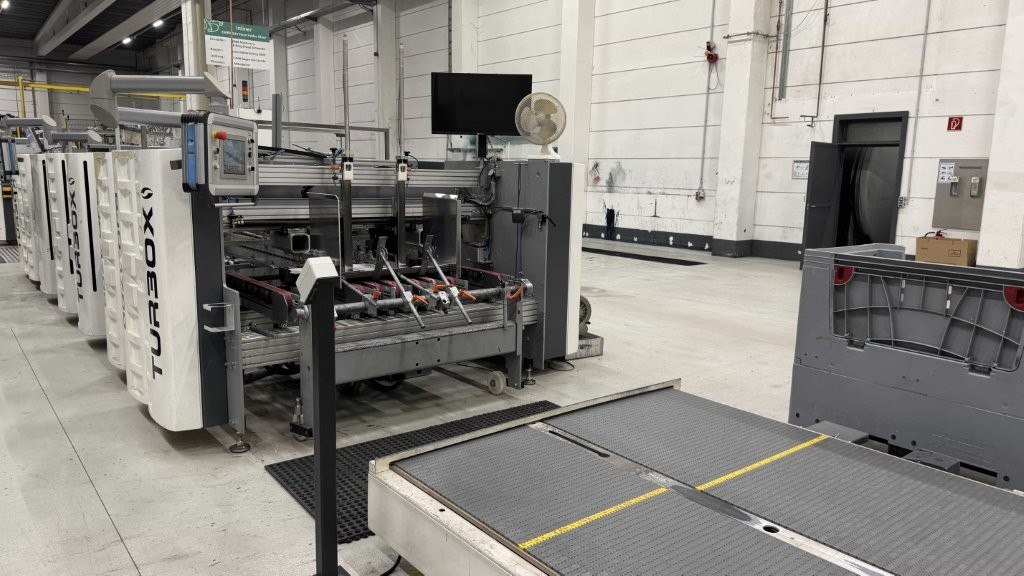

BAHMULLER Turbox BJD 1700

BAHMULLER Turbox BJD 1700

Detaylar

BAHMULLER Turbox BJD 1700

ID

Kategori

PP-54474

Katlama Yapıştırma

Model

Turbox BJD 1700

Yaşı

2008

Hız

Max. Ebat

Min. Ebat

Durumu

Konumu

Serbestlik tarihi

250

m/min

1700x1700mm

380x160 mm

Iyi

Avrupa

Hemen

Açıklama

Longitudinal seam boxes
Crash-lock bottom boxes
Crash-lock bottom boxes with partition
Multi-chamber boxes
4-point boxes
4-point boxes with lid
6-point boxes with outside folding
6-point boxes with inside folding
Corrugated board 800–1500 g/m² (optional 250–800 g/m²) A, B, C, E, F, „EE“, BE, BC – flute types
Maximum blank size: 1700 × 1200 mm
Minimum blank size: 380 × 160 mm
Minimum trim size: M 185 (125)* × 160 mm
Mechanical speed: 250 m/min (depending on box geometry and material)
Total power requirement (BJD without Boxflow-Packer): approx. 30 kVA
Total power requirement (with Boxflow-Packer): approx. 47 kVA
Electrical connection: 400 V / 50 Hz (3-phase)
Passage height: 850 mm
Air consumption BJD 1700 (at 6 bar): 15 Nm³/h
Air consumption Boxflow-Packer (at 6 bar): 15 Nm³/h
Machine weight (BJD 1700 without Boxflow-Packer): approx. 13.5 t
Machine length / width (without Boxflow-Packer): approx. 22,380 mm × 2,700 mm
