Stock A-14R5678/1650 P

Reference ID

Vacuum belt table with pneumatic pusher for aligning the carrier sheets.
Automatic merging system for carrier and printing sheets.
Electronically controlled front edge guide - for high laminating accuracy.
Pair of pressure rollers.
Glue station with stainless steel glue rollers.
Glue squeeze roller can be equipped with a pressure roller to process high viscosity adhesives with a uniform glue film.
Automatic glue supply (P) for cold glue (PVA) - pneumatic diaphragm pump.
Discontinuous glue supply: only the consumed glue is replenished.
Strip with scraping needles for thin carrier materials.
Short setup times, as all rollers are adjustable centrally and in parallel via handwheels.
One handwheel only for the carrier sheet, a second handwheel for both sheets (carrier and cover sheet).
Quick cleaning of the glue rollers is possible. Cleaning time: 5 minutes. Water consumption: approx. 5 liters.
Side alignment of the carrier sheets by pneumatic pusher.
Laminating accuracy can be achieved through.

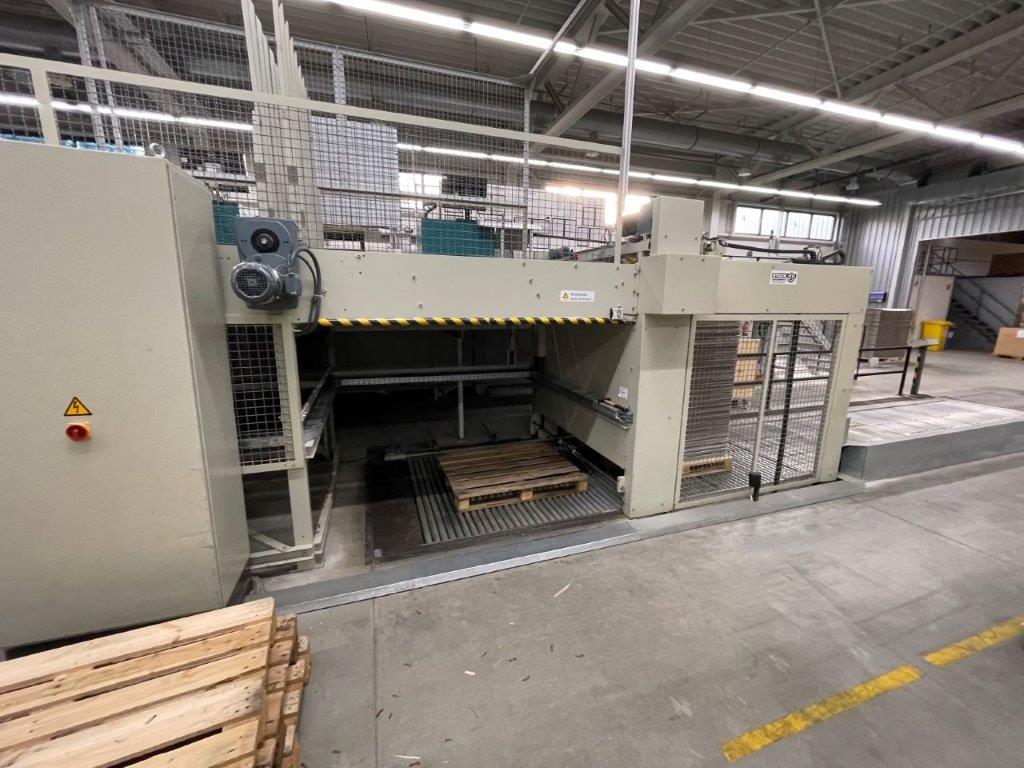

Non Stop Delivery
Non-stop package turner
