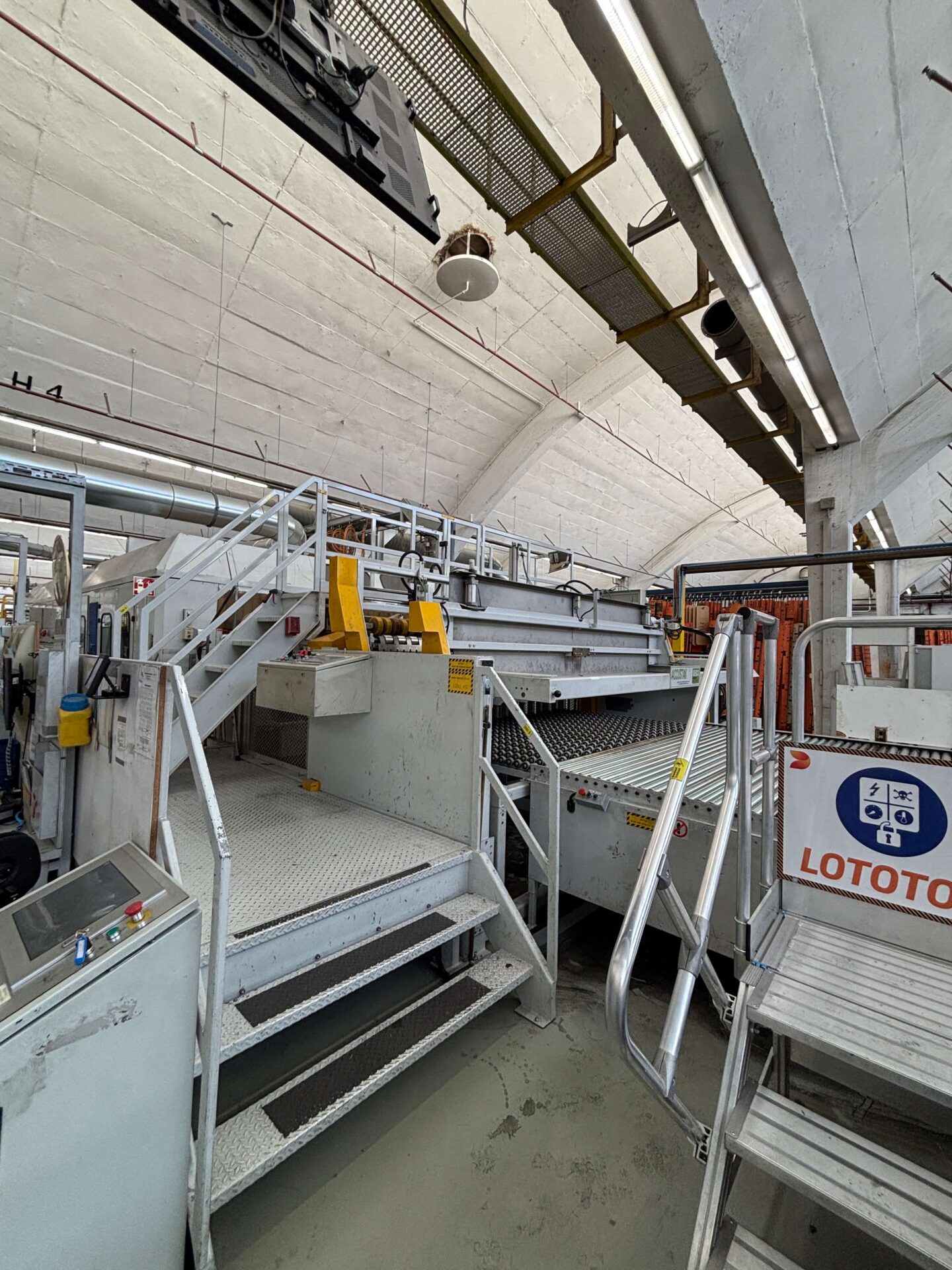

GÖPFERT RDC 22J1 WARD 2800 66" FLEXO FOLDER GLUER WITH ROTARY DIE CUTTER

General Information

• Manufacturer: Göpfert
• Model: RDC 22J1 – Ward 2800 66"
• Year of Manufacture: 1999
• Machine Type: Flexo Folder Gluer with Rotary Die Cutter

Machine Specifications

• Maximum Working Width: 2,800 mm
• Minimum Sheet Length: 460 mm
• Maximum Sheet Size: 1,600 × 2,800 mm
• (Sheet lengths above 1,500 mm require Skip-Feed operation.)

Board Grades

The machine is suitable for processing:

• EE Flute
• EB Flute
• BC Flute
• C Flute
• B Flute
• E Flute

Production Features

• Minimum Feed Length: 460 mm
• Maximum Working Width: 2,800 mm
• Length Tolerance: ±1 mm

Printing Unit

• 4 Flexographic Printing Units
• Chamber Doctor Blade Inking System

Anilox Configuration

Printing Unit 1

• Ceramic Anilox
• 80 L/cm
• Ink Volume: 14 g
• 60° Engraving

Printing Units 2–4

• Ceramic Anilox
• 120 L/cm
• Ink Volume: 10 g
• 60° Engraving

Printing Capabilities

• Up to 18 LPI Screen Printing
• Maximum Printing Area: 1,500 × 2,800 mm
• Printing Registration Tolerance: ±3 mm

Rotary Die Cutting Section

• 1 Rotary Die Cutter
• Maximum Die Cutting Area: 1,500 × 2,800 mm

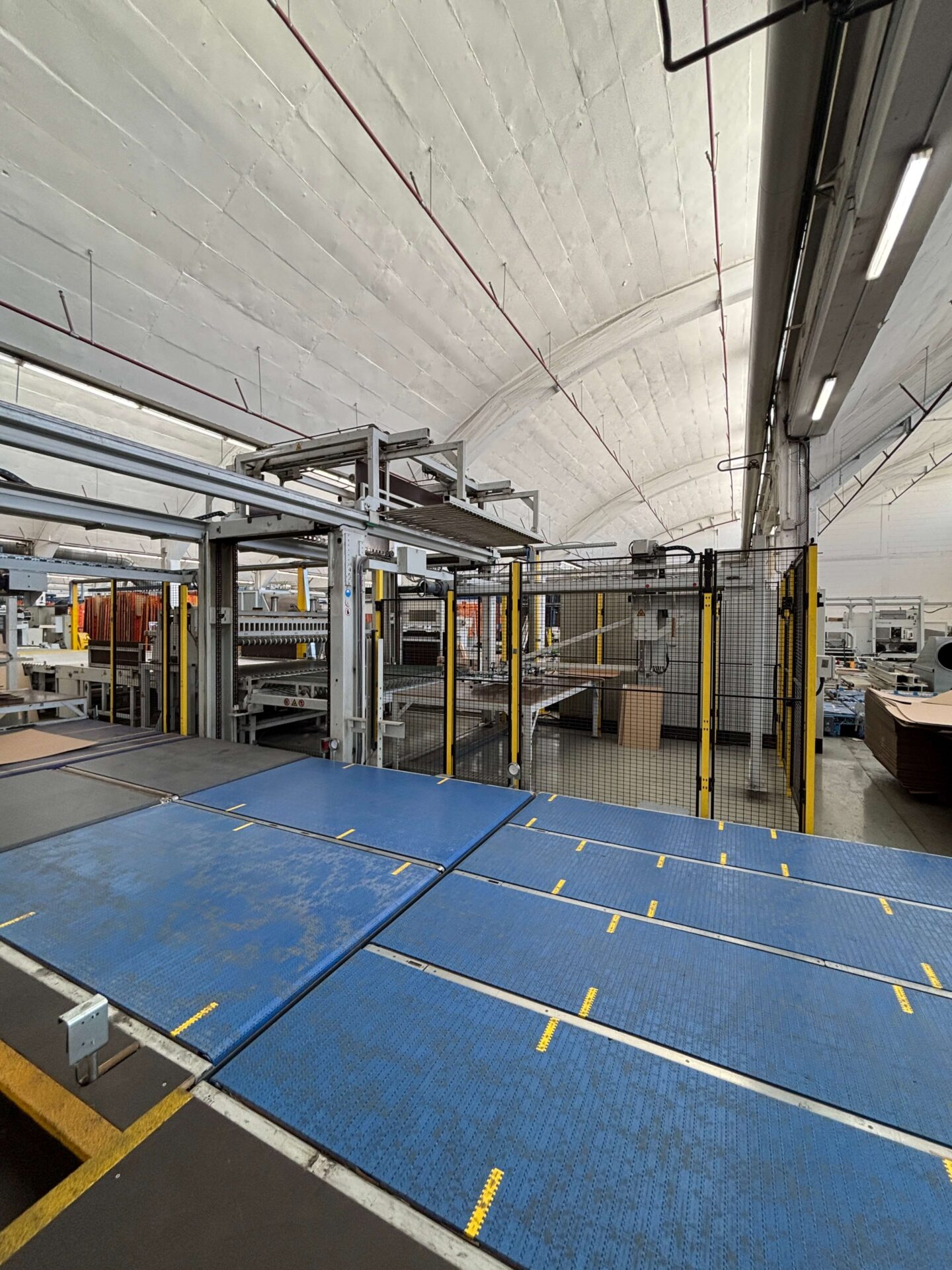

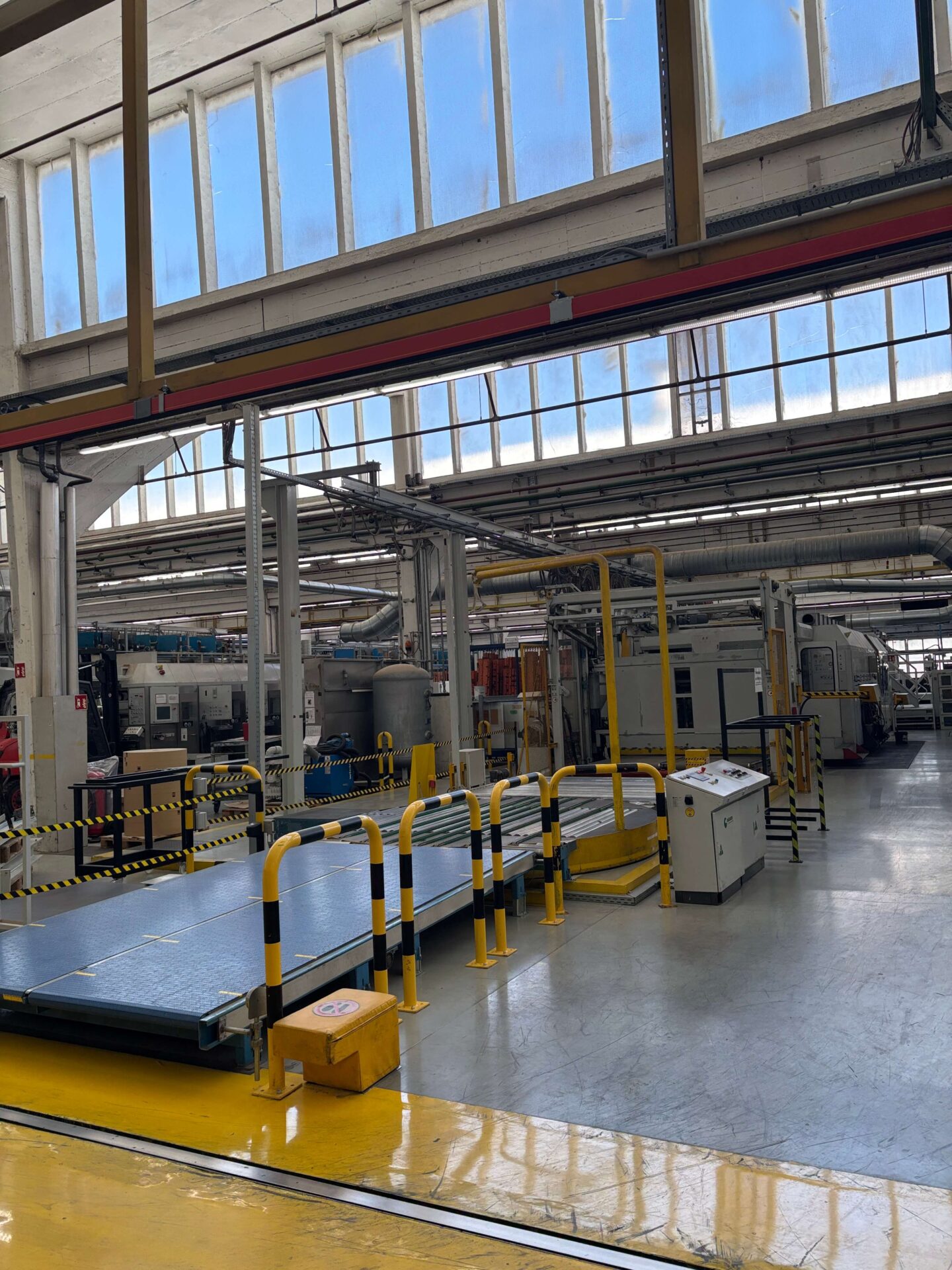

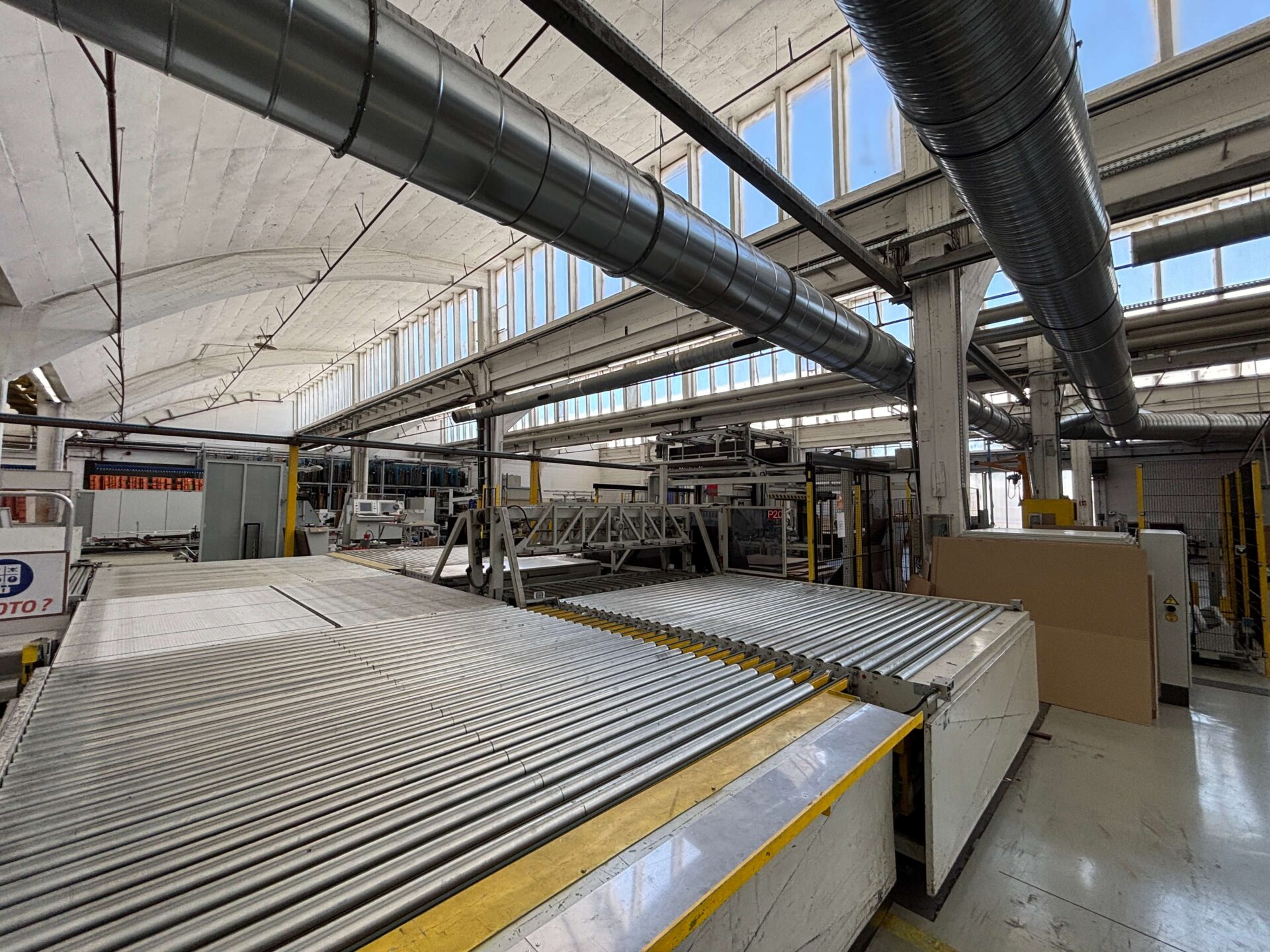

Stacking System

• Alliance Automatic Palletizer
• Fully Automatic Bundle Stacking
• Layer Rotation Available
• Maximum Stack Height: 2,200 mm

Die Cutting Tool Specifications

• Die Cylinder Diameter: 487.4 mm
• Die Cylinder Width: 2,800 mm
• Wooden Die Board Thickness: 13 mm
• Serapid Die Mounting System

Creasing & Cutting Rules

Single Wall Board

• Cutting Rule: 25.4 mm
• Creasing Rule (Axial): 23.0 mm
• Creasing Rule (Radial): 22.6 mm

Double Wall Board

• Cutting Rule: 25.4 mm
• Creasing Rule (Axial): 22.2 mm
• Creasing Rule (Radial): 21.8 mm

Die Specifications

• Standard Eurocut Knife
• 8 TPI

Printing Plate Specifications

• Total Plate Height: 4.54 mm
• Plate Distortion: 1.40%
• Double Matthew Rail Mounting System
• 50 mm Distance from Working Edge

Machine Highlights

• Heavy-Duty 2,800 mm Flexo Folder Gluer
• 4-Color Chamber Doctor Blade Printing
• Rotary Die Cutting Unit
• Ceramic Anilox Rollers
• High Accuracy Registration
• Automatic Alliance Palletizer
• Suitable for Single & Double Wall Corrugated Board
• Large Format Corrugated Box Production

Typical Products

This machine is suitable for manufacturing:

• Regular Slotted Containers (RSC)
• Heavy-Duty Corrugated Boxes
• Industrial Packaging
• Export Cartons
• Agricultural Boxes
• Fruit & Vegetable Boxes
• Beverage Boxes
• Furniture Packaging
• Electronics Packaging
• Appliance Cartons
• E-commerce Shipping Boxes
• Large Corrugated Transport Boxes
