• 8-Color Flexo Rotary Printing Machine

TECHNICAL DATA

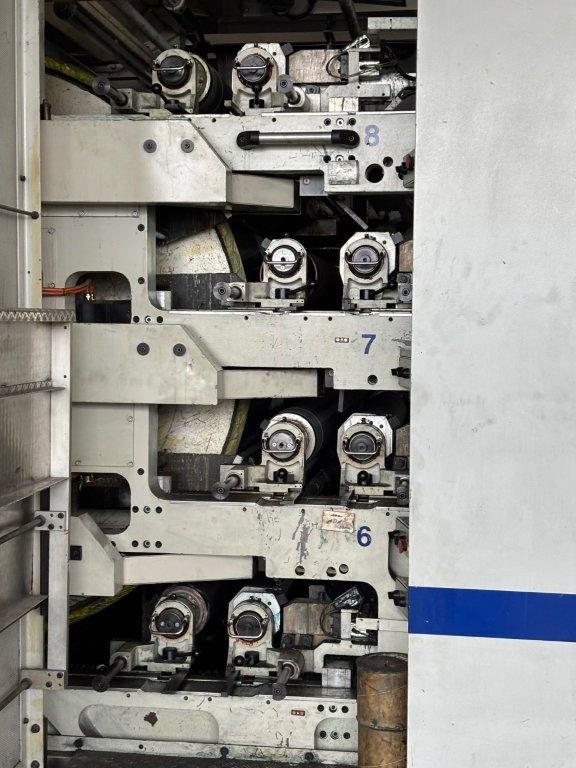

• Number of printing units: 8 colors
• Print width: 1,250 mm
• Material width: 650 mm, max. 1,300 mm
• Print length: 320 mm, max. 800 mm
• Mechanical performance: 460 m/min
• Roll diameter: 1,000 mm (unwinder/rewinder)
• Core equipment: 70, 76, 100, 150 mm

EQUIPMENT

• Automatic roll change for unwinder & rewinder
• Column lifting system for shaft unwinder/rewinder

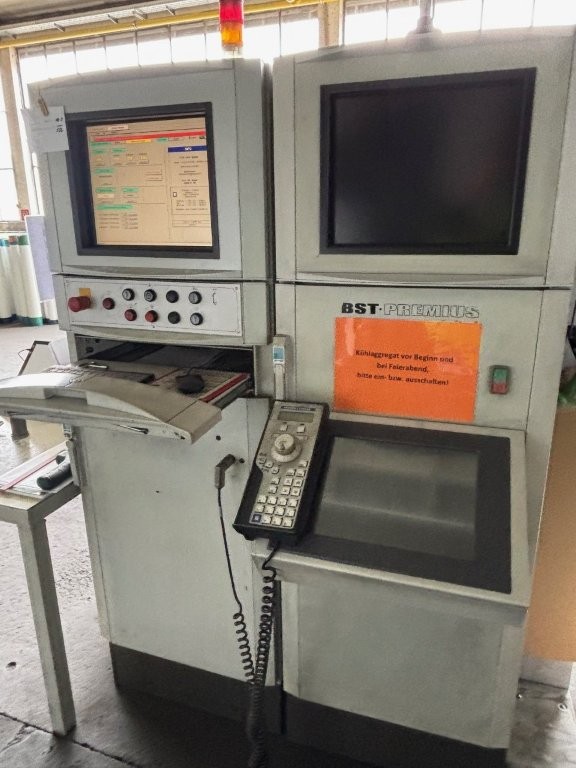

• Digital printing unit control with servo drive
• Currently printed materials: Papers with grammage 50-500 g
• Water-based inks
• Sound dampened: 85 dBA (VBG121)

HIGHLIGHTS

• Proven precision machine for professional packaging printing
• 8-color configuration for complex printing jobs
• Compressed air cleaning system (7 bar)
• Cooling water circuit with temperature control
• Clamping shaft system also for film materials
• Machine plan and nameplate available
• Ready for immediate operation after installation

ACCESSORIES

The machine comes with comprehensive accessories:

• Sleeves: Set for print widths from 60-1250 mm available
• Print cylinders: Set for print lengths from 440-660 mm available

If any accessory should be defective in the meantime,

STATUS

Machine currently in operation - printing customer orders, inspection and demonstration possible by appointment, customer orders can be relocated to another machine, machine dismantling can take place immediately
