• Maximum die-cutting size with front waste: 1,300 x 905 mm
• Maximum die-cutting size without front waste: 1,300 x 915 mm
• Maximum embossing size: 1,300 x 900 mm
• Paper: approximately 80–90 g/m² and above
• Solid board: up to approximately 2,000 g/m²
• Corrugated board: up to approximately 4 mm

Equipment

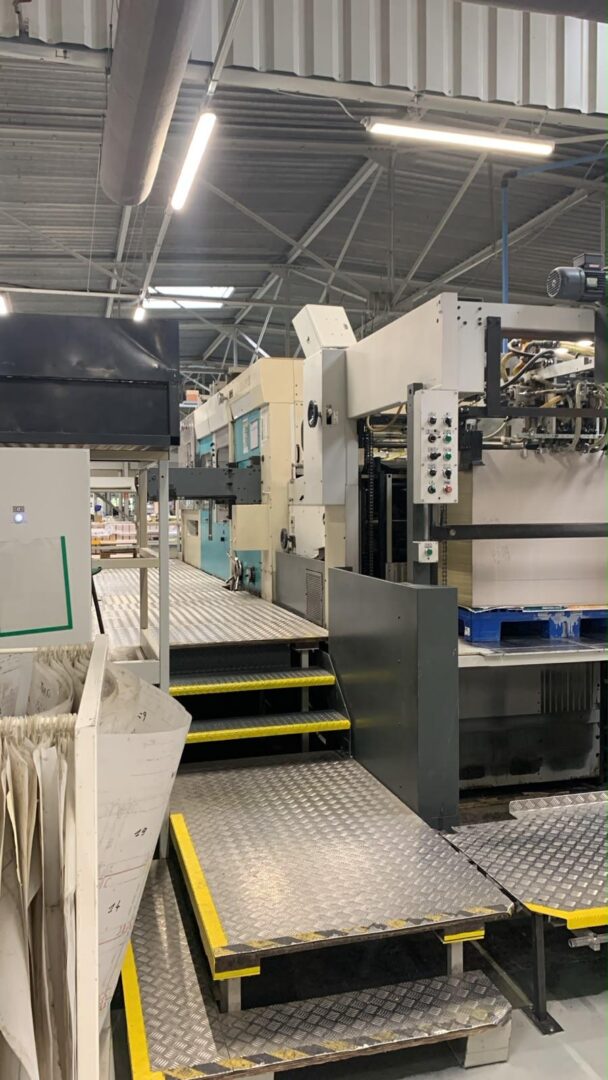

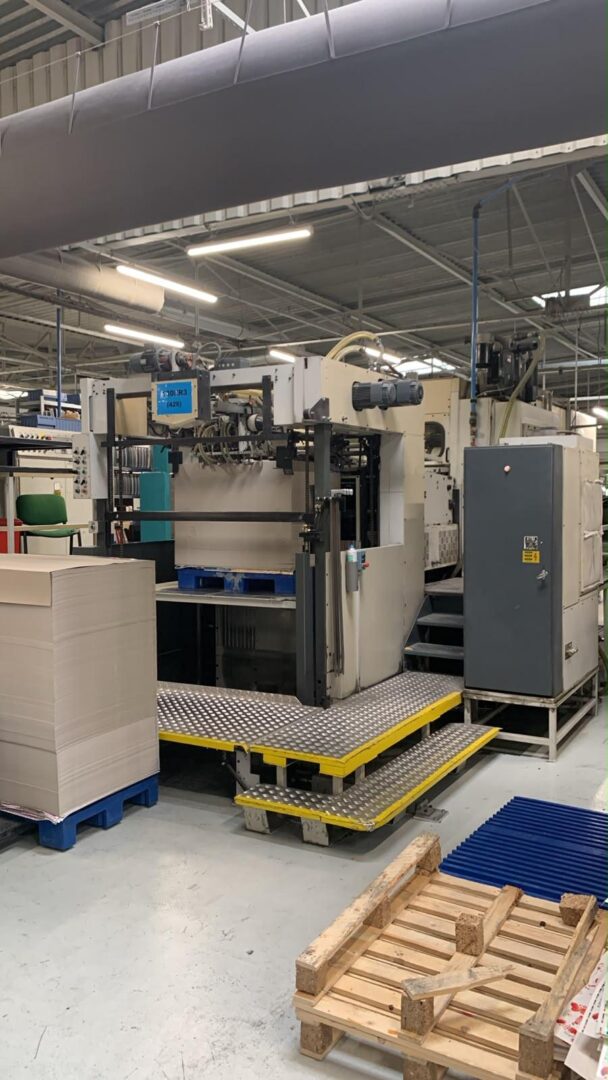

• Operating platform
• Machine raised by approximately 650 mm
• Removable platform section at the feeder
• Recently installed asynchronous main motor

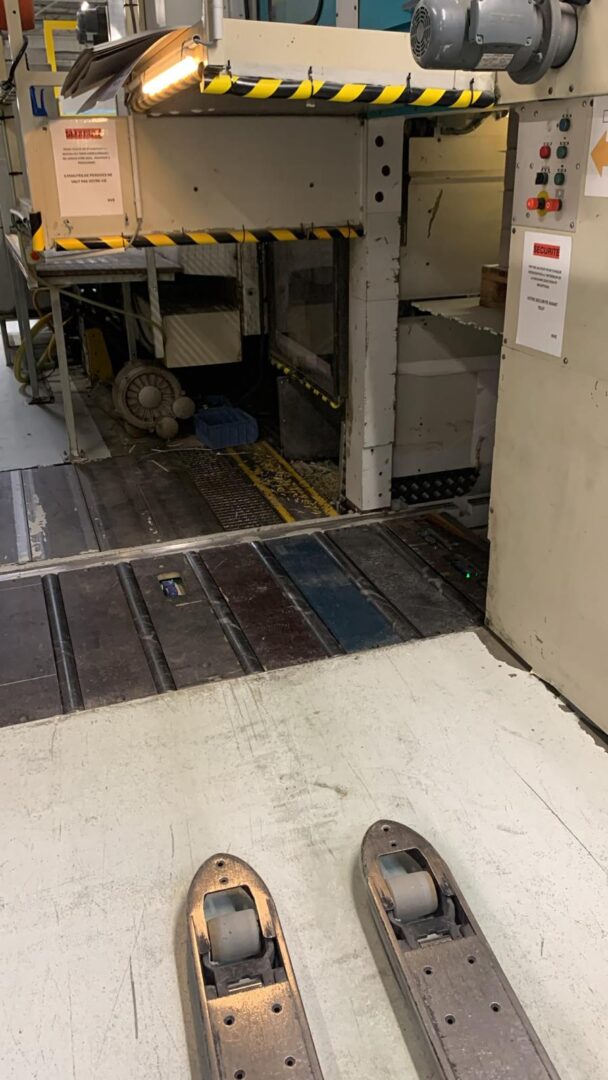

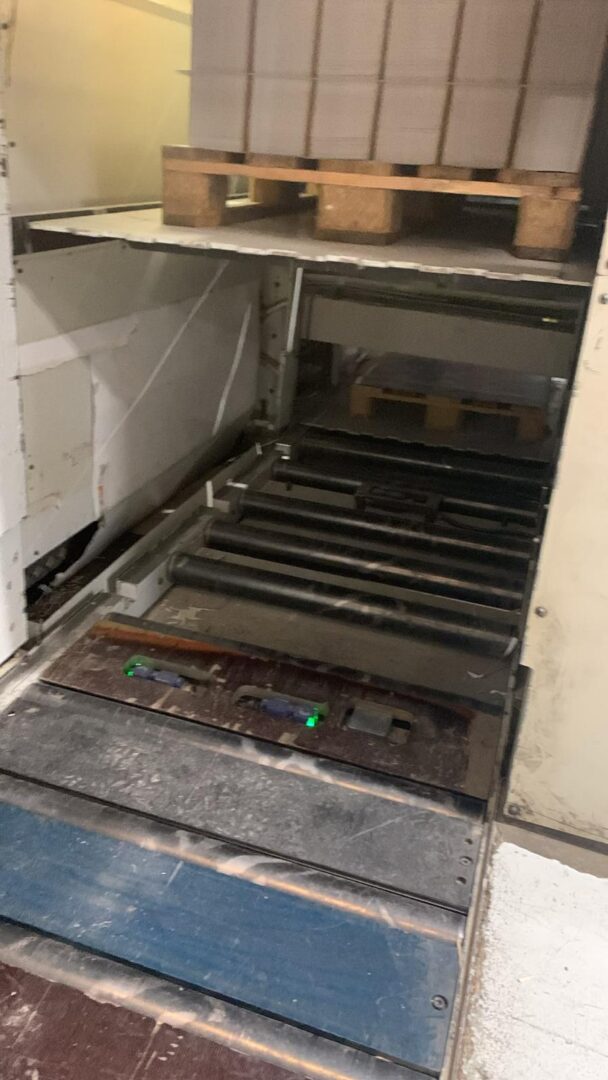

• Manual non-stop feeder pallet
• Pile table with manual lateral correction during production
• Adjustable suction unit

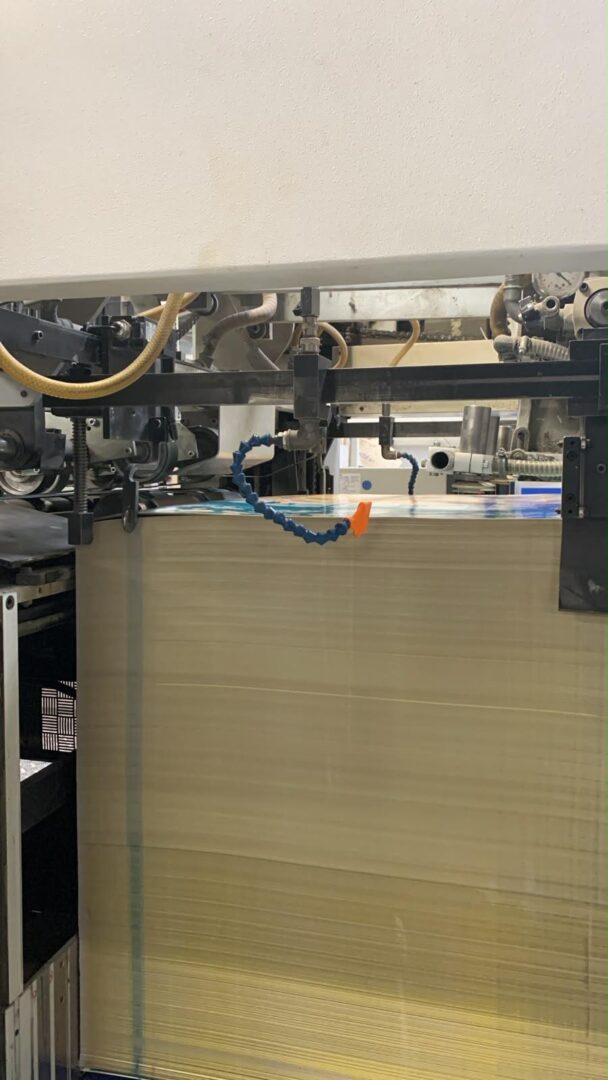

• Automatic feeder-head adjustment
• Double-sheet detection

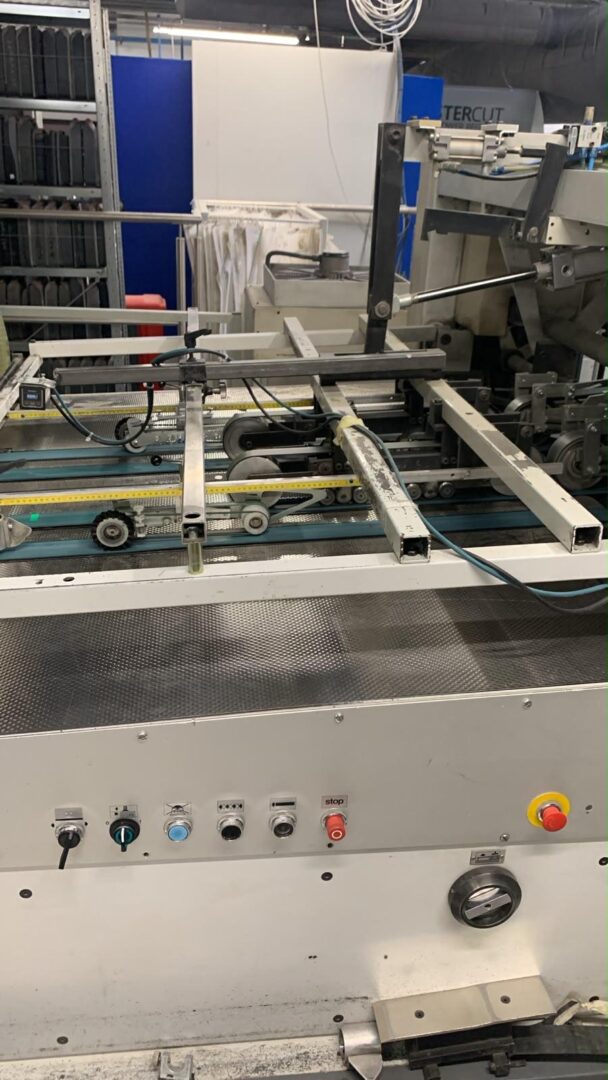

• Sheet down-holder for guiding sheets to the front lays
• Upper frame with manual lifting device
• Upper transport equipment for paper and cardboard
• Die-cutting, pressing/creasing and embossing, separately or simultaneously
• Oil conditioner for maintaining the correct operating temperature
• Automatic removal of internal and marginal waste
