BOBST (GVE) – EHF 1650

Details

BOBST (GVE) – EHF 1650

Reference ID
Category
PP-51653
Coating
Manufacturer
Bobst
Model
EHF 1650
Year
1994
Condition
Location
Availability
Good
Europe
Immediately
Share on facebook
Share on twitter
Share on linkedin
Share on xing
Share on telegram
Share on whatsapp

Description

  • Max Roll Diameter (mm): 1000
  • Max Web Width (mm): 700–1650
  • Line Speed (m/min): 0–720
  • Unwind Tension (N): 20–362
  • Rewind Tension (N): 20–362
  • DTR2 Torque: 0–741
  • Rewind Layarm Mode: Gap (mm) 0–50
  • DTR1 Torque: 0–66
  • Availability: > 1–2 months
  • Operativity: In production

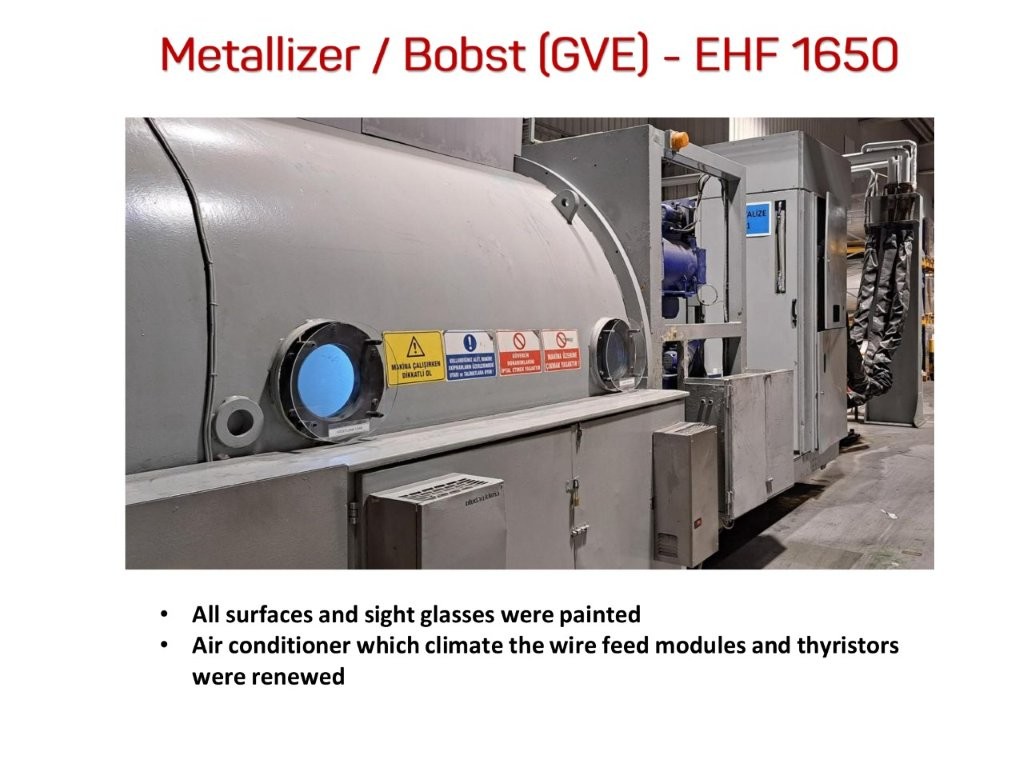

  • All surfaces and sight glasses were painted
  • Air conditioner which climate the wire feed modules and thyristors were renewed
  • All surfaces were painted
  • Chiller unit’s maintenance operations were completed, compressor and pipeline of chiller system were renewed. All surfaces were painted
  • Rotary, booster and diffusion pumps were controlled and completed the maintenance operations. All surfaces were painted
  • Beam sensors were renewed
  • Control panel, windows-based computer renewed

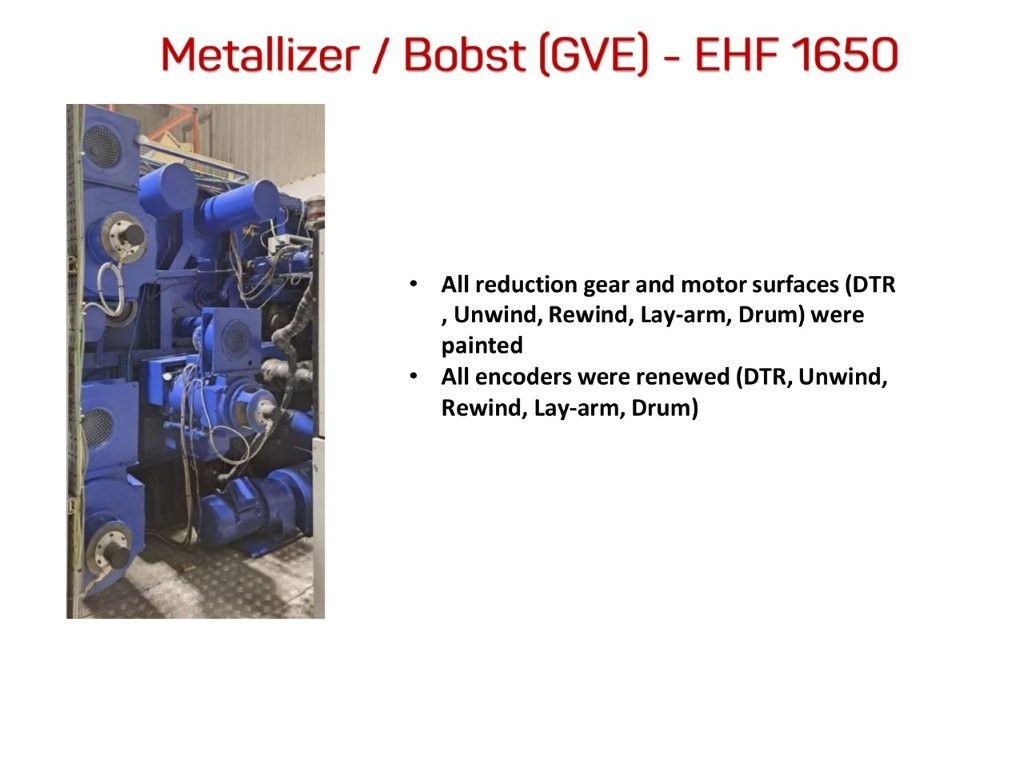

  • All reduction gear and motor surfaces (DTR, Unwind, Rewind, Lay-arm, Drum) were painted
  • All encoders were renewed (DTR, Unwind, Rewind, Lay-arm, Drum)

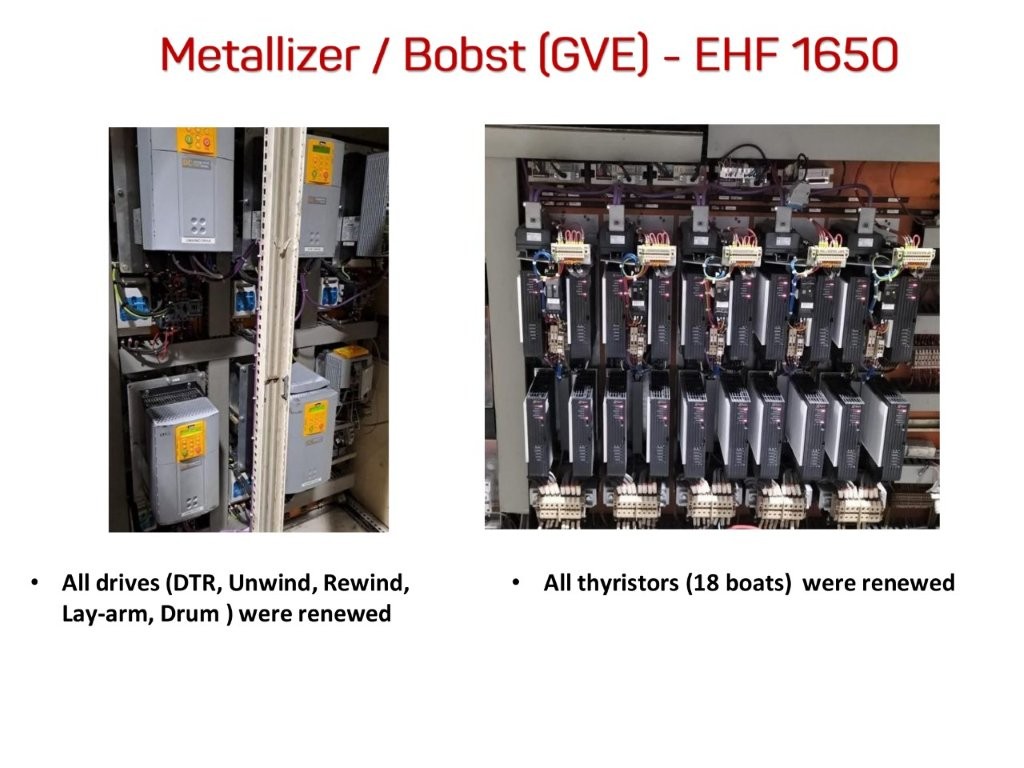

  • All drives (DTR, Unwind, Rewind, Lay-arm, Drum) were renewed
  • All thyristors (18 boats) were renewed

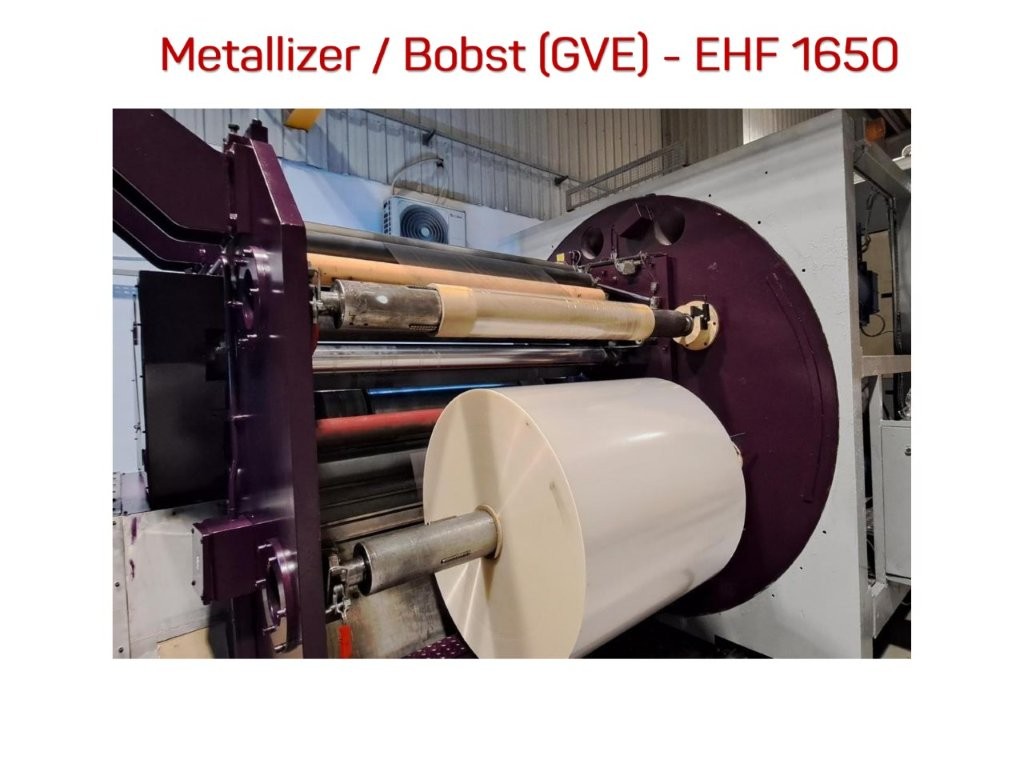

  • It metallizes BOPP film and other types of films with aluminum and produces metallized film
  • The BOBST (GVE) – EHF 1650 Metallizer machine is used for:

    🔹 Main function:

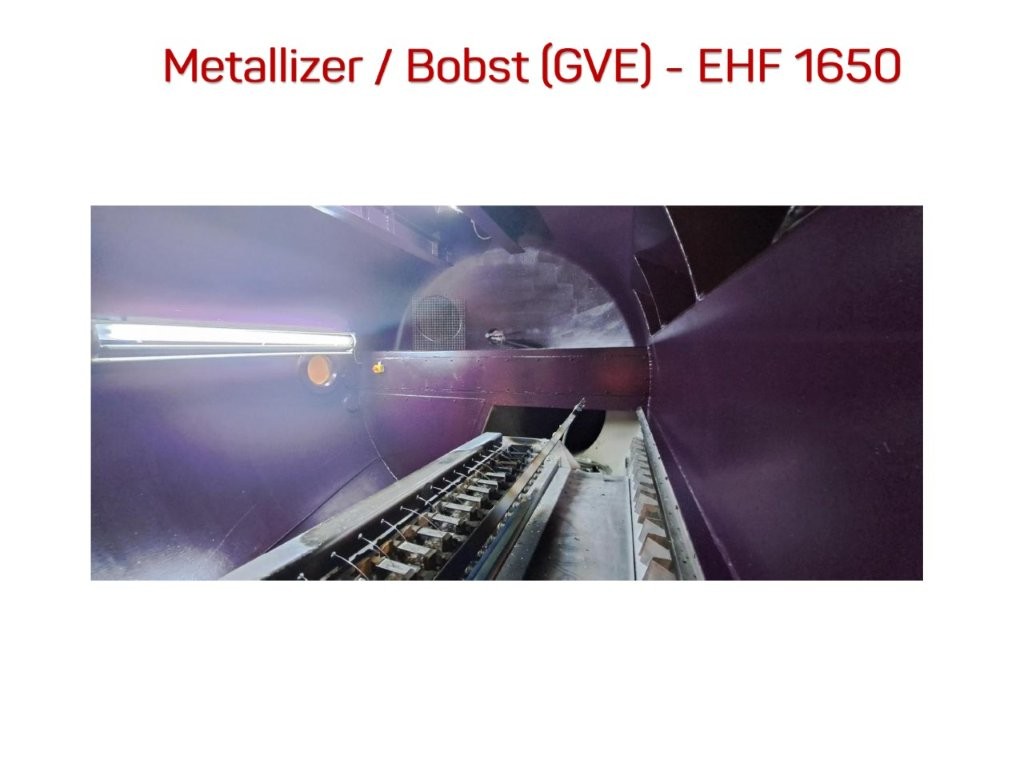

    It coats plastic-based films (such as BOPP, PET, CPP, etc.) with a very thin layer of aluminum through a vacuum metallization process.

    🔹 Result:
    The output is metallized film, which is widely used in:

    • Packaging industry (snack, chocolate, coffee, and other food packaging)

    • Decorative materials

    • Insulation and technical applications

    In short, the machine transforms transparent plastic film into a shiny, silver-looking, light- and oxygen-barrier metallized film that is stronger and more durable.
