• Number of printing units: 4
• Nominal machine width: 1,800 mm
• Mechanical capacity: 25,000 sheets/hour according to the equipment list; 26,000 boxes/hour according to the technical specifications, depending on the product.
• Nominal printing plate holder reach: 700 mm
• Maximum printable area: 635 × 1,800 mm
• Maximum board thickness: 8 mm
• Standard slotting knife thickness: 6.35 mm

LINE CONFIGURATION

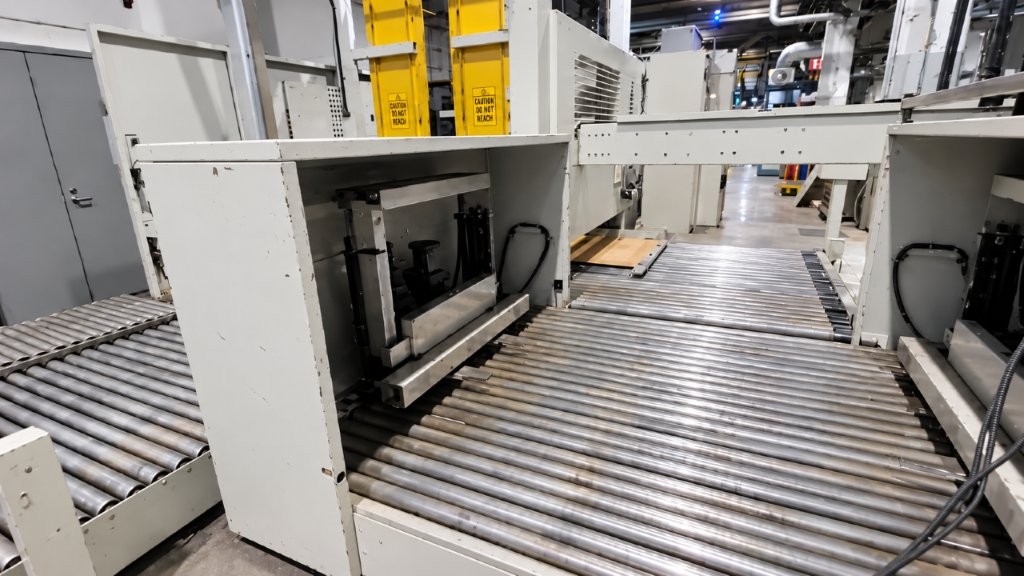

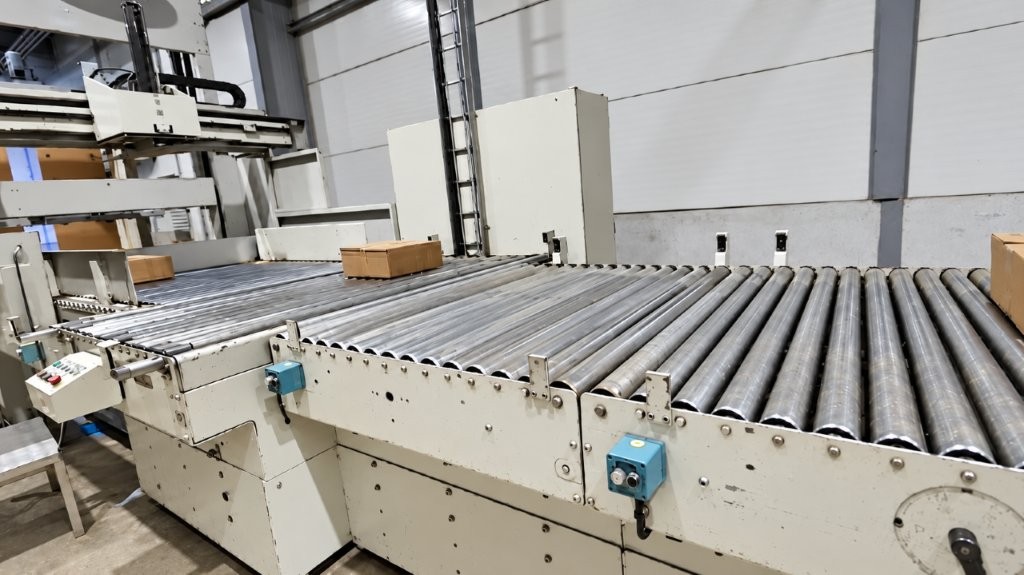

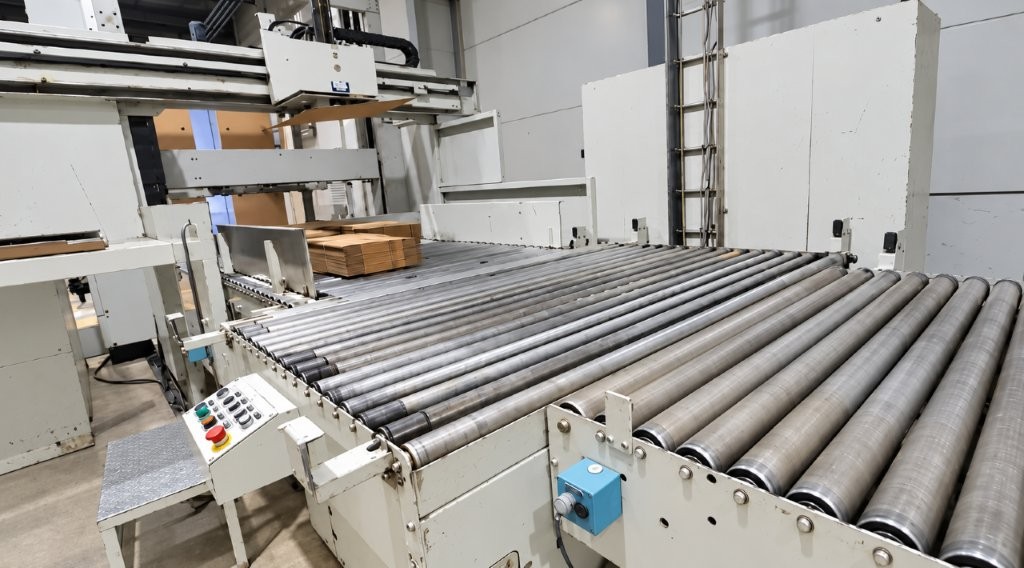

• Roller conveyor; Manufacturer: MARTIN Groupe Bobst, Year: 1997

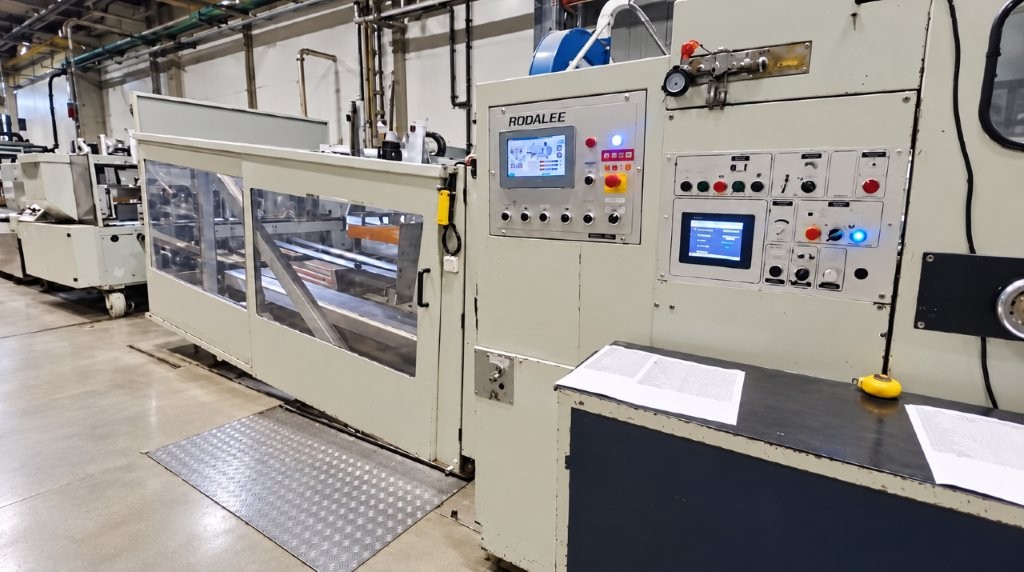

• Sheet feeder; Manufacturer: RODA MACCHINE S.A., Model: Tigerfeed Top 170
  Year: 1997, Metecno side equalizers added in 2019
• Feeding table; Manufacturer: SUN Automation, Model: Extend-o-feed, Year: 1997
• Infeed unit; Manufacturer: MARTIN Groupe Bobst, Year: 1997, FFG main motor replaced in 2024

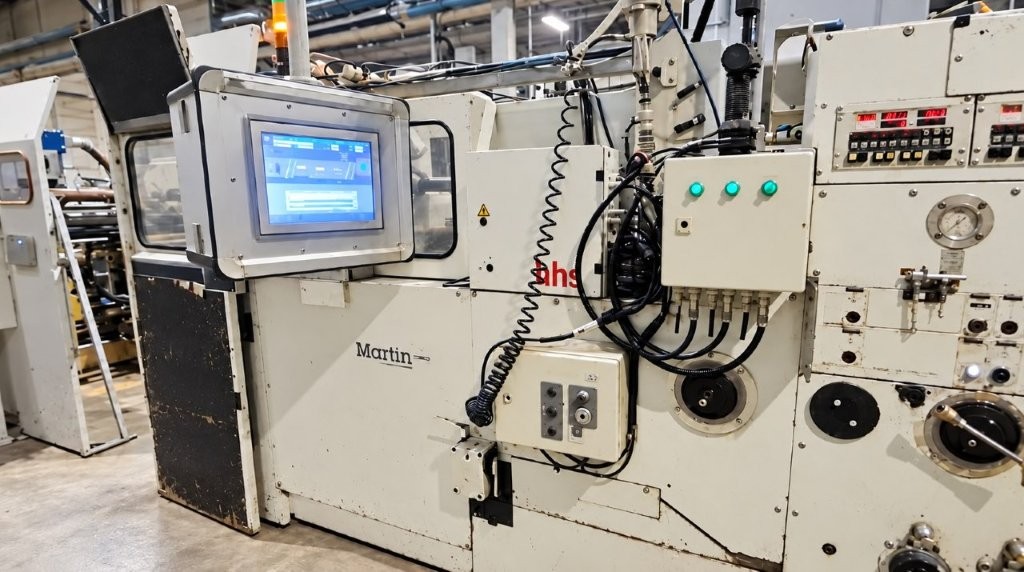

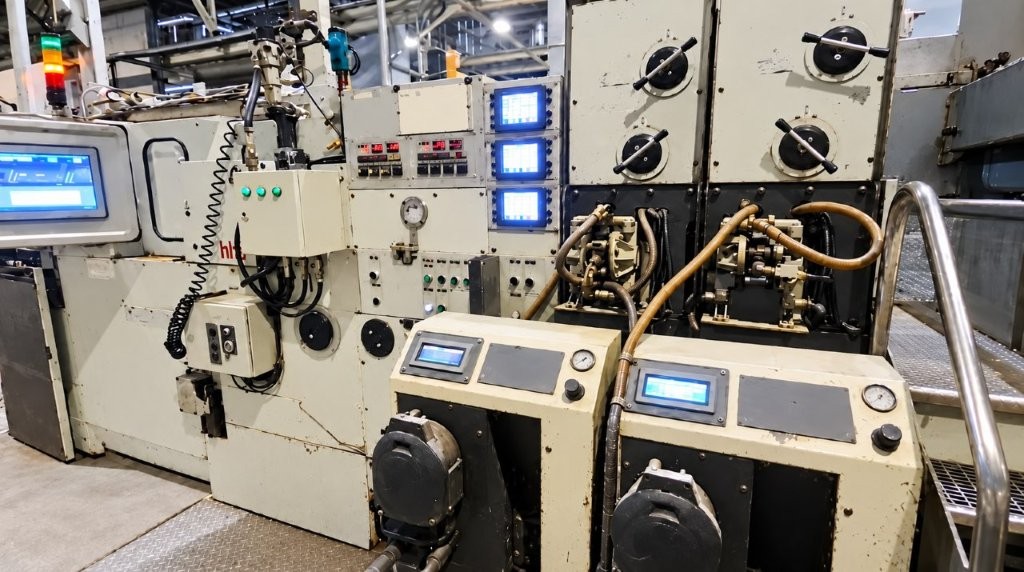

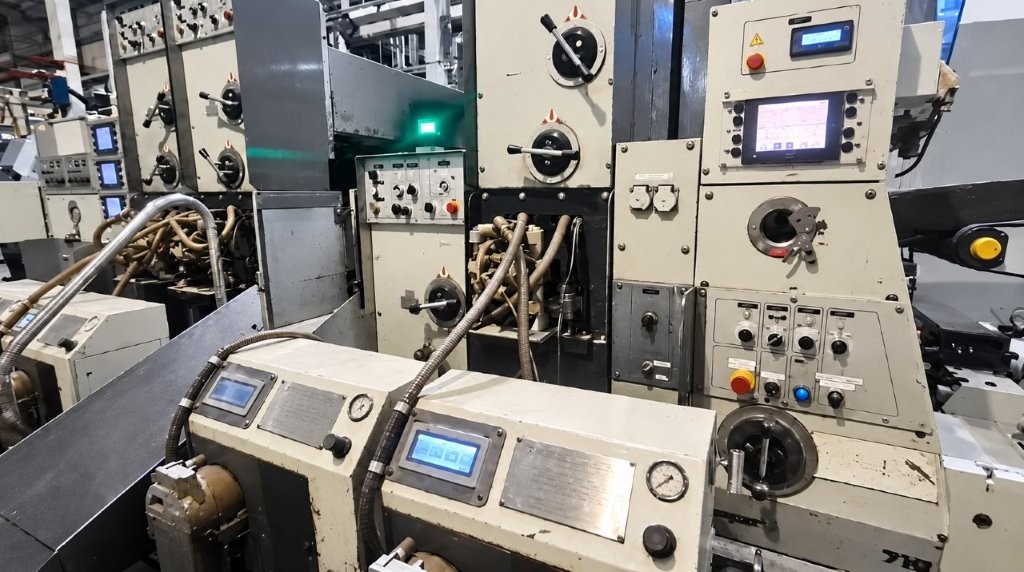

• Printing unit; Manufacturer: MARTIN Groupe Bobst, Year: 1997
• Slotting unit; Manufacturer: MARTIN Groupe Bobst, Year: 1997
• Die-cutting unit; Manufacturer: MARTIN Groupe Bobst, Year: 1997
• Folding unit; Manufacturer: MARTIN Groupe Bobst, Year: 1997
  Main computers MPC3R and PTT2R upgraded in 2020
• Glue applicator; Manufacturer: HHS, Model: KFE-KPE9-PMDRE6, Year: 2020
• Counting and stacking unit; Manufacturer: Sipack S.r.l., Model: COUNTER EJECTOR ROYAL 11.11 – 1150 × 1100, Year: 2021

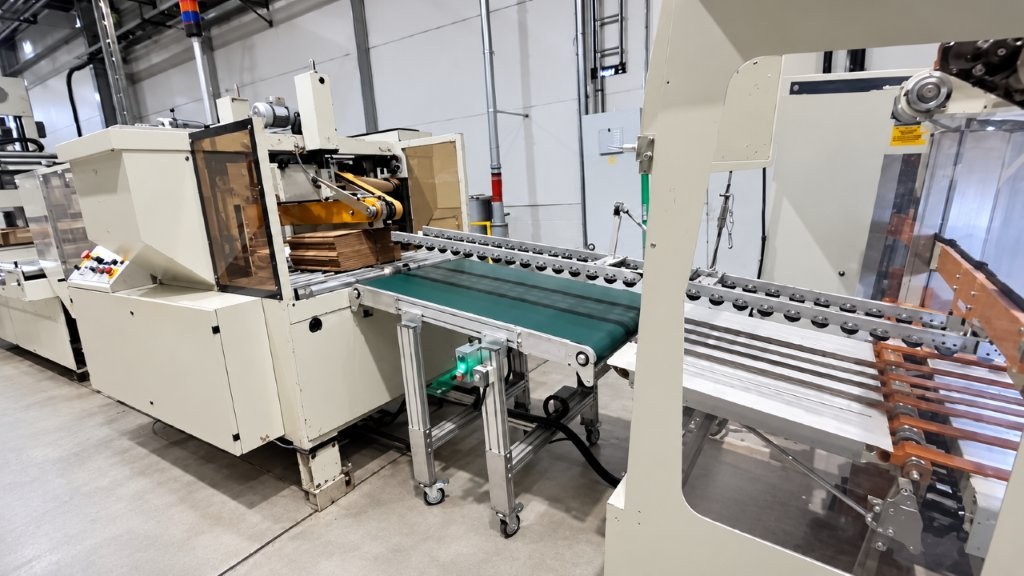

• Bundler; Manufacturer: SIGNODE BERNPAK GmbH, Model: ISB-Mono 900, Year: 1997

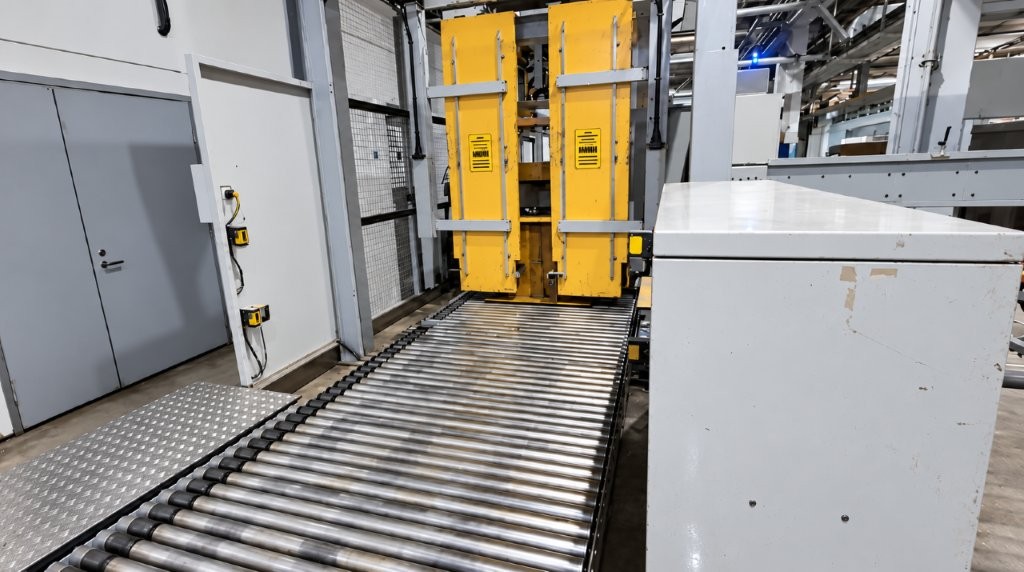

• Palletizer; Manufacturer: MARTIN Groupe Bobst, Model: FFG, Year: 1997
  Main computers MPC3R and PTT2R upgraded in 2020

RODA FEEDER – TECHNICAL DETAILS

Maximum stack height: 1,800 mm
Maximum stack weight: 800 kg
Minimum sheet size: 350 × 190 mm
Maximum sheet size: 1,800 × 700 mm
Maximum speed with B- and C-flute corrugated board: 26,000 sheets/hour
Maximum speed with double-wall corrugated board: 15,000 sheets/hour
Machine length: 6,600 mm
Maximum machine frame length: 10,050 mm
Machine width: 3,125 mm
Machine height: 2,700 mm
Weight: 5,200 kg
Minimum feeder roller height: 300 mm
Installed power: 15 kW
Main power supply: 400 V / 50 Hz / 3PE
Control voltage: 24 VDC
Compressed air consumption: 4 m³/hour at 6 bar
Air connector size: 3/8"

MARTIN FFG – SECTION WEIGHTS

Sun feeder unit: 3.7 tonnes
Claw feeder unit: 3.7 tonnes
Rapidset Quatro printing machine: 15.7 tonnes
Single-colour printing unit: 3.3 tonnes
Slotter: 3.8 tonnes
Die cutter: 3.3 tonnes
Folding and gluing unit: 12.0 tonnes
Counter/ejector unit: 4.6 tonnes

SIPACK CE ROYAL 11.11 – TECHNICAL DETAILS

H minimum: 190 mm
H maximum: 1,150 mm
L minimum: 200 mm
L maximum: 1,100 mm
Maximum bundle height: 290 mm
Maximum speed: 24,000 pieces/hour

SIGNODE ISB-MONO 900 – TECHNICAL DETAILS

Bundle width: 170–900 mm
Bundle length: 170–1,000 mm
Bundle height: 50–350 mm
Maximum capacity: 30 bundles/minute
Strapping material: Contrax 109W
Strap specification: 5 × 0.42 mm polypropylene
Power supply: 220/380 V or 240/415 V, three-phase, 50 Hz
Power requirement: 3–5 kVA
Compressed air pressure: 5–7 bar
Air connection: 1/2" quick-connect coupling

MULTIPAL – Equipment References

8995-0801: Roller conveyor
8995-0803: Turntable
8995-0705: Equalizer
8995-0710: Sheet inserter
