Dettagli

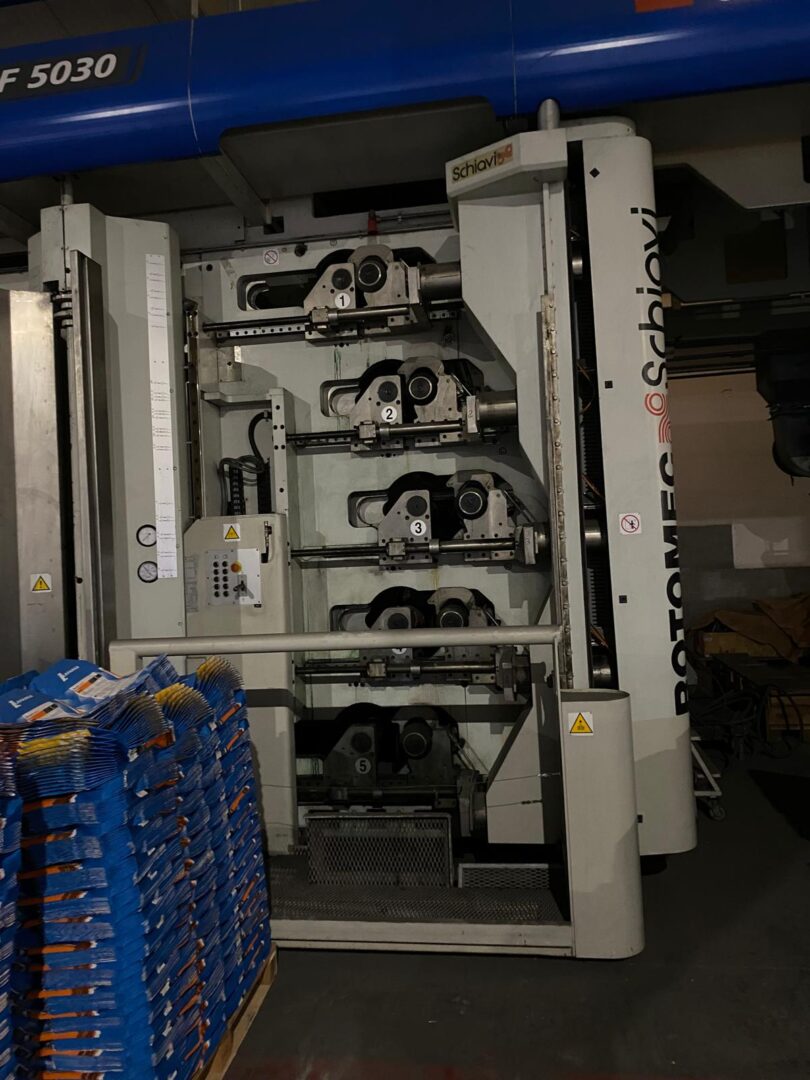

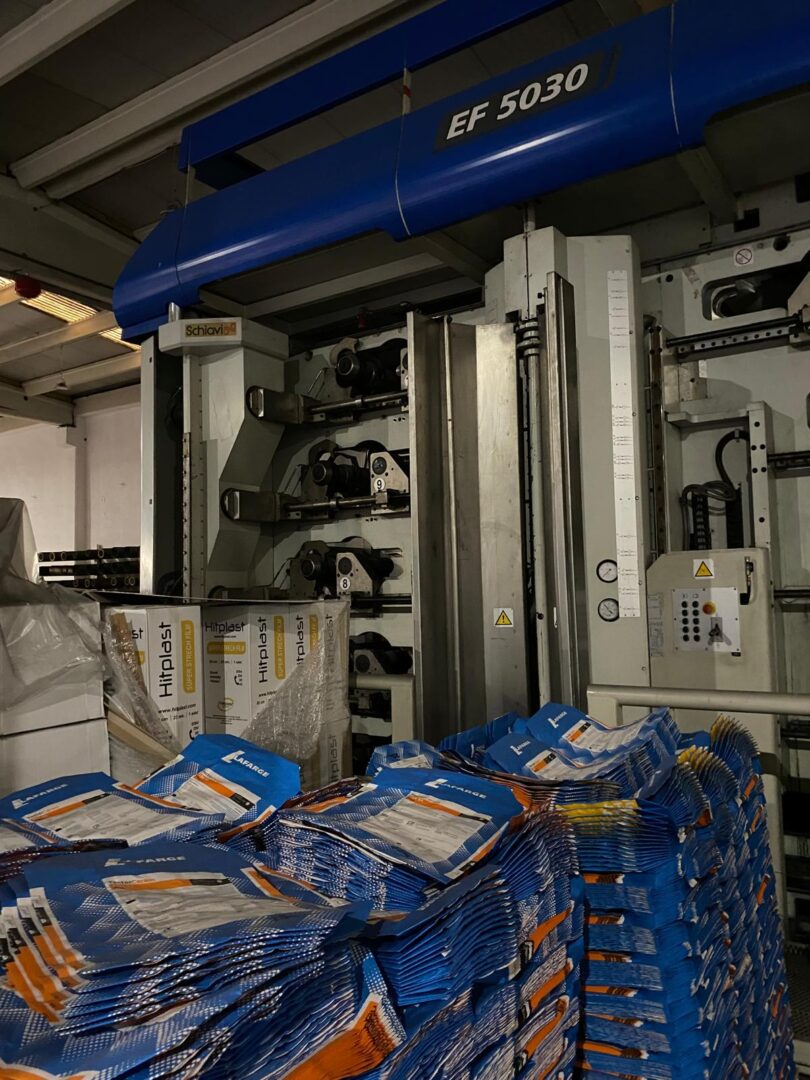

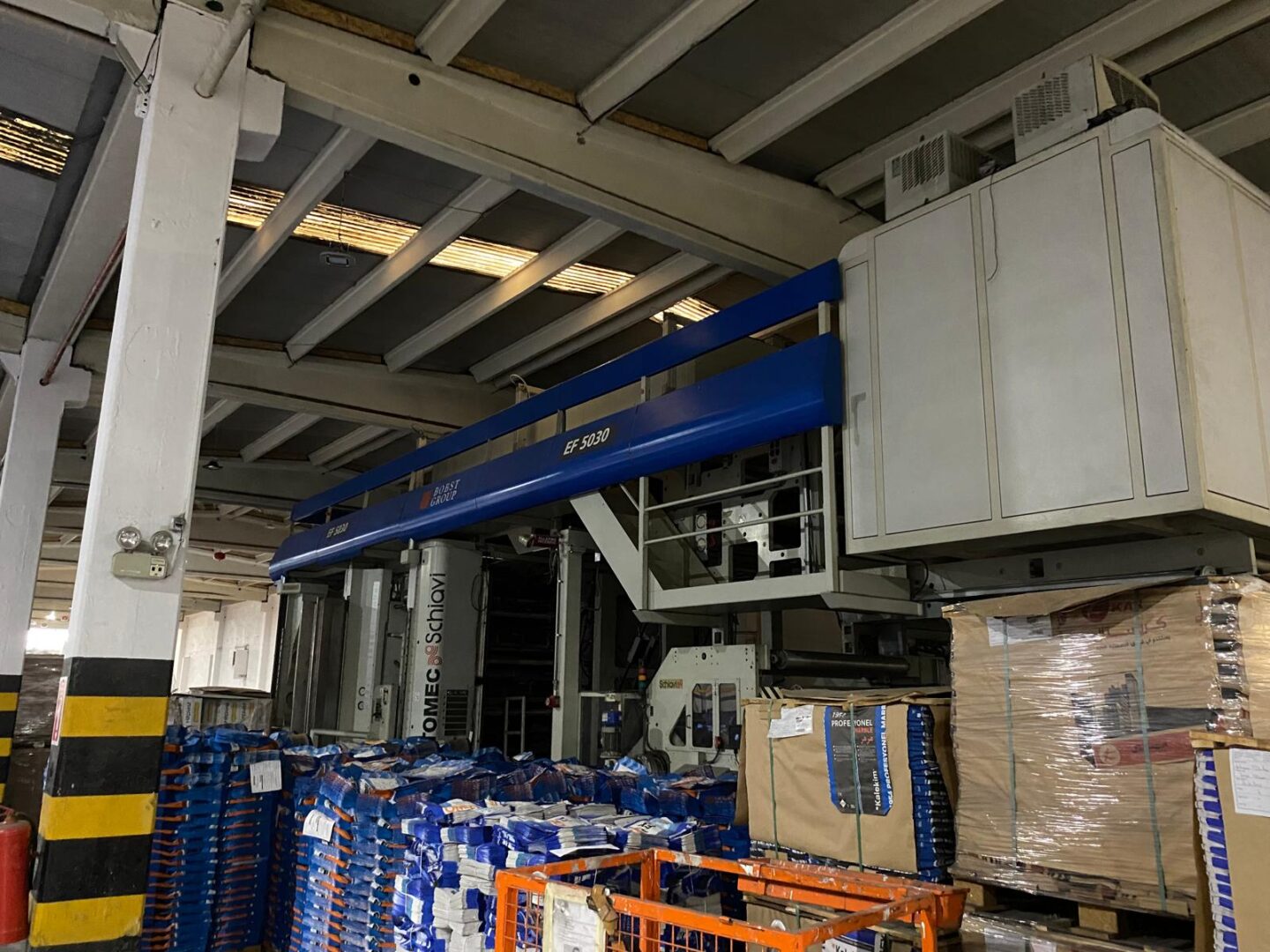

Schiavi EF 5030

ID
Categoria
PP-59344
Flessografia
Fabbricante
Schiavi
Modello
EF 5030
Anno
2005
Colori
10
Max. Formato
Condizione
Ubicazione
DisponibilitĆ
1430 mm
Buono
Europa
Immediatamente
Condividi su facebook
Condividi su twitter
Condividi su linkedin
Condividi su xing
Condividi su telegram
Condividi su whatsapp

Descrizione

  • Number of Colours: 10
  • Printing Configuration: 10+0
  • Refurbishment: Completely refurbished
  • Gearless System: Yes
  • Quick Sleeve Change: Yes
  • 4-Motor CNC Positioning System per Deck: Yes
  • Computer Control: Yes
  • Web Width: 1430 mm
  • Printing Width: 1400 mm
  • Minimum Print Repeat: 400 mm
  • Maximum Print Repeat: 1220 mm
  • Unwinder Type: Turret with flying splice
  • Maximum Unwinder Roll Diameter: 1000 mm
  • Rewinder Type: Turret with flying splice
  • Maximum Rewinder Roll Diameter: 1000 mm

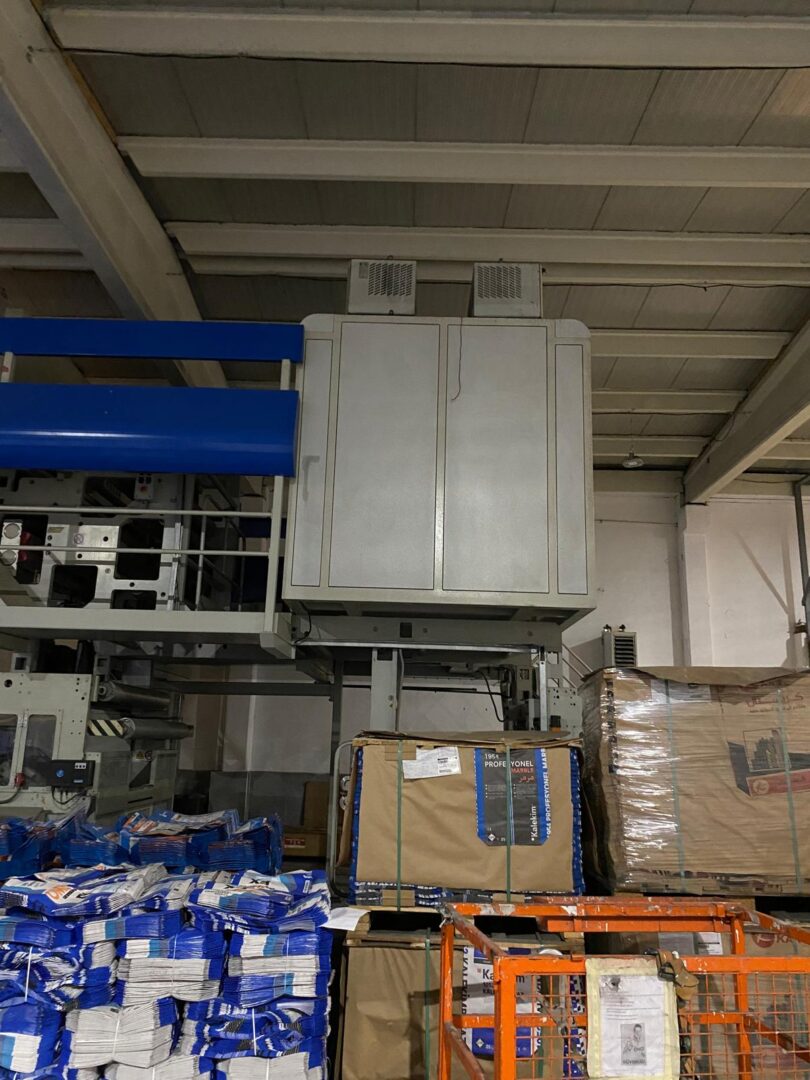

  • Drying System: 2 gas burners, 2 automatic temperature controls, Maximum air temperature: 140°C, 10 inter-colour drying boxes, Final drying tunnel: 5 m length with 12 blowing nozzles, 2 fans, 1 air inlet and 1 air outlet
  • Video Camera System: BST Super Handy Scan
  • Corona Unit: 1 x Mero Corona treatment system
  • Web Guides: Fife
  • Viscosity Control: 10 x Visco Celio VC 1550S
  • Ink System: 10 electric pumps with ink tanks
  • Anilox: 18 ceramic anilox rollers
  • Printing Sleeves: 150 pcs
  • Materials: BOPP, PET, LDPE, PA, paper
  • Maximum Speed: 500 m/min
  • Web Feeding Section: Guide rollers, OPG edge guide, nip roller, banana roller.
  • There are 160 sleeves in various sizes.

Ā

NOTE: After the machine was purchased, it could not be put into operation due to the lack of qualified technical support. The machine has been stored in our factory for more than 10 years. We are open to receiving price offers from interested buyers.
