year of construction: 2005; installed in 2006.

Number of printing units: 10
Printing possibility: 10 + 0
Printing width: 1200 mm
Material width: 1250 mm
Printing format: 340 – 800 mm
Printing speed: Up to 350 m/min
(Depending on the quality and type of material, inks used, printing format, clichés, ink coverage, and color overlap.)

• Drying system: Gas
• System: Gearless

Cliché thickness: to be specified
Anilox rollers: ceramic Apex, engraving to be specified
Inks: solvent-based and water-based
Printable material: plastic films
Reel weight range: 2 + 25 kg
Operator side: to be determined
Drive side: opposite to the operator side
Machine color: White RAL 9002
Container and console color: White RAL 9002
Frame and walkway color: Grey RAL 9007
Container legs color: Grey RAL 9007

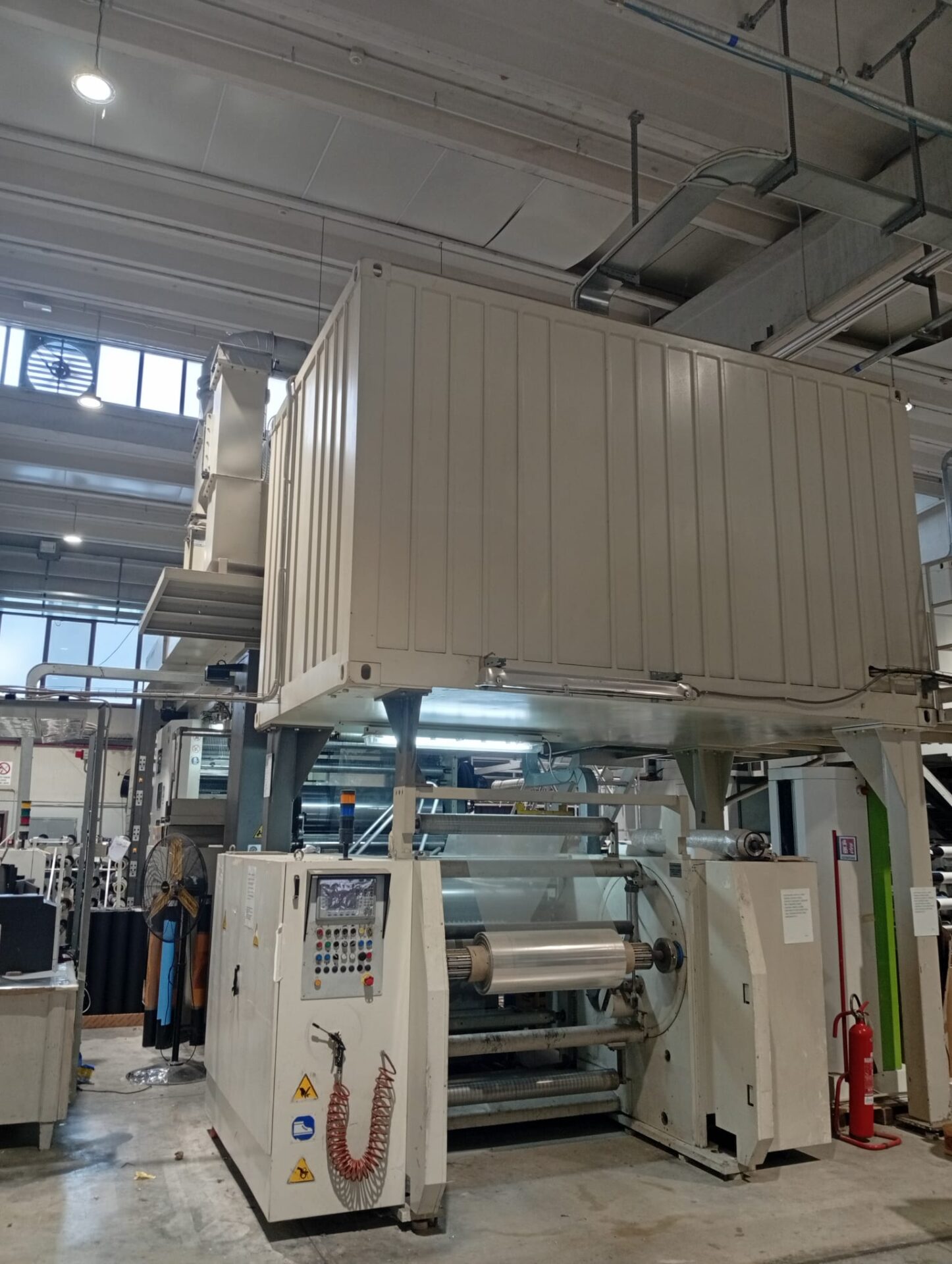

Automatic Unwinder

• Maximum roll diameter: 800 mm
• Simultaneous load: 2 rolls Ø 800 mm
• Automatic change: new roll min Ø 400 mm
• Maximum roll weight: 1000 kg (700 kg with aluminum airshafts)
• Core diameter:
  • Internal: 76 mm and 152 mm
  • External: to be specified
• Cutting blades: 1 (position to be specified)

Automatic Rewinder

• Maximum roll diameter: 800 mm
• Simultaneous load: 2 rolls Ø 800 mm
• Maximum roll weight: 1000 kg (700 kg with aluminum airshafts)
• Core diameter:
  • Internal: 76 mm and 152 mm
  • External: to be specified
• Cutting blades: 1 (position to be specified)

Additionally, for the same machine, we sell:

• n.280 sleeves
• n.27 anilox rollers
• n.32 rubberized sleeves

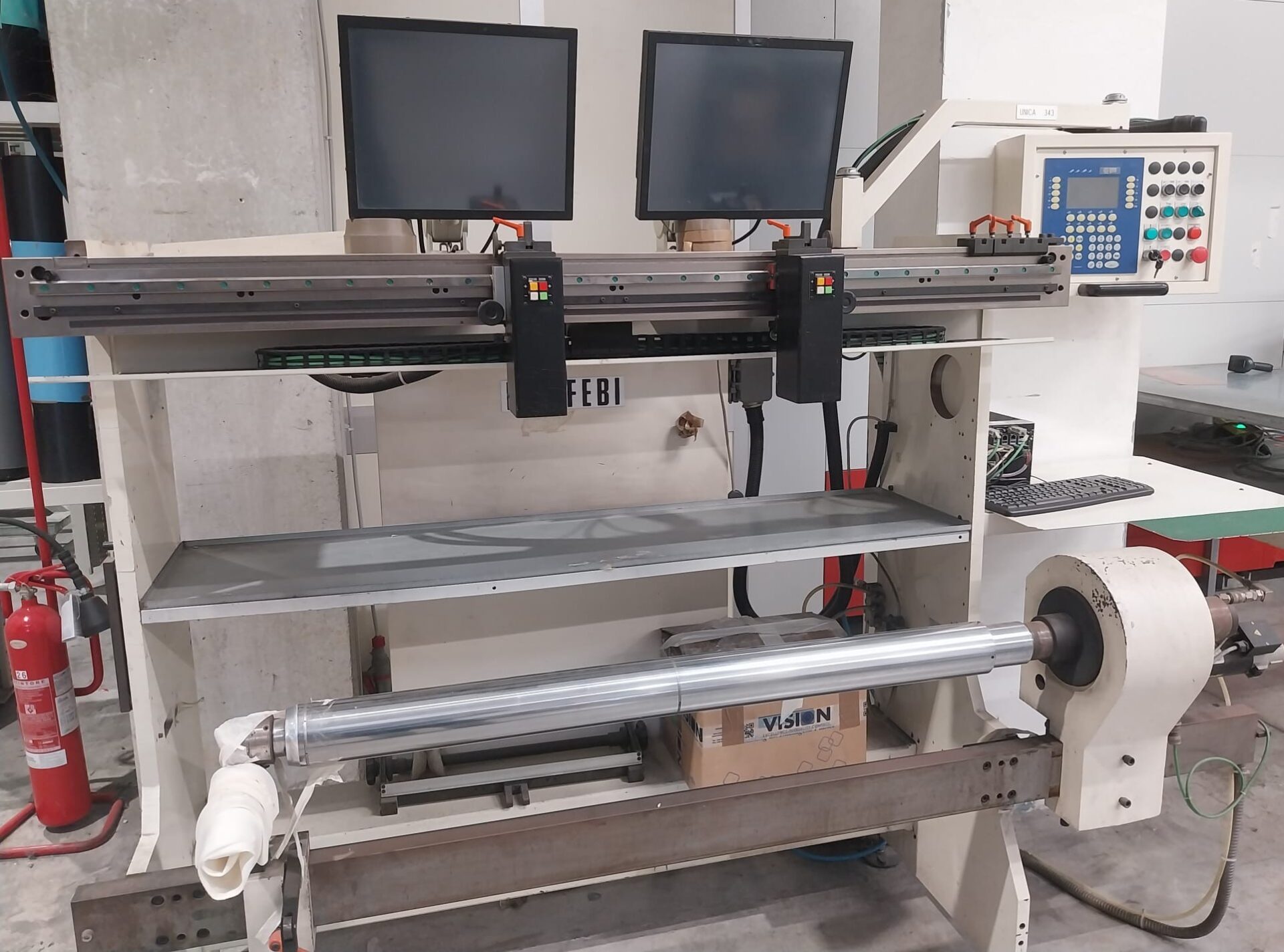

• n.1 BIEFFEBI UNICA 343 plate mounter, year 2007 with dedicated shaft for this printing machine
