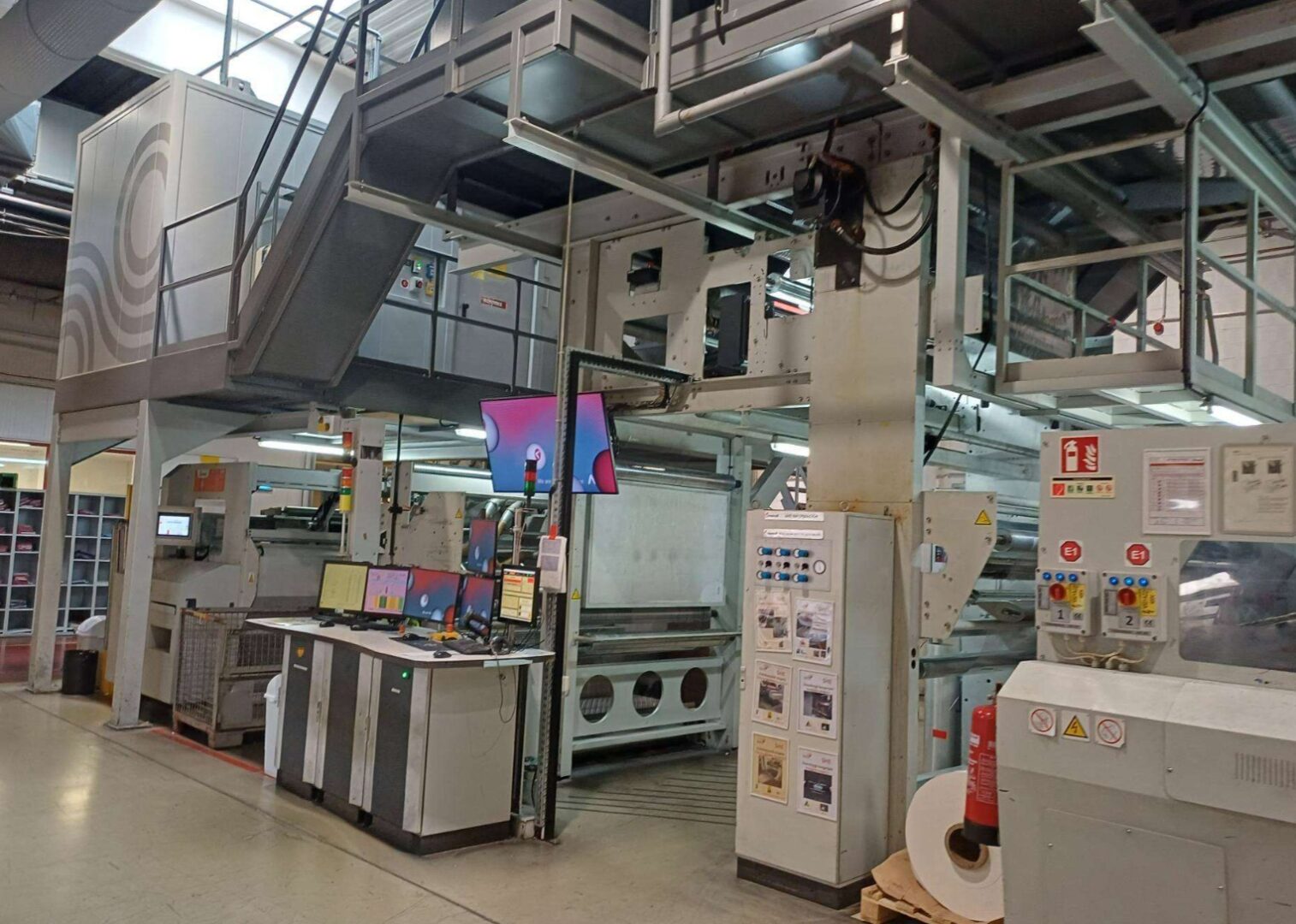

BOBST FP16-S10 10-COLOR CI FLEXOGRAPHIC PRINTING PRESS
General Information
- Manufacturer: Bobst
- Model: FP16-S10
- Year of Manufacture: 2011
- Machine Type: Central Impression (CI) Flexographic Printing Press
- Gearless Drive: Yes
- Number of Colors: 10
- Ink Type: Solvent-Based
- Machine Status: In Production
- Available From: 12 October 2026
- Latest Removal Date: 18 December 2026
Technical Specifications
- Maximum Web Width: 1,500 mm
- Maximum Printing Width: 1,450 mm
- Printing Repeat: 390 – 1,050 mm
- Maximum Mechanical Speed: 500 m/min
Suitable Materials
The machine is designed for printing on: PE, OPP, CPP, PA, PET and Paper
Material Thickness
- Minimum: 12 micron
- Maximum: 200 micron

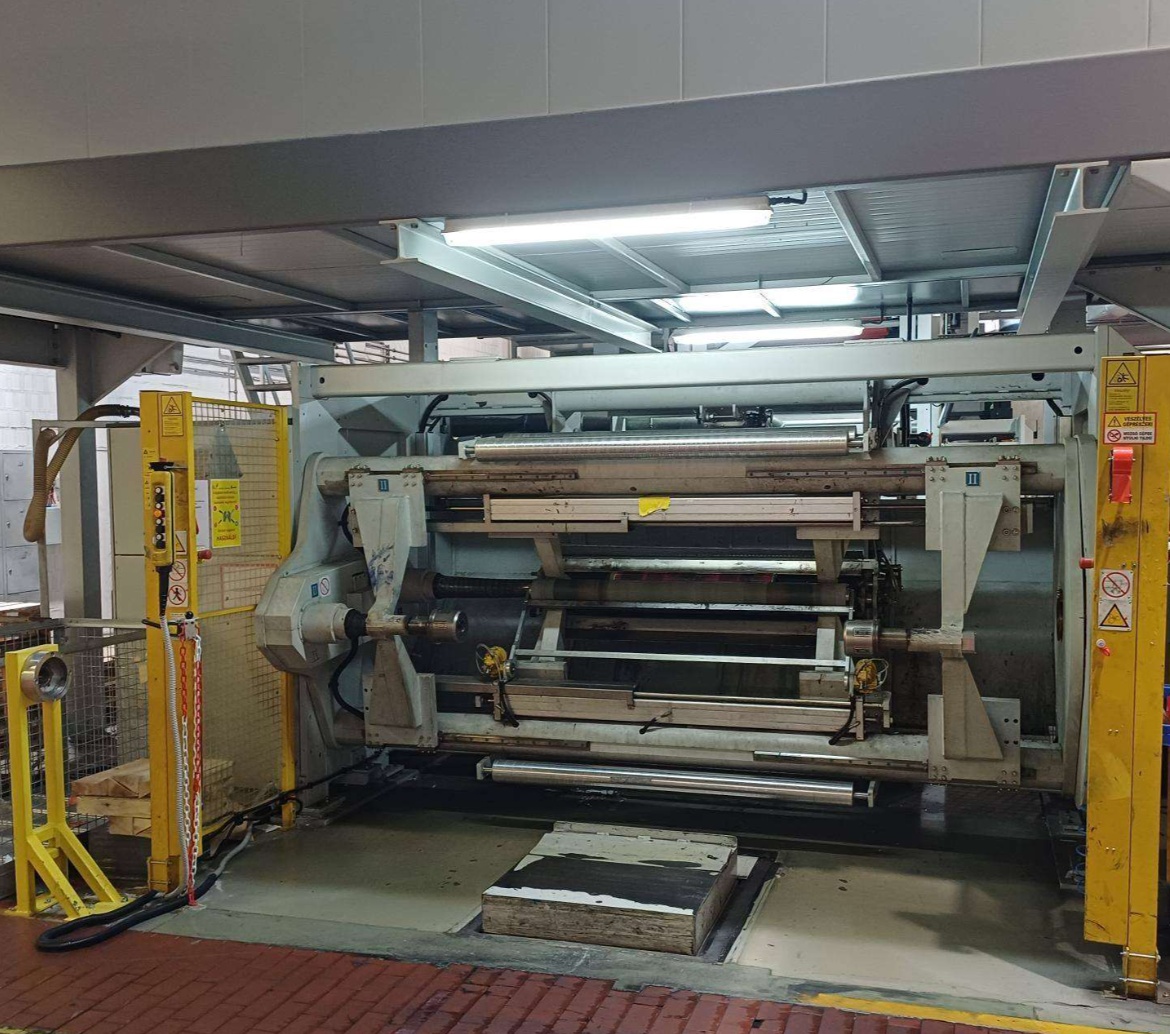

Unwinder
- Automatic Turret Unwind
- Shafted & Shaftless Operation
- Maximum Reel Diameter: 1,000 mm

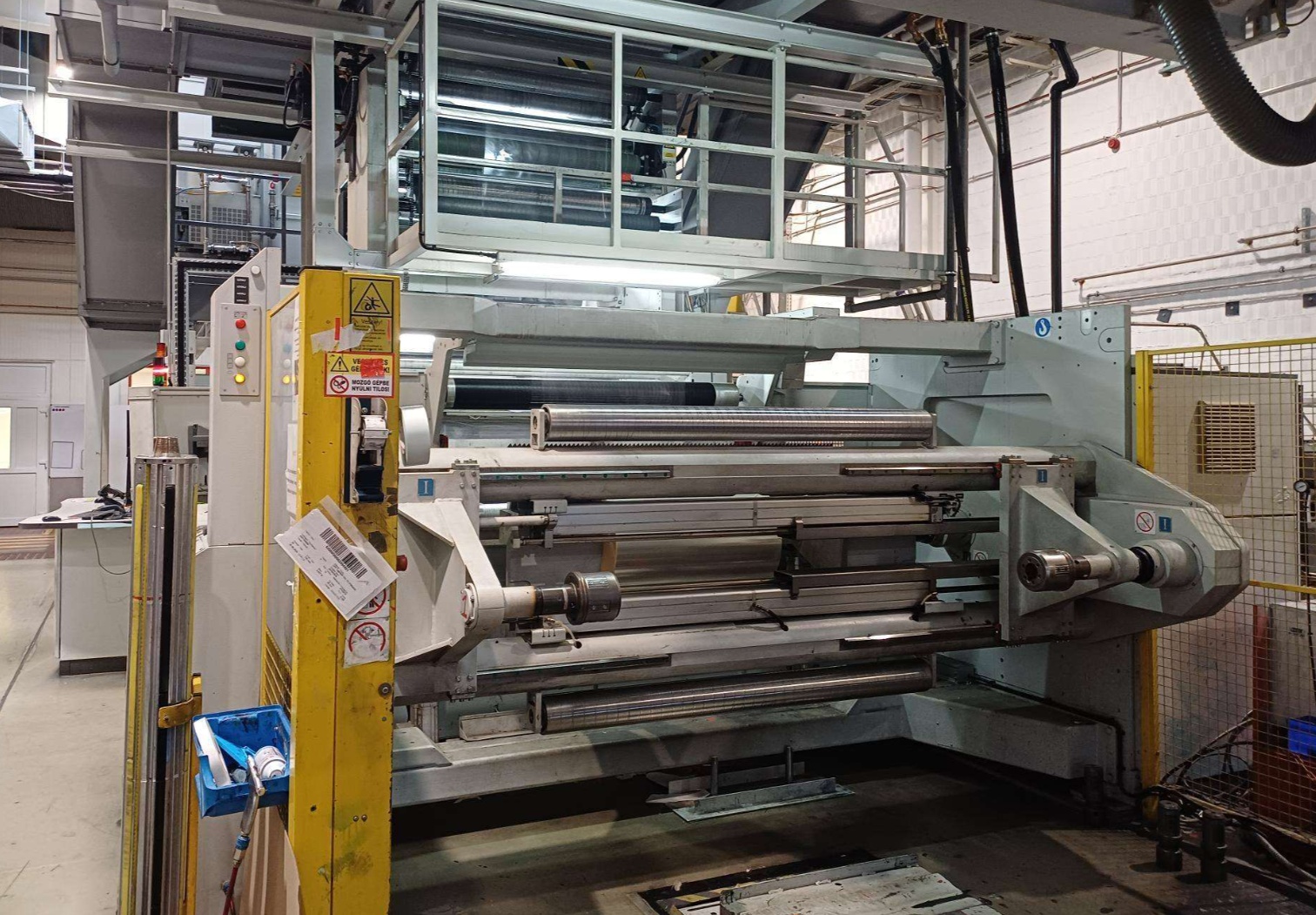

Rewinder
- Automatic Turret Rewind
- Shafted & Shaftless Operation
- Maximum Reel Diameter: 1,000 mm
- 2 Air Shafts (Ø150 mm)

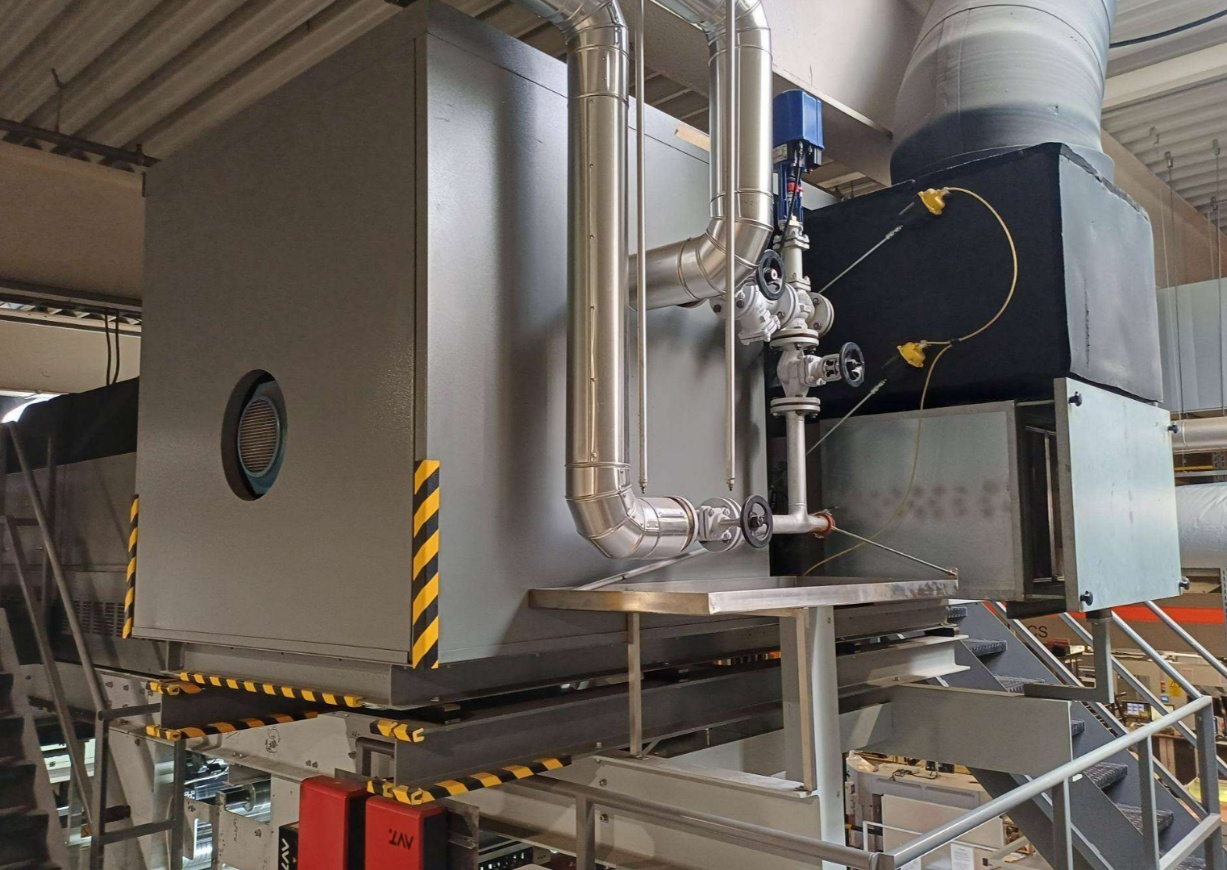

Drying System
- Thermic Oil Drying System
Machine Equipment
- Automatic Web Guide
- Video Inspection Camera
- AFS 6 kW Corona Treater
- Automatic Cleaning System
- New Celio Viscosity Control (3 Solvents)
- Medium Cut Inline Slitting
- Mounting Device Included
Included Accessories
- 40 Anilox Rollers
- 835 Printing Sleeves
- 76 Intermediate Sleeves (7 Different Sizes)
- Complete Set of Sleeves & Anilox Rollers

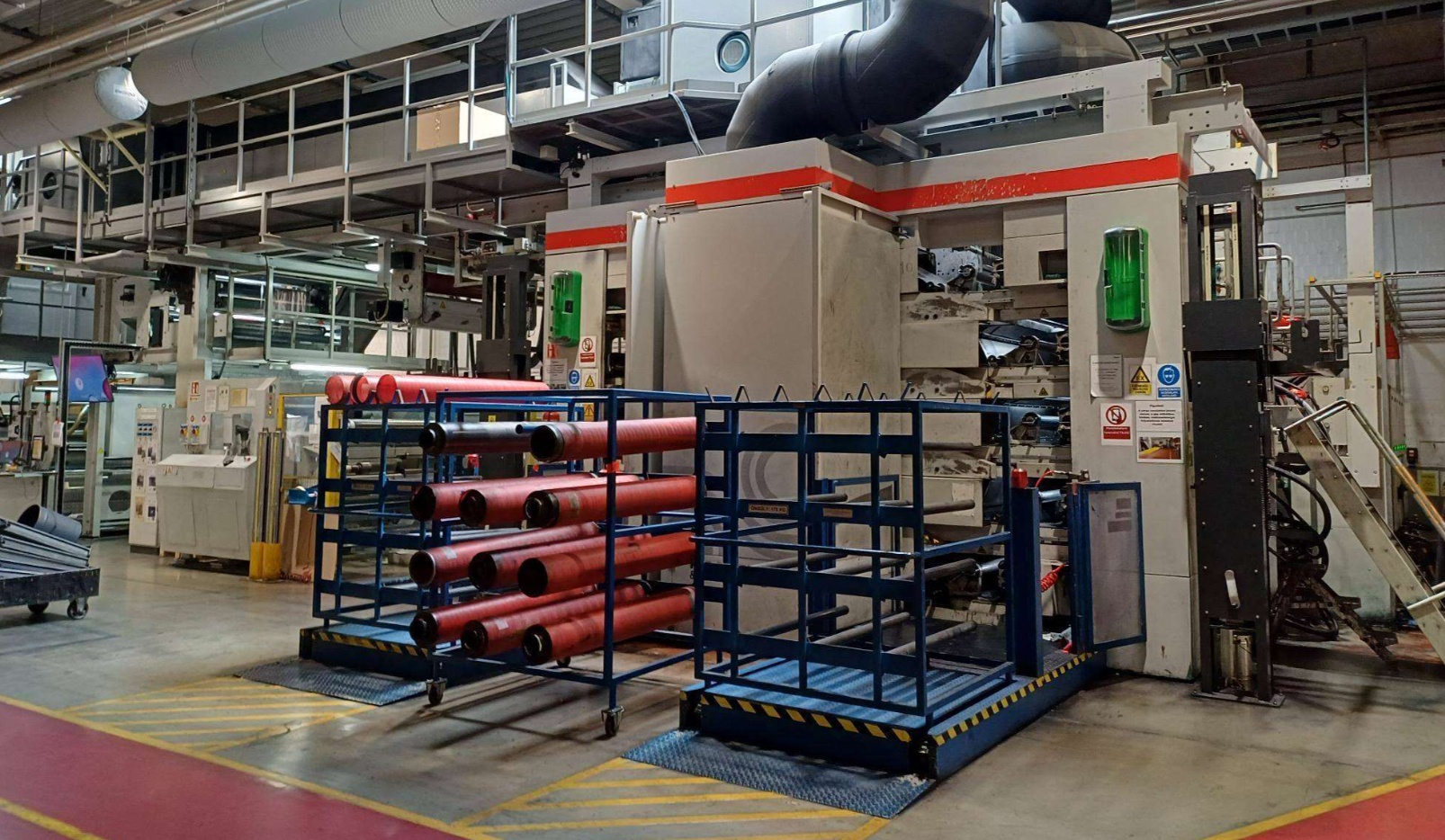

- Basic Trolleys
- High-Pressure CO₂ System
- Basic Spare Parts
- Machine Manuals
Printing Tool Inventory
Printing Sleeves
- Total Quantity: 835 pcs
- Various Repeat Sizes Available
Anilox Rollers
- Total Quantity: 40 pcs
- Multiple Screen Counts & Cell Volumes
Adapters
- 380 mm, 440 mm, 490 mm, 530 mm, 590 mm, 660 mm, 720 mm, 790 mm
Doctor Blade Chambers
Machine Highlights
- 10-Color Gearless CI Flexographic Printing Press
- Production Speed up to 500 m/min
- Solvent-Based Printing
- Automatic Turret Unwind & Rewind
- Advanced Corona Treatment System
- Automatic Cleaning System
- Camera Inspection System
- Web Slitting Before Rewinder for Separate Ups
- Large Package of Sleeves & Anilox Rollers Included
- Available for Inspection in Production
