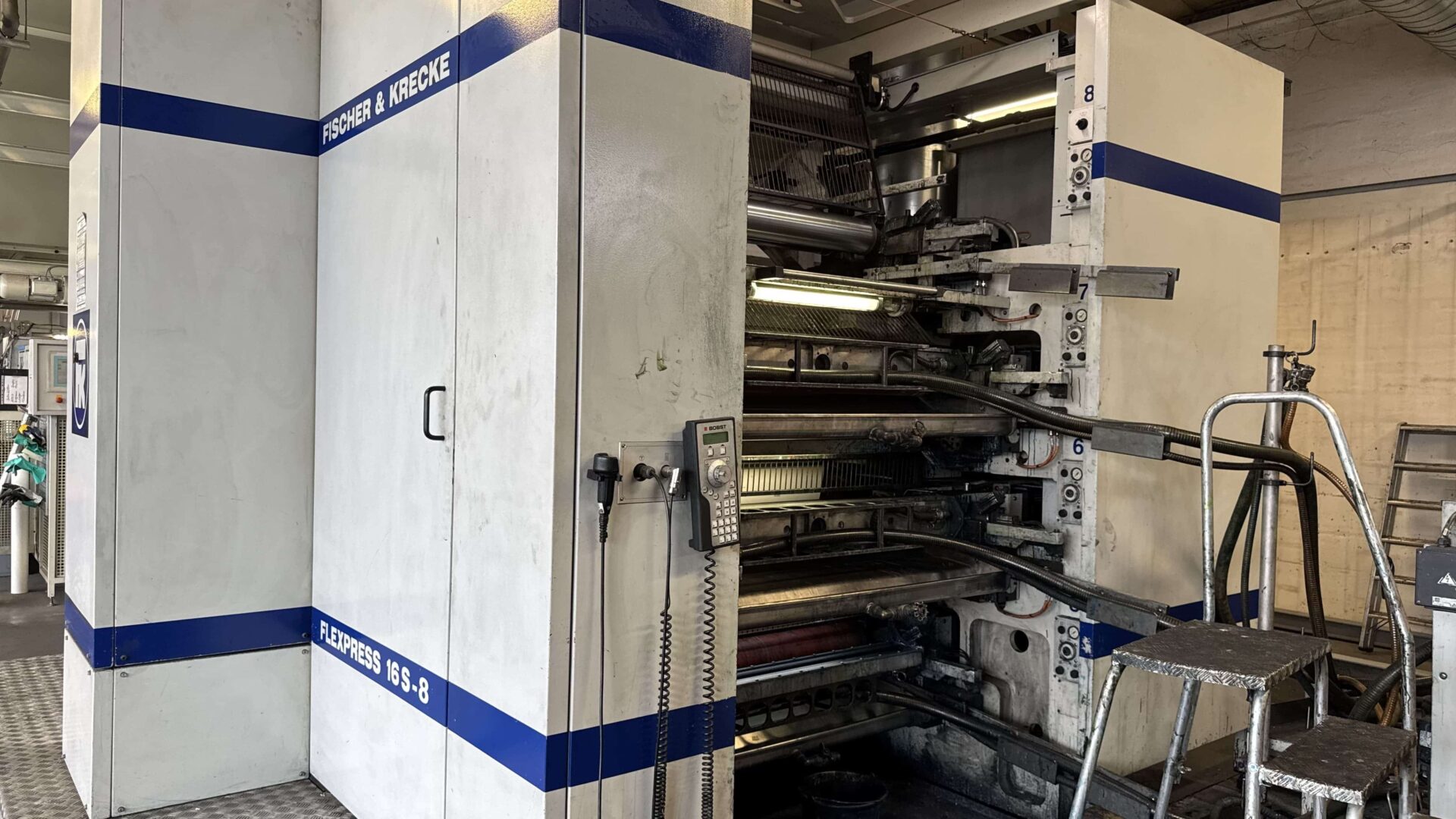

8-Color Flexo Printing Machine

TECHNICAL DATA

• Number of printing units: 8 colors
• Print width: 1,250 mm
• Material width: 650 mm, max. 1,300 mm
• Print length: 320 mm, max. 800 mm
• Mechanical performance: 460 m/min
• Roll diameter: 1,000 mm (unwinder/rewinder)
• Core equipment: 70, 76, 100, 150 mm
• Gearless

EQUIPMENT

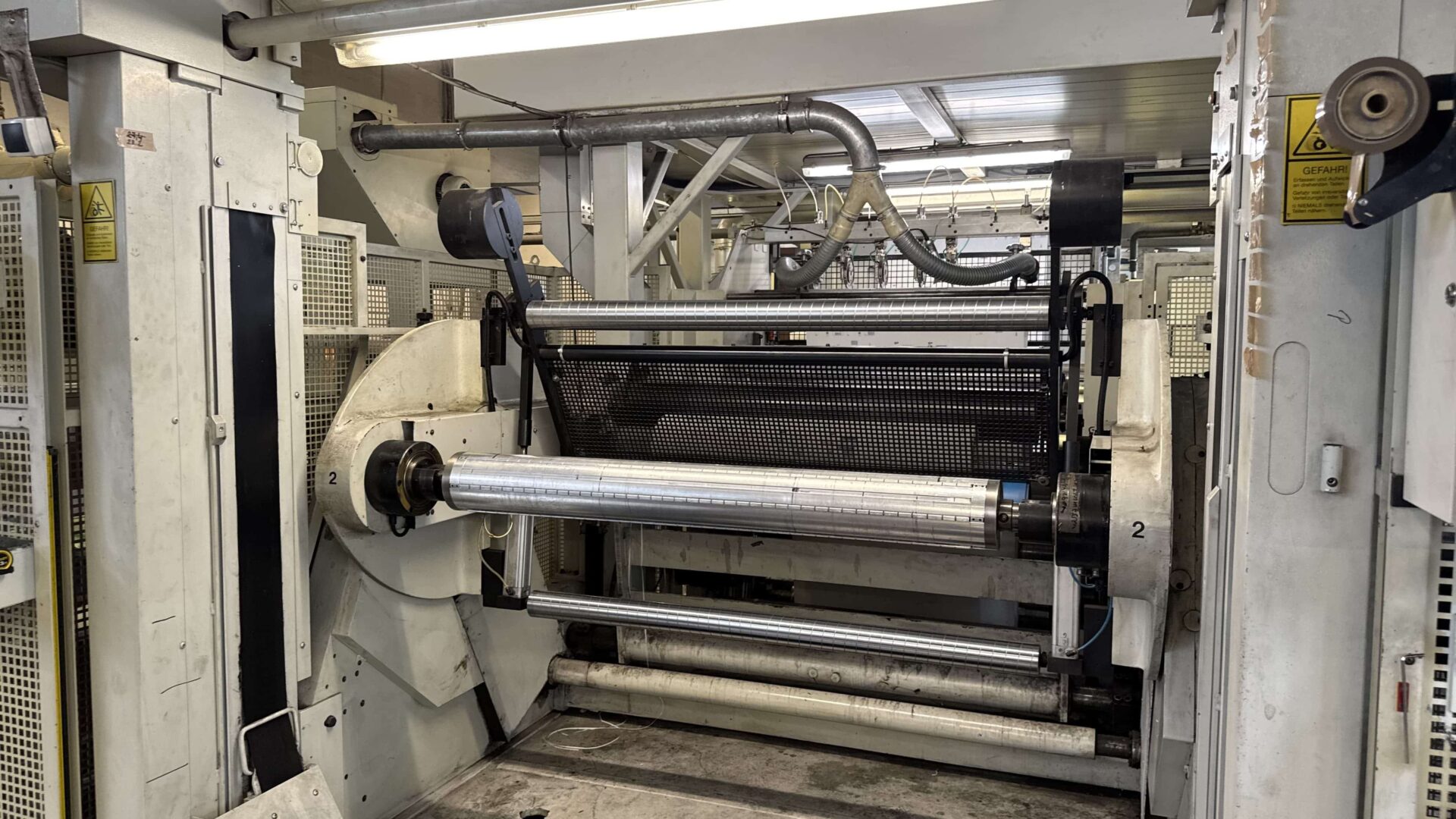

• Automatic roll change for unwinder & rewinder
• Column lifting system for shaft unwinder/rewinder

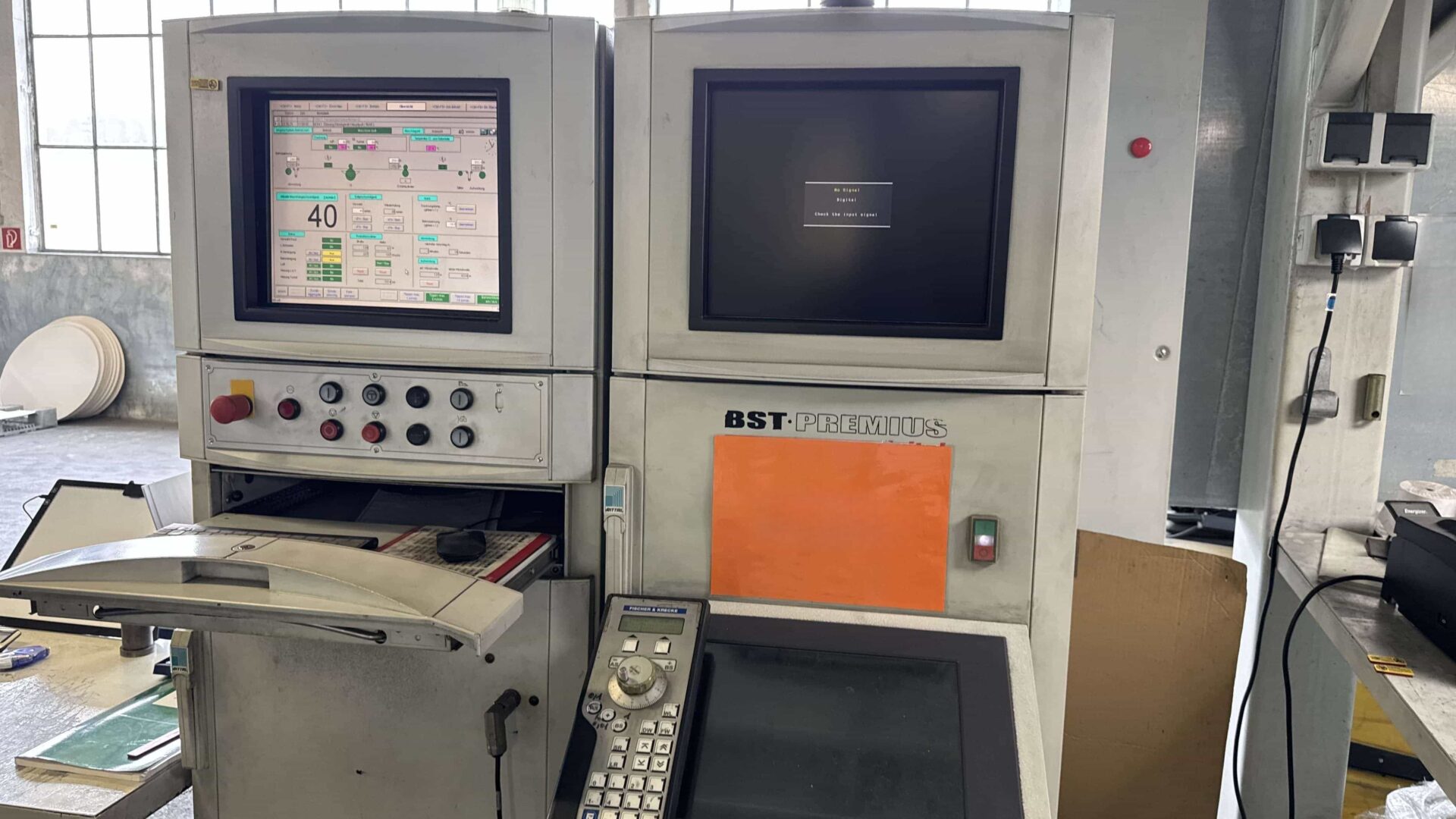

• Digital printing unit control with servo drive
• Currently printed materials: Papers with grammage 50-500 g
• Water-based inks
• Sound dampened: 85 dBA (VBG121)
• Video web inspection system with 1-chip camera
• 2 Web guides
• Drying: gas
• Corona treater: No

HIGHLIGHTS

• Compressed air cleaning system (7 bar)
• Cooling water circuit with temperature control
• Clamping shaft system also for film materials

ACCESSORIES

• Sleeves: Set for print widths from 60-1250 mm available
• Print cylinders: Set for print lengths from 440-660 mm available
• Anilox rollers; 15
• Sleeves: ca. 250
• Print cylinders: 8
• Top knives: 6
• Bottom knives: 6
• Winding shafts: 12*

STATUS

• Machine is currently in operation
