.Complete Corrugating Line

1. Working width: 2.5, as stated in the offer; the unit is not specified.
2. Operator side: LEFT. The paper-travel direction is not fully stated in the offer.
3. Expected equipment delivery: fourth quarter of 2026.
4. Supply condition: as-is, where-is.
5. Intended market: outside the European Union.

WET-END EQUIPMENT

• AGNATI S-90 SINGLE FACER #2 – 1 UNIT
• Year of manufacture: 2000.
• Updated in 2023.
• Capable of processing a wider range of papers.
• Roll cartridge change in approximately 5 minutes with one operator, without adjustments or liner re-threading.
• Compact construction to minimise space requirements.
• Integrated preheater and preconditioner with motorised “Zero-Wrap” arms for low-temperature operation and energy saving.
• Integrated steam shower.
• No hydraulic elements.
• Full access for routine cleaning and maintenance.
• Independently servo-driven, fully retractable glue application unit.
• 2023 upgrades:
• New PLC.
• New touchscreen.
• New drives for glue-gap management.
• New drives and photocells for glue-dam positioning.
• New drives for the applicator and doctor rolls.
• New blower fan replacing the pump.
• New digital DC drive.
• CE status: not CE compliant.

AGNATI S-90 SINGLE FACER #1 – 1 UNIT

• Year of manufacture: 1996.
• Updated in 2023.
• 2023 upgrades:
• New servomotor for the take-up conveyor.
• New machine frame with replaceable guides for cassette insertion.
• CE status: not CE compliant.

FLUTE CARTRIDGES – 4 UNITS

• Profiles: C, C, B and E – SRC, as listed in the offer.

MOTORISED CARTRIDGE TROLLEYS – 3 UNITS

• Motorised trolleys for handling the cartridges.

AGNATI SINGLE PREHEATERS – 3 UNITS

• Models in the detailed scope: PRR, PRR and PCR.
• The executive summary lists these as PRRS, PRRS and PCR.
• PCR: serial number 42xx, year 1997.
• PRR: serial number 6288, year 2000.
• PRR: serial number 5662, year 1997.
• CE status: not CE compliant.

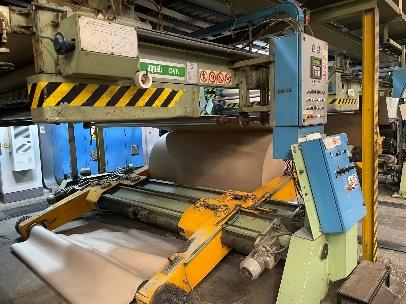

AGNATI GVR SPLICERS – 5 UNITS

• Splicer #5: serial number 6330, year 2001.
• Splicer #4: serial number 4742, year 1993; PLC and touchscreen updated in 2017.
• Splicer #3: serial number 5513, year 1996.
• Splicer #2: serial number 5514, year 1996.
• Splicer #1: serial number 5253, year 1996; touchscreen updated in 2021.
• Simple, quick splice preparation with paper grip bars.
• Splicing heads with splice bars, rubber pads and tear blades.
• Triple festoon carriage.
• A motorised capstan roll is described as optional; its inclusion is not confirmed.
• CE status: not CE compliant.

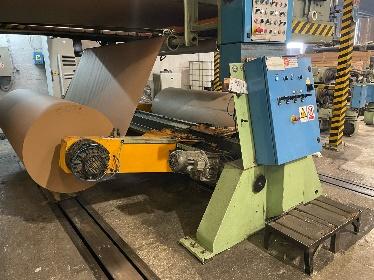

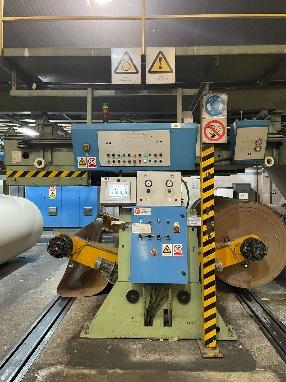

FOSSALUZZA ROLL STANDS – 4 UNITS

• Roll stand #5: serial number 02112B, year 2002.
• Roll stand #4: serial number 01117B, year 2001.
• Roll stand #3: serial number 02112A, year 2002.
• Roll stand #2: serial number 01117A, year 2001.
• CE status: not CE compliant.

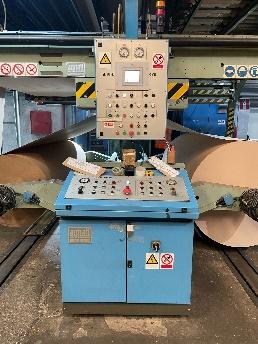

AGNATI PBB2 ROLL STAND – 1 UNIT

• Position: #1.
• Year of manufacture: 1996.
• CE status: not CE compliant.

AGNATI WEB BRAKE-ALIGNER – 1 UNIT

• Included in the scope of supply. No further specifications are provided.

AGNATI PRTR TRIPLE PREHEATER – 1 UNIT

• Year of manufacture: 1997.
• Updated in 2023.
• 2023 upgrades:
• New PLC.
• New touchscreen.
• New drives for the wrapping rolls.
• CE status: not CE compliant.

AGNATI IM-14 DOUBLE GLUE UNIT – 1 UNIT

• Year of manufacture: 1995.
• Updated in 2023.
• Micrometric pressure-roll-to-glue-roll gap adjustment: 0.9–6 mm.
• Micrometric glue-roll-to-doctor-roll gap adjustment: 0.1–0.9 mm.
• Micrometric glue-film thickness adjustment to suit the board grade.
• Pneumatic retraction of the adhesive system during machine stops, with the rolls remaining in idle rotation.
• Anilox-type glue roll.
• The complete glue mechanism is fully retractable outside the machine.
• 2023 upgrades:
• New PLC.
• New touchscreen.
• New digital drives.
• New motors for glue-gap management.
• CE status: not CE compliant.

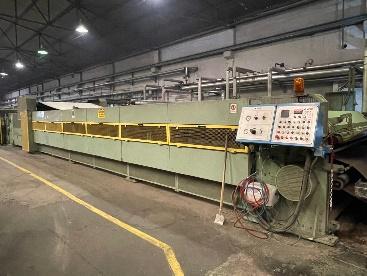

AGNATI GP-A DOUBLE BACKER – 1 UNIT

• Year of manufacture: 1997.
• Updated in 2023.
• 2023 upgrades:
• New PLC.
• New touchscreen.
• New digital drives.
• New proportional valves for the Varypress system.
• CE status: not CE compliant.

DRY-END EQUIPMENT

• AGNATI V-HRS 90 ROTARY SHEAR – 1 UNIT
• Year of manufacture: 2019.
• CE status: not CE compliant.

FOSBER TWIN 400 SLITTER-SCORER – 1 UNIT

• Year of manufacture: 2015.
• TOP-SLITTING configuration, standard body.
• 7 slitting boxes.
• Edge guide.
• 25-slat web diverter.
• Measuring wheel included.
• Trim chute width: 150 mm.
• Order-change time: 0.3 seconds with the plunge system.
• Conventional order-change speed: up to 250 m/min. This is not stated as the overall line production speed.
• GAPLESS order-change capability when operated with a Fosber “CONSTANT SYSTEM” rotary shear; this is a conditional feature, not confirmation that such a shear is included.
• Two independent slit-score stations.
• Minimum distance between scoring heads: 40 mm on each scoring shaft; the offer states no limit in tandem mode or when used with the optional Auxiliary Scoring Station.
• Slitting tools for 6-out production on each shaft, with tungsten thin blades.
• Primary-profile scoring tools for 6-out production on both scoring shafts.
• Automatic scanning system to check correct tool positioning.
• One upper robot and one lower robot for setting the scoring stations.
• One upper robot for setting the slitting heads.
• On-board cabinets to reduce wiring, noise and installation time.
• Slitting heads can be positioned above or below the board line, as described in the offer.
• One-piece slitting blades, individually disengageable from the board line.
• Blade-wear management program for uniform wear across the mounted blades.
• No blade lubrication required.
• Computerised monitoring and control of blade sharpening.
• CE status: not CE compliant.

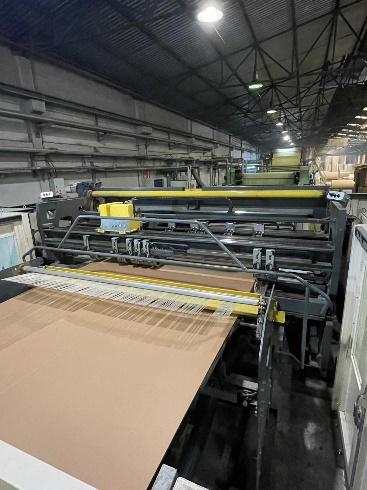

AGNATI V-TREL 90 D CUT-OFF – 1 UNIT

• Year of manufacture: 2019.
• High cutting accuracy.
• Electronic control system fully developed by Agnati.
• High power efficiency.
• Special cooling system for the brushless motors.
• Energy regeneration system.
• Designed for long-term reliability and minimum maintenance.
• CE status: not CE compliant.

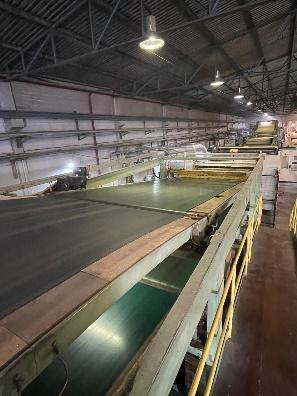

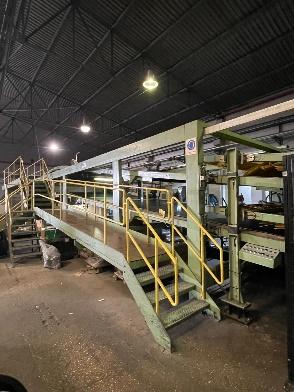

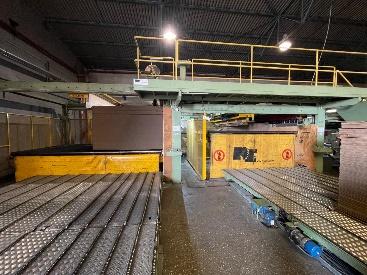

NEW ENGINEERING DOWNSTACKER – 1 UNIT

• Year of manufacture: 1996.
• CE status: not CE compliant.

FOSBER SYNCRO V3 DRY-END CONTROL SYSTEM – 1 UNIT

• Year of manufacture: 2015.
• Central operator console with one PC, a 1,200 mm flat-top console and colour monitor.
• Single-point data entry and visualisation for all dry-end machines.
• Base integrated system environment.
• Real-time production totals in sheets, linear output and area.
• Waste totals in sheets, metres and area, including rotary-shear and trim waste.
• Complete order-change control in manual, semi-automatic and automatic modes.
• GAPLESS order-change control functions, conditional on the presence of the Constant System.
• Automatic downtime recording with entry of location and reason.
• Production, shift-summary and downtime reports; report printer not included.
• Automatic line-speed control and speed synchronisation.
• Independent real-time cut-length measurement for each knife.
• Digital I/O, analogue and pulse interfaces with all dry-end machines.
• Serial or Ethernet communication with all dry-end machines.
• Standard data link and I/O interface with the wet end.
• Machine-status monitoring, alarms and diagnostics.
• Operator and engineering configuration pages.
• Standard-format pallet-label printing; actual sheet-count functionality is specified only with a Fosber stacker. Label printer not included.
• Standard communication protocols for materials-handling and scheduling systems.
• Modular architecture using internationally available hardware and software standards.
• Remote modem support facility.
• Local Ethernet hubs/switches, described in the offer as “100 MHz”, with internal system cables.
• Activated host-scheduling interface using Fosber’s SYNCRO standard TCP/IP protocol.
• Expandable to full wet-end control for an integrated corrugator control system.
• For interfaces with non-Fosber systems, the customer must provide Fosber with the communication-protocol documentation in English.
• The offer states that Fosber will provide the SYNCRO communication protocol for the host planning system.

FOSBER REMOTE-ASSISTANCE MODEM – 1 UNIT

• Year of manufacture: 2015.
• Dedicated laptop PC with preloaded software enabling remote access by Fosber, described in the offer as 24 hours a day, seven days a week.
• Individual remote access to all Fosber machines within the corrugator line.
• Connection via modem or internet/VPN.
• The offer identifies certain CISCO, NORTEL NETWORKS, NET SCREEN and CHECK POINT systems as compatible, subject to Fosber’s INSMOD specification.
• The statement concerning requirements for other system interfaces is incomplete in the source document.

The machinery is intended for a market outside the European Union.
